MAG 8000 CT for revenue and bulk metering (7ME6820) производства Siemens

MI-001, OIML R 49/OIML R49 MAA
Measurement in both directions
Bury meters, IP 68
Long-term stability/accuracy
No moving parts - no maintenance
Insignificant pressure drop
Connectable to most common AMR systems
Low flow measurement

Meter
Accuracy (standard calibration)	OIML R 49 for DN 50 … DN 300 (2" … 12"), Class I and II with turn down up to Q3/Q1 = 400 at Q2/Q1 = 1.6
Accuracy (standard calibration)	MI-001 verification for DN 50 … DN 400 (2" … 16"), Class II with turn down ratio Q3/Q1 = 250, Q3/Q1 = 200 or Q3/Q1 = 160 at Q2/Q1 = 1.6
Media conductivity	Clean water > 20 μs/cm
Temperature
Ambient	-20 … +60 °C (-4 … +140 °F)
Media	0.1 … 50 °C (32 … 122 °F)
Storage	-40 … +70 °C (-22 … +158 °F)
Enclosure rating	IP68/NEMA 6P;
	Cable glands mounted requires Sylgard potting kit to remain IP68/NEMA 6P, otherwise IP67/NEMA 4 is obtained;
	Factory-mounted cable provides IP68/NEMA 6P.
Certificates and approvals
Calibration	2 x 25 % and 2 x 90 %
Drinking water approvals	NSF/ANSI Standard 61 (cold water) USA
	WRAS (BS 6920 cold water) UK
	ACS Listed France
	DVGW W270 Germany
	Belgaqua (B)
	MCERTS (GB)
Custody transfer approval	OIML R 49 and OIML R 49 MAA approval (DN 50 ... DN 300 (2" ... 12"))
Custody transfer approval	MI-001 approval (DN 50 ... DN 400 (2" ... 16")) (Number: DK-0200-MI-001-002 and DK-0200-MI-001-011)
Conformity	CEN EN 14154, ISO 4064
	PED: 97/23/EC¹⁾
	For pressure/temperature curves see MAG 3100 on page 4/xx
	EMC: IEC/EN 61000-6-3, IEC/EN 61000-6-2
Sensor version	DN 50 … 600 (2" … 24")
Measuring principle	Electromagnetic induction
Excitation frequency
Basic version
Battery-powered	DN 50 … 150 (2” … 6”): 1/15 Hz
Battery-powered	DN 200 … 600 (8” … 24”): 1/30 Hz
Mains-powered	DN 50 … 150 (2” … 6”): 6.25 Hz
Mains-powered	DN 200 … 600 (8” … 24”): 3.125 Hz
Advanced version
Battery-powered	DN 50 … 150 (2” … 6”): 1/15 Hz (adjustable up to 6.25 Hz; reduced battery lifetime)
Battery-powered	DN 200 … 600 (8” … 24”): 1/30 Hz (adjustable up to 3.125 Hz; reduced battery lifetime)
Mains-powered	DN 50 … 150 (2” … 6”): 6.25 Hz
Mains-powered	DN 200 … 600 (8” … 24”): 3.125 Hz
Flanges
EN 1092-1 (DIN 2501)	DN 50 … 150 (2" … 6"): PN 16 (232 psi)
EN 1092-1 (DIN 2501)	DN 200 … 300 (8" … 12"): PN 10 or PN 16 (145 psi or 232 psi) up to DN 600 (24”) in preparation
ANSI 16.5 Class 150	2" … 12": 20 bar (290 psi) up to DN 600 (24”) in preparation
AWWA C-207	28" … 48": PN 10 (145 psi)
AS 4087	DN 50 … 300 (2" … 12"): PN 16 (232 psi) up to DN 600 (24") in preparation
Liner	EPDM
Electrode and grounding electrodes	Hastelloy C276/2.4819
Grounding straps	Grounding straps are premounted from the factory on each side of the sensor.

¹⁾For further information on PED standard and requirements see page 10/xx.

MAG 8000 CT (Revenue program) water meter type approval

MAG 8000 CT program is type approved and verified according to international water meter standard OIML R 49. The Custody Transfer program is approved as Class I and Class II, for the sensor program from DN 50 to DN 300, at different Q3 and Q3/Q1. Q2/Q1 = 1.6 and follows OIML R 49 specification.

OIML R 49 approval specification for Class I (1 %) ¹⁾

Size	50 (2")	65 (2½")	80 (3")	100 (4")	125 (5")	150 (6")	200 (8")	250 (10")	300 (12")
„R“ Q3/Q1	250	250	250	250	250	250	250	250	160
Q4 [m³/h]	78.75	125	200	312.5	500	787.5	1250	2000	2000
Q3 [m³/h]	63	100	160	250	400	630	1000	1600	1600
Q2 [m³/h]	0.40	0.64	1.00	1.60	2.50	4.00	6.40	10.0	16.0
Q1 [m³/h]	0.25	0.40	0.63	1.00	1.60	2.50	4.00	6.40	10.0

OIML R 49 approval specification for Class II (2 %) ¹⁾

Size	50 (2")	65 (2½")	80 (3")	100 (4")	125 (5")	150 (6")	200 (8")	250 (10")	300 (12")
„R“ Q3/Q1	400	400	400	400	400	400	400	400	250
Q4 [m³/h]	78.75	125	200	312.5	500	787.5	1250	2000	2000
Q3 [m³/h]	63	100	160	250	400	630	1000	1600	1600
Q2 [m³/h]	0.25	0.40	0.63	1.00	1.60	2.50	4.00	6.40	10.0
Q1 [m³/h]	0.16	0.25	0.40	0.63	1.00	1.60	2.50	4.00	6.40

¹⁾ The product will be delivered according to requested specifications, which may deviate from the specifications of the approval frame described in tables below.

MAG 8000 CT (Revenue program) MI-001

MAG 8000 CT program is type approved according to international water meter standard OIML R 49. Since the first November 2006 the MI-001 water meter directive is in force, which means that all water meters can be sold across the EU borders if the water meters contain a MI-001 label.

The MAG 8000 CT MI-001 verified and labeled products are a Class II aproval according to Directive 2004/22/EC of the European Parliament and Council of March 31, 2004 on measuring instruments (MID), Annex MI-001 in the sizes from DN 50 to DN 400.

The MID certification is obtained as a B + D module approval according to the above mentioned directive.

Module B: Type approval according to OIML R 49

Module D: Quality insurance approval of production

Verified and labeled products at a given Q3 and Q3/Q4 = 1.25 and Q2/Q1 = 1.6 measuring ranges see below table:

7ME6820-xxx1	DN 50 (2“)	DN 65 (2½“)	DN 80 (3“)	DN 100 (4“)	DN 125 (5“)	DN 150 (6“)	DN 200 (8“)	DN 250 (10“)	DN 300 (12“)	DN 350 (14“)	DN 400 (16“)
„R“ Q3/Q1	25	25	25	25	25	25	25	25	25	25	25
Q4 [m³/h]	20	31.25	50	78.75	125	200	312.5	500	750	1250	1250
Q3 [m³/h]	16	25	40	63	100	160	250	400	630	1000	1000
Q2 [m³/h]	0.96	1.60	2.60	4.03	6.40	10.24	16.00	25.60	38.4	64.0	64.0
Q1 [m³/h]	0.60	1.00	1.60	2.52	4.00	6.40	10.00	16.00	24.0	40.0	40.0

7ME6820-xxx2	DN 50 (2“)	DN 65 (2½“)	DN 80 (3“)	DN 100 (4“)	DN 125 (5“)	DN 150 (6“)	DN 200 (8“)	DN 250 (10“)	DN 300 (12“)	DN 350 (14“)	DN 400 (16“)
„R“ Q3/Q1	63	63	63	63	63	63	63	63	63	63	63
Q4 [m³/h]	20	31.25	50	78.75	125	200	312.5	500	750	1250	1250
Q3 [m³/h]	16	25	40	63	100	160	250	400	630	1000	1000
Q2 [m³/h]	0.41	0.63	1.02	1.60	2.54	4.06	6.35	10.16	16.00	25.4	25.4
Q1 [m³/h]	0.25	0.40	0.63	1.00	1.59	2.54	3.97	6.35	10.00	15.9	15.9

7ME6820-xxx3	DN 50 (2“)	DN 65 (2½“)	DN 80 (3“)	DN 100 (4“)	DN 125 (5“)	DN 150 (6“)	DN 200 (8“)	DN 250 (10“)	DN 300 (12“)	DN 350 (14“)	DN 400 (16“)
„R“ Q3/Q1	80	80	80	80	80	80	80	80	80	80	80
Q4 [m³/h]	20	31.25	50	78.75	125	200	312.5	500	750	1250	1250
Q3 [m³/h]	16	25	40	63	100	160	250	400	630	1000	1000
Q2 [m³/h]	0.32	0.50	0.80	1.20	2.00	3.20	5.00	8.00	12.6	20.0	20.0
Q1 [m³/h]	0.20	0.31	0.50	0.75	1.25	2.00	3.13	5.00	7.88	12.5	12.5

7ME6820-xxx4	DN 50 (2“)	DN 65 (2½“)	DN 80 (3“)	DN 100 (4“)	DN 125 (5“)	DN 150 (6“)	DN 200 (8“)	DN 250 (10“)	DN 300 (12“)	DN 350 (14“)	DN 400 (16“)
„R“ Q3/Q1	160	160	160	160	160	160	160	160	160	160	160
Q4 [m³/h]	50	78.75	125	200	312.5	500	787.5	1250	2000	2000	2000
Q3 [m³/h]	40	63	100	160	250	400	630	1000	1600	1600	1600
Q2 [m³/h]	0.40	0.63	1.00	1.60	2.50	4.00	6.30	10.00	16.00	16.00	16.00
Q1 [m³/h]	0.25	0.39	0.63	1.00	1.56	2.50	3.94	6.25	10.00	10.00	10.00

7ME6820-xxx5	DN 50 (2“)	DN 65 (2½“)	DN 80 (3“)	DN 100 (4“)	DN 125 (5“)	DN 150 (6“)	DN 200 (8“)	DN 250 (10“)	DN 300 (12“)	DN 350 (14“)	DN 400 (16“)
„R“ Q3/Q1	200	200	200	200	200	200	200	200	200	200	-
Q4 [m³/h]	50	78.75	125	200	312.5	500	787.5	1250	2000	2000	-
Q3 [m³/h]	40	63	100	160	250	400	630	1000	1600	1600	-
Q2 [m³/h]	0.32	0.50	0.80	1.28	2.00	3.20	5.04	8.00	12.80	12.80	-
Q1 [m³/h]	0.20	0.32	0.50	0.80	1.25	2.00	3.15	5.00	8.00	8.00	-

7ME6820-xxx6	DN 50 (2“)	DN 65 (2½“)	DN 80 (3“)	DN 100 (4“)	DN 125 (5“)	DN 150 (6“)	DN 200 (8“)	DN 250 (10“)	DN 300 (12“)	DN 350 (14“)	DN 400 (16“)
„R“ Q3/Q1	250	250	250	250	250	250	250	250	250	-	-
Q4 [m³/h]	50	78.75	125	200	312.5	500	787.5	1250	2000	-	-
Q3 [m³/h]	40	63	100	160	250	400	630	1000	1600	-	-
Q2 [m³/h]	0.26	0.40	0.64	1.02	1.60	2.56	4.00	6.40	10.24	-	-
Q1 [m³/h]	0.16	0.25	0.40	0.64	1.00	1.60	2.52	4.00	6.40	-	-

The Label is placed on the side of the encapsulation.

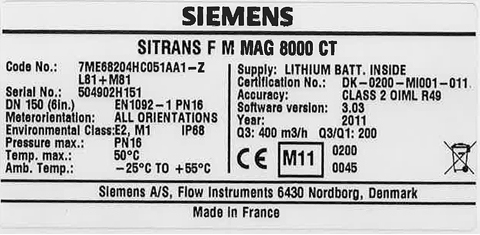

An example of the product label is shown below:

Installation conditions

Please refer to “System information SITRANS F M electromagnetic flowmeters”.

Battery operation time and calculation

The battery operation time depends on the connected battery pack as well as the operation condition of the meter.

MAG 8000 calculates the remaining capacity every 4 hours and includes all consuming elements. Calculation compensates for temperature influence on battery capacity (drawing).
