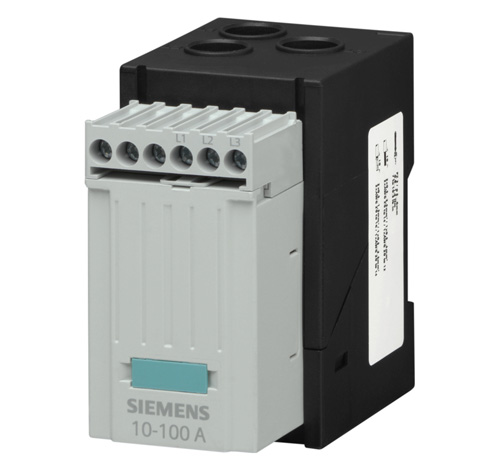

Current/voltage measuring module UM производства Siemens

Mounting

• 6BK1700-3BA60-0AA0,
  6BK1700-3BA70-0AA0

Snap-mounting on a TH 35 DIN rail compliant with IEC 60715 or screw-mounted with additional push-in lugs

• 6BK1700-3BA80-0AA0

Snap-mounted to a TH 35 DIN rail compliant with IEC 60715, screw-mounted on a mounting plate, or mounted directly on the contactor

System interfaces

The current/voltage measuring module UM has interfaces for the following system modules:

• Basic device
• Expansion modules (digital module DM, temperature module TM, current measuring module IM, decoupling module DCM)

Main circuit

Measuring range current/current setting I_e

• 6BK1700-3BA60-0AA0

2.4 to 25 A

• 6BK1700-3BA70-0AA0

10 to 100 A

• 6BK1700-3BA80-0AA0

20 to 200 A

Rated insulation voltage U_i at pollution degree 3

• 6BK1700-3BA60-0AA0,
  6BK1700-3BA70-0AA0

690 V

• 6BK1700-3BA80-0AA0

1 000 V

Rated operating voltage U_e

690 V

Rated impulse withstand voltage U_imp

• 6BK1700-3BA60-0AA0,
  6BK1700-3BA70-0AA0

6 kV

• 6BK1700-3BA80-0AA0

8 kV

Rated frequency

50/60 Hz

Type of current

• Three-phase (grounded without decoupling module DCM, otherwise with decoupling module DCM)
• 1-phase AC (with decoupling module DCM)

Short-circuit protection

Additional short-circuit protection is required in the main circuit

Current measuring accuracy

Within the measuring range ± 3%

Typical voltage measuring range

• Phase-to-phase/line-to-ground voltage

110 V to 690 V (only the phase voltages are available to the system as measured values)

• Phase voltage

65 to 400 V

Voltage measuring accuracy in the range from 230 V to 400 V

Typically ± 3%

Voltage measurement in ungrounded systems or in systems with integrated insulation measurement or insulation monitoring

The current measuring module IM or the current/voltage measuring module UM can only be used in these systems in conjunction with a decoupling module DCM.

Supply lines for voltage measurement

Additional protection may need to be provided in the supply lines for voltage measurement.

Feed-through opening

Opening diameter

• 6BK1700-3BA60-0AA0: 7.5 mm
• 6BK1700-3BA70-0AA0: 14.0 mm
• 6BK1700-3BA80-0AA0: 25.0 mm
