Current measuring module IM производства Siemens

Current measuring module IM

The IM current measuring module measures the load currents of the heating or cooling devices, and delivers the values to the basic unit. The module must be selected according to the expected maximum current of all connected loads.

There are three different versions:

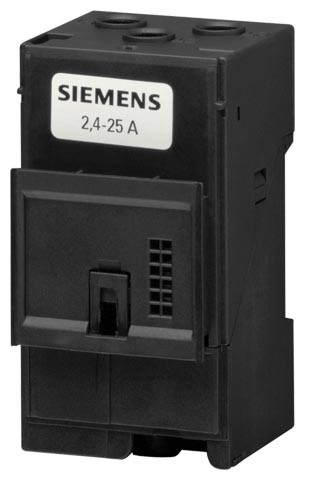

  • 2.4 A to 25 A current measuring module
  • 10 A to 100 A current measuring module
  • 20 A to 200 A current measuring module
  • Current measurement on a feeder
  • Current ranges between 2.4 A and 200 A


Enclosure



Mounting



  • 6BK1700-3BA30-0AA0,
    6BK1700-3BA40-0AA0

Snap-mounting on a TH 35 DIN rail compliant with IEC 60715 or screw-mounted with additional push-in lugs

  • 6BK1700-3BA50-0AA0:

Snap-mounted to a TH 35 DIN rail compliant with IEC 60715, screw-mounted on a mounting plate, or mounted directly on the contactor

System interfaces



The current measuring module IM has interfaces for the following system modules:

  • Basic device
  • Expansion modules (digital module DM, temperature module TM, current/voltage measuring module UM, decoupling module DCM)

Main circuit

Measuring range current/current setting Ie



  • 6BK1700-3BA30-0AA0

2.4 to 25 A

  • 6BK1700-3BA40-0AA0

10 to 100 A

  • 6BK1700-3BA50-0AA0

20 to 200 A

Rated insulation voltage Ui at pollution degree 3



  • 6BK1700-3BA30-0AA0,
    6BK1700-3BA40-0AA0

690 V

  • 6BK1700-3BA50-0AA0

1 000 V

Rated frequency

50/60 Hz

Type of current

  • Three-phase (grounded without decoupling module DCM, otherwise with decoupling module DCM)
  • 1-phase AC (with decoupling module DCM)

Short-circuit protection

Additional short-circuit protection is required in the main circuit

Current measuring accuracy

Within the measuring range ± 3%

Feed-through opening

Opening diameter



  • 6BK1700-3BA30-0AA0

7.5 mm

  • 6BK1700-3BA40-0AA0

14.0 mm

  • 6BK1700-3BA50-0AA0

25.0 mm


Код Заказной номер Описание Вес (кг) Заказать
61573 6BK1700-3BA30-0AA0 current detection модуль (im) i=2.4-25.0a 0.142 Заказать
61574 6BK1700-3BA40-0AA0 current detection модуль (im) i=10-100a 0.312 Заказать
110027 6BK1700-3BA50-0AA0 current detection модуль (im) i=20-200 a 0.639 Заказать
;
