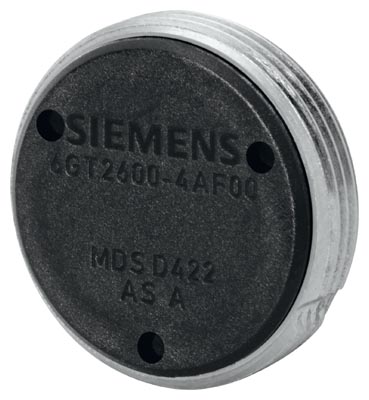

MDS D422 производства Siemens

The MDS D422 is a passive (maintenance-free) transponder based on ISO 15693 with FRAM technology.

The transponder can only be operated with the RFID systems SIMATIC RF200 and SIMATIC RF300 (ISO mode).

Operation with the mobile readers (SIMATIC RF310M and MOBY STG D) and the MOBY D readers is not possible!

Identification of metallic workpiece holders, workpieces or containers.

Transponder	MDS D422
Transmission frequency	13.56 MHz
Range	Max. 15 mm
Protocol (air interface)	ISO 15693
Memory capacity
User memory	2000 bytes (FRAM)
Read-only memory (UID)	8 bytes
OTP (One Time Programmable)	2000 bytes (only with SIMATIC RF300)
Memory organization	Block by block access (8 byte block size)
Data retention time (below +40 °C)	> 10 years
Write cycles
EEPROM	-
FRAM	Practically unlimited (>10¹⁰)
Read cycles	Unlimited
Ambient temperature
During operation	-25 °C … +85 °C
During transportation and storage	-40 °C … +100 °C
Degree of protection according to EN 60529	IP68
Mechanical stress in accordance with EN 60721 3-7 Class 7 M3
Shock	50 g
Vibration	20 g
Torsion and bending	not permissible
Type of construction

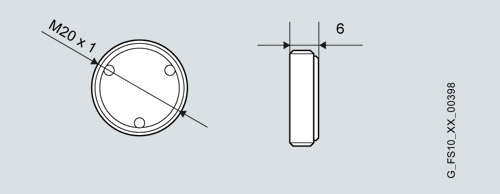

Dimensions, thread diameter x length (mm)	M20 x 6
Color	Black/silver
Weight	Approx. 13 g
Material	Plastic PA6.6 GF and brass, nickel-plated
Mounting	Gluing or screws
Mounting
On metal	Yes
Flush-mounted in metal	Yes

Описание : moby d / rf300 iso mobile data storage mds d422; screw. transponder in metal; acc. to iso 15693; 2000 byte fram user memory 20x6mm dxh, m20 thread; ip 68, ipx9k; minimum order 5 pcs incl. fastening tool (1x);
Вес (кг) : 0.025

Код	Заказной номер	Заказать
114659	6GT2600-4AF00	Заказать

;
