All shut-off fittings can be secured onto walls, racks (72 mm grid) and vertical and horizontal pipes.
This offers the advantage when assembling a plant that the shut-off fittings can be secured first and the lines for the medium and differential pressure connected to them. It is then possible to check all connections for leaks and to blow out or flush the pipes in order to remove dirt (welding residues, shavings etc.).
The measuring instruments can only be screwed onto the shut-off fittings right at the end when all piping has been completed.
If an instrument has to be removed for maintenance, the fittings and pipes remain intact. It is only necessary to close the valves – the instrument can then be removed, and refitted following maintenance.
For gases of fluid group 1 and liquids of fluid group 1; compliance with requirements of article 3, paragraph 3 (sound engineering practice).
The flange connection between transmitter and valve manifold was modified in the standard IEC 61518. The only connection thread approved for use in the process flanges of the pressure transmitter is 7/16‑20 UNF.
The valve manifolds for M12 screws, including the accessory sets, have therefore been deleted.
If a material acceptance test certificate to EN 10204-3.1 is required when ordering valve manifolds or shut-off fittings, please note that a single certificate is sufficient for each ordered item type. This means that you will only be charged for one certificate in the cost calculations.
SITRANS P transmitter for gage pressure with double shut-off valve, SITRANS P pressure transmitter with multiway cock or 3-spindle valve manifold
SITRANS P transmitter for differential pressure with 3-way valve manifold, 3-spindle valve manifold or valve manifold combination DN 5/DN 8
SITRANS P pressure transmitter for differential pressure, mounted in protective box (available on request)
SITRANS P pressure transmitter mounted on "Monoflange" valve combination for direct connection to flanges (available on request)
Transmitters | Shut-off valves for general applications | Shut-off valves for special applications | ||
|---|---|---|---|---|
Relative and absolute pressure transmitters with process connection G½" male thread e. g.
| Shut-off valves / double shut-off valves to DIN 16270, DIN 16271 and DIN 16272 7MF9401-7.. and 7MF9401-8.. |
| Double shut-off valve DN 5 for crossover ½-NPT-F to G½ nipple connection 7MF9011-4EA |
|
2-spindle valve manifold DN 5 for installation in protective boxes 7MF9412-1B |
| |||
Relative and absolute pressure transmitter with ½"-14 NPT female thread process connection e. g.

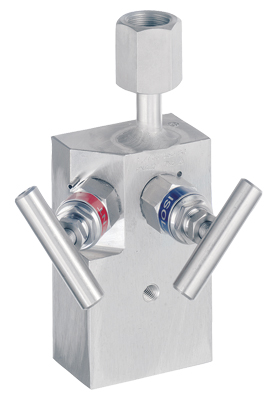

| Double shut-off valve DN 5 7MF9011-4FA and 7MF9011-4GA |  7MF9011-4FA 7MF9011-4GA | Double shut-off valve DN 5 for process connection ½-NPT 7MF9011-4DA |
|
Absolute pressure transmitter with process connection to IEC 61518 e. g. SITRANS P DS III series | 2-spindle valve manifold DN 5 7MF9411-5A. |
| 2-spindle valve manifold DN 5 for installation in protective boxes 7MF9412-1C. |
|

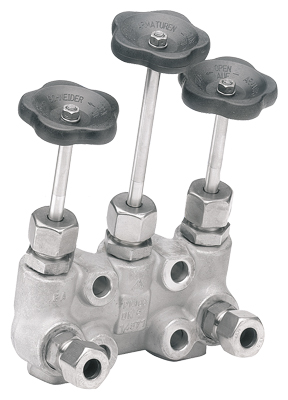

Differential pressure transmitter with process connection to IEC 61518 e. g. SITRANS P DS III series | For 3/5-spindle valve manifold DN 5 7MF9411-5B. and 7MF9411-5C. |
| 3-way valve manifolds, DN 5, forged version 7MF9410-1.. |
|
5-way valve manifolds, DN 5, forged version 7MF9410-3.. |
| |||
PN 100 multiway cocks 7MF9004-... |
| 3-way valve manifolds, DN 8, forged version 7MF9416-1.. and 7MF9416-2.. |
| |
Valve manifold combination DN 5/DN 8 for vapor measurement 7MF9416-6.. |
| |||
Valve manifold combination DN 8 for vapor measurement 7MF9416-4.. |
| |||
Valve manifold for DN 5 for installation in protective boxes 7MF9412-1D. and 7MF9412-1E. |
| |||
Valve manifold for vertical differential pressure lines 7MF9413-1.. |
| |||
Low-pressure multiway cocks 7MF9004-4.. |
|
