Universal dimmers

Universal dimmers are dimmers which automatically determine the load type connected to its output (resistive, inductive or capacitive) and switch over accordingly to leading-edge phase mode (for a resistive or inductive load such as incandescent lamps or LV halogen lamps with an upstream conventional transformer) or trailing-edge phase mode (for a capacitive load such as LV halogen lamps with an upstream electronic transformer).

Block diagram 1:

1-channel operation without KNX, control over conventional pushbuttons at the two inputs (E1, E2)¹⁾

Block diagram 2:

Possible combinations of universal dimmer main modules and expansions¹⁾

¹⁾ The block diagrams shown here are just an example of how modules can be interconnected and interfaced. Refer to the technical documentation for more detailed information www.siemens.de/gamma-td

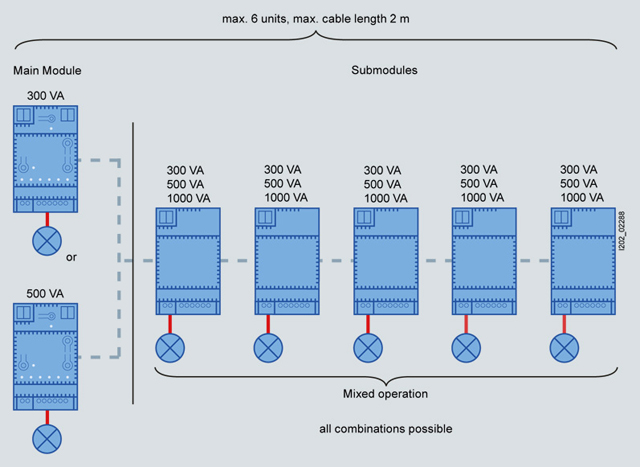

Block diagram 3:

Possible combinations of universal dimmer main modules and expansions plus performance increase¹⁾

¹⁾ The block diagrams shown here are just an example of how modules can be interconnected and interfaced. Refer to the technical documentation for more detailed information www.siemens.de/gamma-td
