Pushbutton Bus Coupling Unit (BTM) производства Siemens

The new GAMMA Building Management Systems instabus pushbutton generation is distinguished by a uniform bus coupling unit and a unique application program. The operator interfaces provide maximum functionality based on KNX technology and are available in a wide range of designs.

The new pushbutton generation has only one bus coupling unit (BTM) for all bus pushbuttons. Each new GAMMA instabus pushbutton from the DELTA line, DELTA miro, DELTA style and DELTA profil design lines can be plugged onto a bus coupling unit (BTM). This makes for less planning work and easier installation and start-up.

A unique application program is available for all versions. The parameter settings range from typical switching functions to value transmissions to the value-controlled lighting of up to nine status LEDs. The pushbuttons have special features including an integrated scene module, room temperature sensor and IR receiver decoder.

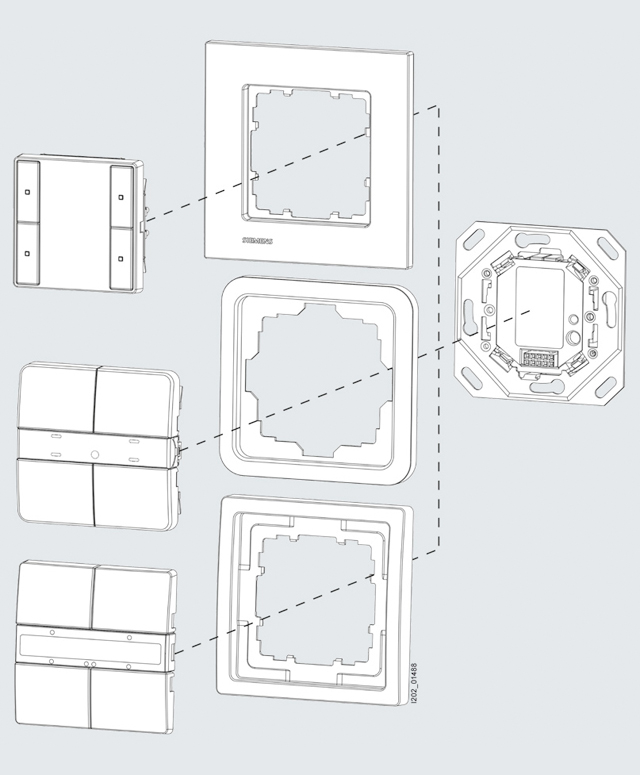

The GAMMA instabus pushbuttons with BTM are plugged together with the corresponding DELTA line , DELTA miro, DELTA profil or DELTA style frames onto a bus coupling unit (BTM).
