Zubehör

8HP6 602

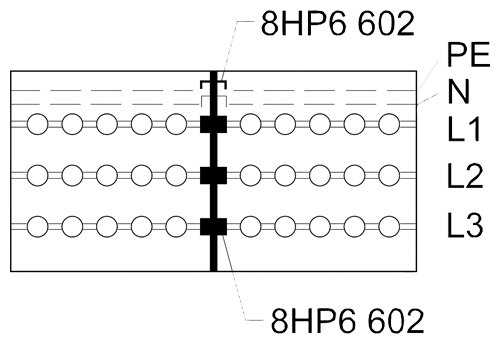

Connecting kits for 2 DIAZED or NEOZED fuse assembly kits

• The bars of the connecting kit can be equipped with incoming terminals of up to 50 mm², type 8JH4 125 or up to 70 mm2, type 8JK3 441 (see page 18.8/32)
• Note load rating of the bar-mounting base bar 160 A

Versions

• Assembly kits for 3 busbars 16 x 3 mm (L1, L2, L3)
• Assembly kits for N/PE bars (2 units required for 5 conductors)

8HP6 602

8HP6 603

8HP6 57

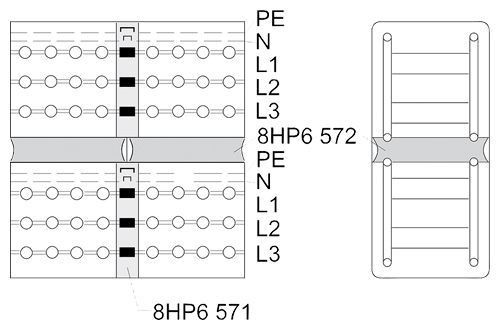

Covering strips, 285 mm long

• For multiple installation of assembly kits with cover plates for covering the intermediate spaces
• These are essential when using cover locks with manual operation

Versions

• Vertical
• Horizontal

8HP6 571

8HP6 572

8HP6 542

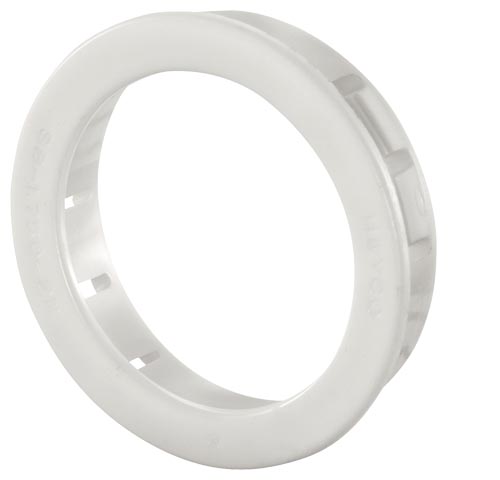

Reduction for cover plates

• From E33 to E27
• For snapping onto cover plates

8HP6 542

Incoming and outgoing terminals for busbars 16 mm × 3 mm

Suitable for DIAZED bus-mounting rails and connecting kits

For bars mm × mm

Conductor cross-section in mm² (solid or stranded)

16 × 3

1,5 ... 16

8JH4 122

10 ... 35

8JH4 124

16 ... 50

8JH4 125

10 ... 70

8JK3 441
