Корпуса для установочных элементов производства Siemens

Обзор
Дополнительно

Монтажный набор включает покрывающие пластины.
Возможности конфигурирования определены исходя из ширины модуля (TE = 18 mm).
PE и N внешние фидеры: 1 PE и 1 N шина 6 x 6 mm каждая с 1 входящей клеммой
16 mm² для размеров 1 и 35 mm² для размеров 2 и 3.
8WA2 860 терминалы должны быть заказаны отдельно.

Версии:

С прозрачной крышкой
С непрозрачной крышкой
С крышкой и операционными створками
Крышка с операционными створками, непрозрачная

	Version		Order No.
Accessories
	Actuating flaps Degree of protection IP65 Corresponding cutouts must be made in the cover

	Version	Seal

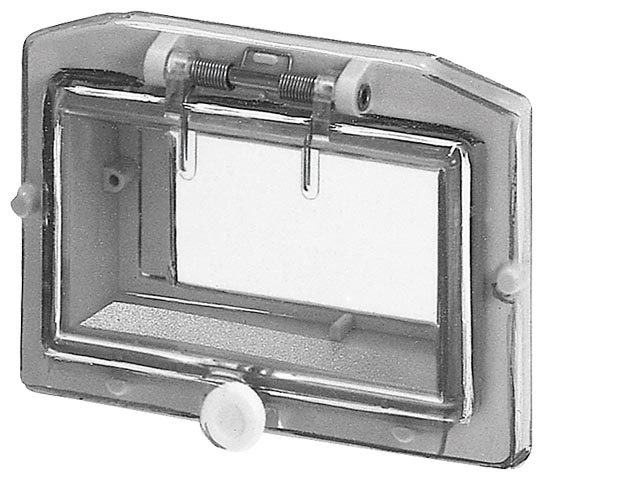

8HP1 441	5 Modular widths	Screw	8HP1 441

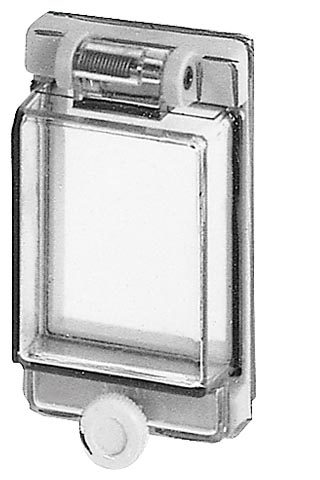

8HP1 442	2 Modular widths	Screw	8HP1 442
	Covering strips, 285 mm long For multiple installation of assembly kits with cover plates for covering These are essential when using cover locks with manual operation
8HP6 57.
	Version
	Vertical Horizontal		8HP6 571 8HP6 572

Код	Заказной номер	Описание	Вес (кг)	Заказать
73899	8HP1331	cover, non-transparent with 1 operating flap for enclosure size 1	0.6	Заказать
120445	8HP1351	cover, non-transparent with 1 operating flap for enclosure size 2	0.6	Заказать
73900	8HP1352	cover, non-transparent with 2 operating flaps for enclosure size 2	0.6	Заказать
73901	8HP1353	cover, non-transparent with 3 operating flaps for enclosure size 3	1.3	Заказать
73902	8HP1354	cover, non-transparent with 4 operating flaps for enclosure size 3	1.3	Заказать
120446	8HP1440	actuating flap w. snap lock 12 modular widths, 18mm each	17.5	Заказать
73903	8HP1441	actuating flap w. screw lock 5 modular widths, 18mm each	0.1	Заказать
73904	8HP1442	actuating flap w. screw lock 2 modular widths, 18mm each	0.05	Заказать
73949	8HP2501	enclosure for snap-mounted devices transparent cover size 1, 1 x 11 mw comprises 8hp1101+8hp5531+8hp1221	1.2	Заказать
73950	8HP2511	enclosure for snap-mounted devices cover opaque size 1, 1 x 11 mw comprises 8hp1101+8hp5531+8hp1201	1.3	Заказать
120495	8HP2521	enclosure for snap-mounted devices cover w. 1 flap size 1, 1 x 11 mw comprises 8hp1101+8hp5531+8hp1331	1.4	Заказать
73951	8HP2523	enclosure for snap-mounted devices transparent cover size 2.5, 3 x 14 mw comprises 8hp1107+8hp5533+8hp1227	3	Заказать
73952	8HP2532	enclosure for snap-mounted devices transparent cover size 2, 2 x 14 mw comprises 8hp1102+8hp5532+8hp1222	2	Заказать
73953	8HP2534	enclosure for snap-mounted devices transparent cover size 3, 4 x 14 mw comprises 8hp1103+8hp5534+8hp1223	3.5	Заказать
73954	8HP2542	enclosure for snap-mounted devices cover opaque size 2, 2 x 14 mw comprises 8hp1102+8hp5532+8hp1202	2.2	Заказать
73955	8HP2544	enclosure for snap-mounted devices cover opaque size 3, 4 x 14 mw comprises 8hp1103+8hp5534+8hp1203	3.9	Заказать
120496	8HP2552	enclosure for snap-mounted devices cover w. 2 flaps size 2, 2 x 14 mw comprises 8hp1102+8hp5532+8hp1352	2.4	Заказать
120497	8HP2554	enclosure for snap-mounted devices cover w. 4 flaps size 3, 4 x 14 mw comprises 8hp1103+8hp5534+8hp1354	4.2	Заказать
73980	8HP5531	assembly kit for snapped-on devices for 1x11 modular widths f. iso-enclosure sz.1 for sheet steel enclosure sz.12	0.35	Заказать
73981	8HP5532	assembly kit for snapped-on devices for 2x14 modular widths f. iso-enclosure sz.2 to 4 for sheet steel enclosure sz.24	0.56	Заказать
120536	8HP5533	assembly kit for snapped-on devices for 3x14 modular widths f. iso-enclosure sz.2.5 for sheet steel enclosure sz.26	0.95	Заказать
120537	8HP5534	assembly kit for snapped-on devices for 4x14 modular widths f. iso-enclosure sz.3	1.05	Заказать
120556	8HP6571	cover strip 285mm vertical for 2 fuse mounting kits	0.02	Заказать
73997	8HP6572	cover strip 285mm horizontal for 2 fuse mounting kits	0.02	Заказать
73998	8HP6581	cover plate f. assembly kit 1-row (8hp5 531) for box sz. 1	0.05	Заказать
73999	8HP6582	cover plate f. assembly kit 2-row (8hp5 532) for box sz. 2	0.11	Заказать
120557	8HP6583	cover plate f. assembly kit 3-row, (8hp5 533) for box sz. 2.5	0.18	Заказать
120558	8HP6584	cover plate f. assembly kit 4-row, (8hp5 534) for box sz. 3	0.25	Заказать
