Unequipped Distribution Boards производства Siemens

Cabinet mounting lugs, flat

Versions

• For mounting and fixing the distribution boards directly against the wall without spacing
  (1 set = 4 lugs incl. screws)

8GK9 910-0KK36

• For connecting two distribution boards and for mounting and fixing the distribution boards directly against the wall without spacing, (8GK9 910-0KK36 also required for the ends of a row of distribution boards)
  (1 set = 2 lugs incl. screws)

8GK9 910-0KK37

8GK9 100-0KK00

8GK9 100-0KK02

8GK9 100-0KK10

Flanges

For fast and correct wiring

Versions

• 1-component flanges (for IP43 distribution boards, installed on bottom panel)
  • For bottom cable entry, with 11 possible knockouts
  • Max. Ø 50,5 mm, made of plastic

8GK9 100-0KK00

• 2-component flanges (degree of protection: IP55)
  • For top/bottom cable entry
  • With 44 possible knockouts
  • Comprising 2 elastic components

8GK9 100-0KK01

• Flange plates: sheet steel (only protection class 1)

• For metric screw connections, degree of protection: IP43

8GK9 100-0KK02

• For metric screw connections, degree of protection: IP55

8GK9 100-0KK03

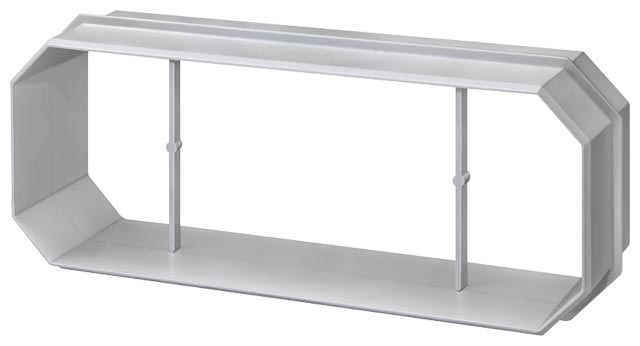

• Connecting flanges

8GK9 100-0KK10

8GK9 100-0KK04

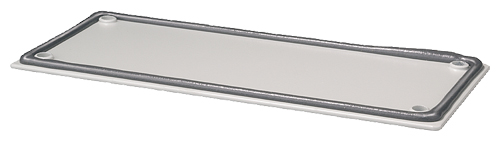

Flange plates

• Degree of protection IP55
• Protection class 1

8GK9 100-0KK04

Paint sticks

• Color RAL 7035 (light gray)
• 12 g

8GK9 910-0KK16

Paint spray cans

• Color RAL 7035 (light gray)
• 400 ml

8GK9 910-0KK18

8GK9 902-0KK13

Bases¹⁾

External height: 100 mm

External dimensions in mm

Depth

Width

400

300

8GK9 902-0KK13

550

8GK9 902-0KK23

800

8GK9 902-0KK33

1050

8GK9 902-0KK43

1300

8GK9 902-0KK53

Footnote

¹⁾ Further base heights, e. g. 30 mm, are available on request.

8GK9 561-0KK01

8GK9 561-0KK02

8GK9 561-0KK00

Locking systems

Versions

• Twist levers
  • Recessable, with pushbutton technique

8GK9 561-0KK01

• Lock inserts
  • For installation of profile semicylinders

8GK9 561-0KK02

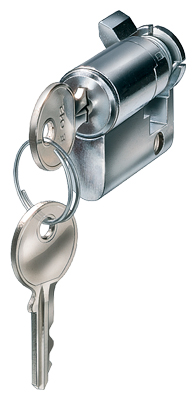

• Profile semicylinders, 40 mm, with E012 lock and 2 keys
  • With insert for the twist lever
  • Only to be used together with the lock insert (this must be ordered separately)

8GK9 561-0KK00

• Profile semicylinders with Senat tumbler

8GK9 560-0KK03

8GK9 911-0KK10

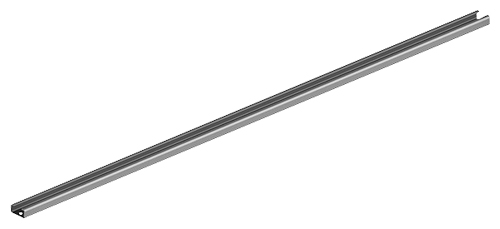

Cable clamping rails

• For strain relief
• C-profile 30 mm x 15 mm

Versions

• Width 250 mm

8GK9 911-0KK10

• Width 500 mm

8GK9 911-0KK20

• Width 750 mm

8GK9 911-0KK30

• Width 1000 mm

8GK9 911-0KK40

• Width 1250 mm

8GK9 911-0KK50

8GK9 910-0KK22

Circuit diagram pockets

Versions

• DIN A 3, made of sheet steel, depth 10 mm

8GK9 910-0KK22

• DIN A 4, transparent sleeve

8GK9 910-0KK23

• DIN A 4, made of plastic, depth 30 mm

8GD9 132

8GD9 084

Siemens nameplates

Made of aluminum, self-adhesive, petrol

8GD9 084

8GK4 853-0KK20

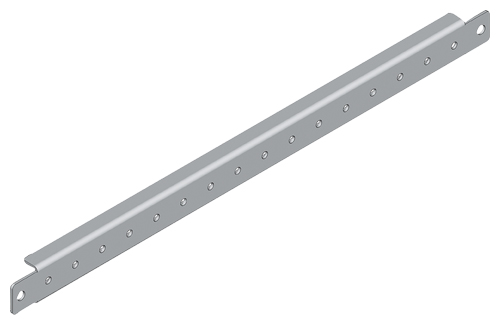

Cross-arms

Versions

• Width 500 mm

8GK4 853-0KK20

• Width 750 mm

8GK4 853-0KK30

8GK9 913-0KK30

Masking frames

• Sheet steel
• For recessed installation of stays
• Height 1800 mm

Width in mm

• 250

8GK9 913-0KK10

• 500

8GK9 913-0KK20

• 750

8GK9 913-0KK30

• 1000

8GK9 913-0KK40

• 1250

8GK9 913-0KK50

8GK9 520-0KK20

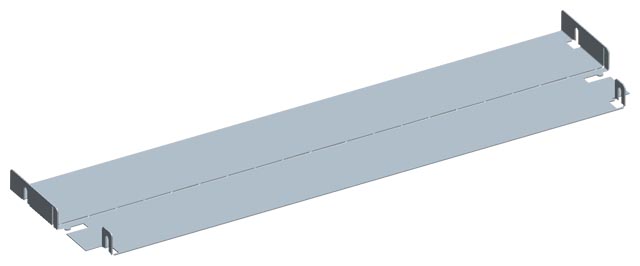

Partitions

• Sheet steel
• For mounting depth 400 mm

Versions

• Vertical

• Height 1800 mm

8GK9 521-8KK00

• Horizontal

• Width 250 mm

8GK9 520-0KK30

Screws

• Self-tapping
• M5 x 10
• Large pack: 500 units

8GK9 911-0KK00

8GK9 911-0KK01

Extra-deep brackets

• Depth-adjustable
• Large pack: 10 units

8GK9 911-0KK01

8GK9 911-0KK02

Drop-down brackets, universal

Large pack: 10 units

8GK9 911-0KK02

Support extensions

• 7.5 mm
• Large pack: 100 units

8GK9 911-0KK03

8GK9 911-0KK05

Iso supports

• For insulated standard mounting rail assembly
• Large pack: 50 units

Versions

• 12 mm

8GK9 911-0KK04

• 31.5 mm

8GK9 911-0KK05

• 55.5 mm

8GK9 911-0KK06

Ventilation panel new

8GK9 120-0KK30
