8GK1 Surface-Mounting Distribution Boards производства Siemens

8GK9 902-0KK13

Additional bases

• For ALPHA modular distribution boards
• Depth 400 mm
• Height 100 mm
• Color: RAL 7035

External width in mm

• 300

8GK9 902-0KK13

• 550

8GK9 902-0KK23

• 800

8GK9 902-0KK33

• 1050

8GK9 902-0KK43

• 1300

8GK9 902-0KK53

8GK1 100-0KK04

Flange plates

For lower flange opening (sheet steel closed)

8GK1 100-0KK04

Assembly kits - leveling feet

• For ALPHA modular distribution boards with a mounting depth of 400 mm
• Height adjustable leveling feet

8GK9 902-0KK00

Eyebolts

M12

8GK9 918-0KK00

8GK9 913-0KK30

Assembly kits masking frame for front cover

Height 1800 mm

Width in mm

• 250

8GK9 913-0KK10

• 500

8GK9 913-0KK20

• 750

8GK9 913-0KK30

• 1000

8GK9 913-0KK40

• 1250

8GK9 913-0KK50

Note

Assembly kit only necessary if the mounting stays are mounted at the rear of the modular distribution board.

8GK9 720-0KK00

Busbar supports

Busbar spacing 100/185 mm

Versions

• With matching support plate for mounting on the rear panel

8GK9 720-0KK00

• Without support plate for mounting on the rear panel, including fixing screws

8GK9 720-0KK01

Accessories

Holder - PEN bars

8GK9 721-0KK00

N/PE busbar support

8GK9 119-0KK00

Partitions

Depth 400 mm

Versions

8GK9 521-8KK00

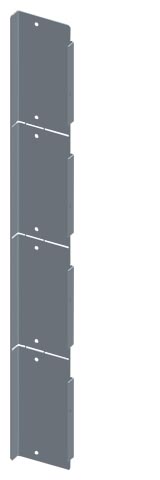

• Vertical, height 1800 mm

8GK9 521-8KK00

8GK9 520-0KK30

• Horizontal, width 250 mm

8GK9 520-0KK30
