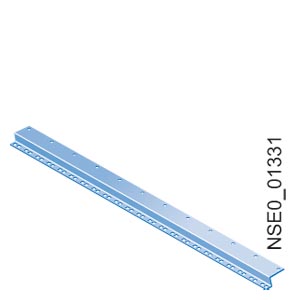

The 19-inch punched bars for captive nuts (or alternatively for self-tapping screws) possess the same profile as a swing frame. They are screwed to the upright section of the side frame of a 600 mm wide cubicle. The row of holes is set back 50 mm from the front edge of the frame. Additional supporting bars are required to permit installation in wider cubicles or alternative depth positioning.
| Код | Заказной номер | Описание | Вес (кг) | Заказать |
|---|---|---|---|---|
| 121073 | 8MC4870 | perforated steel strip with retaining nut profile for cubicle height 1800mm | 4.682 | Заказать |
| 74511 | 8MC4871 | perforated steel strip with retaining nut profile for cubicle height 2000mm | 5.184 | Заказать |
| 121074 | 8MC4872 | perforated steel strip with retaining nut profile for cubicle height 2200mm | 5.812 | Заказать |
| 121075 | 8MC4874 | perforated steel strip for threaded grooved nuts for cubicle height 1800mm | 4.99 | Заказать |
| 121076 | 8MC4875 | perforated steel strip for threaded grooved nuts for cubicle height 2000mm | 5.54 | Заказать |
| 121077 | 8MC4876 | perforated steel strip for threaded grooved nuts for cubicle height 2200mm | 6.1 | Заказать |
| 121633 | 8MF4870 | perforated steel strip with retaining nut profile for cubicle height 1800mm | 5.658 | Заказать |
| 121634 | 8MF4871 | perforated steel strip with retaining nut profile for cubicle height 2000mm | 6.438 | Заказать |
| 75019 | 8MF4872 | perforated steel strip with retaining nut profile for cubicle height 2200mm | 6.918 | Заказать |
| 121635 | 8MF4874 | perforated steel strip for threaded grooved nuts for cubicle height 1800mm | 5.555 | Заказать |
| 121636 | 8MF4875 | perforated steel strip for threaded grooved nuts for cubicle height 2000mm | 1.5 | Заказать |
| 75020 | 8MF4876 | perforated steel strip for threaded grooved nuts for cubicle height 2200mm | 1.7 | Заказать |
