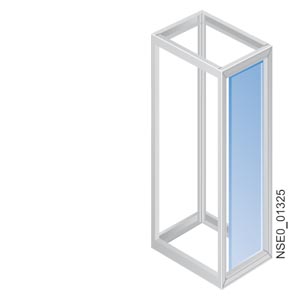

Side mounting plates (2.5 mm galvanized sheet) are used for cubicle installations and for the mounting of devices (in installed state only).
The plates are screwed between the side frame profiles of the cubicle frame.
Further dimensions and versions on request.
| Код | Заказной номер | Описание | Вес (кг) | Заказать |
|---|---|---|---|---|
| 74456 | 8MC4550 | mounting plate lateral hxd=1800x400 | 7.968 | Заказать |
| 121021 | 8MC4551 | mounting plate lateral hxd=1800x600 | 14.344 | Заказать |
| 74457 | 8MC4552 | mounting plate lateral hxd=1800x800 | 20.728 | Заказать |
| 121022 | 8MC4555 | mounting plate lateral hxd=2000x400 | 8.908 | Заказать |
| 121023 | 8MC4556 | mounting plate lateral hxd=2000x600 | 16.074 | Заказать |
| 74458 | 8MC4557 | mounting plate lateral hxd=2000x800 | 23.238 | Заказать |
| 74459 | 8MC4560 | mounting plate lateral hxd=2200x400 | 9.852 | Заказать |
| 121024 | 8MC4561 | mounting plate lateral hxd=2200x600 | 17.803 | Заказать |
| 121025 | 8MC4562 | mounting plate lateral hxd=2200x800 | 25.753 | Заказать |
| 121570 | 8MF4550 | mounting plate, lateral h x w = 1800 x 400 mm for 8mf system cubicle | 7.968 | Заказать |
| 121571 | 8MF4551 | mounting plate, lateral h x w = 1800 x 600 mm for 8mf system cubicle | 14.344 | Заказать |
| 74974 | 8MF4552 | mounting plate, lateral h x w = 1800 x 800 mm for 8mf system cubicle | 20.728 | Заказать |
| 74975 | 8MF4555 | mounting plate, lateral h x w = 2000 x 400 mm for 8mf system cubicle | 8.908 | Заказать |
| 74976 | 8MF4556 | mounting plate, lateral h x w = 2000 x 600 mm for 8mf system cubicle | 16.074 | Заказать |
| 121572 | 8MF4557 | mounting plate, lateral h x w = 2000 x 800 mm for 8mf system cubicle | 23.238 | Заказать |
| 121573 | 8MF4560 | mounting plate, lateral h x w = 2200 x 400 mm for 8mf system cubicle | 9.852 | Заказать |
| 121574 | 8MF4561 | mounting plate, lateral h x w = 2200 x 600 mm for 8mf system cubicle | 17.803 | Заказать |
| 74977 | 8MF4562 | mounting plate, lateral h x w = 2200 x 800 mm for 8mf system cubicle | 25.753 | Заказать |
