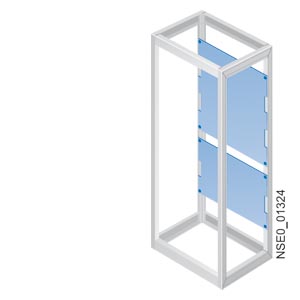

Mounting plates (2.5 mm galvanized sheet) are used for cubicle installations and for the mounting of devices (in installed state only).
The plates are screwed to the rear side frame profiles of the cubicle frame. If they are to be depth-adjustable, they must be ordered in conjunction with additional vertical supporting bars.
Further dimensions and versions on request.
| Код | Заказной номер | Описание | Вес (кг) | Заказать |
|---|---|---|---|---|
| 74460 | 8MC4600 | mounting plate hxw=allx600 | 2.5 | Заказать |
| 74461 | 8MC4601 | mounting plate hxw=allx800 | 6.167 | Заказать |
| 121026 | 8MC4602 | mounting plate hxw=allx900 | 8 | Заказать |
| 74462 | 8MC4603 | mounting plate hxw=allx1000 | 9.833 | Заказать |
| 121027 | 8MC4604 | mounting plate hxw=allx1200 | 13.5 | Заказать |
| 74463 | 8MC4610 | mounting plate hxw=allx600 | 4.5 | Заказать |
| 121028 | 8MC4611 | mounting plate hxw=allx800 | 8.167 | Заказать |
| 121029 | 8MC4612 | mounting plate hxw=allx900 | 10 | Заказать |
| 74464 | 8MC4613 | mounting plate hxw=allx1000 | 11.833 | Заказать |
| 121030 | 8MC4614 | mounting plate hxw=allx1200 | 15.5 | Заказать |
| 121031 | 8MC4620 | mounting plate hxw=allx600 | 6.5 | Заказать |
| 74465 | 8MC4621 | mounting plate hxw=allx800 | 10.167 | Заказать |
| 74466 | 8MC4622 | mounting plate hxw=allx900 | 12 | Заказать |
| 121032 | 8MC4623 | mounting plate hxw=allx1000 | 13.833 | Заказать |
| 74467 | 8MC4624 | mounting plate hxw=allx1200 | 17.5 | Заказать |
| 74468 | 8MC4630 | mounting plate hxw=allx600 | 8.5 | Заказать |
| 74469 | 8MC4631 | mounting plate hxw=allx800 | 12.167 | Заказать |
| 121033 | 8MC4632 | mounting plate hxw=allx900 | 14 | Заказать |
| 74470 | 8MC4633 | mounting plate hxw=allx1000 | 15.833 | Заказать |
| 121034 | 8MC4634 | mounting plate hxw=allx1200 | 19.5 | Заказать |
| 74471 | 8MC4640 | mounting plate hxw=allx600 | 11 | Заказать |
| 74472 | 8MC4641 | mounting plate hxw=allx800 | 14.667 | Заказать |
| 121035 | 8MC4642 | mounting plate hxw=allx900 | 16.5 | Заказать |
| 74473 | 8MC4643 | mounting plate hxw=allx1000 | 18.333 | Заказать |
| 121036 | 8MC4644 | mounting plate hxw=allx1200 | 22 | Заказать |
| 74474 | 8MC4660 | mounting plate hxw=1800x600 | 24 | Заказать |
| 121037 | 8MC4661 | mounting plate hxw=1800x800 | 26 | Заказать |
| 121038 | 8MC4662 | mounting plate hxw=1800x900 | 28 | Заказать |
| 74475 | 8MC4663 | mounting plate hxw=1800x1000 | 30 | Заказать |
| 121039 | 8MC4664 | mounting plate hxw=1800x1200 | 32 | Заказать |
| 121040 | 8MC4670 | mounting plate hxw=2000x600 | 26 | Заказать |
| 74476 | 8MC4671 | mounting plate hxw=2000x800 | 28 | Заказать |
| 74477 | 8MC4672 | mounting plate hxw=2000x900 | 30 | Заказать |
| 121041 | 8MC4673 | mounting plate hxw=2000x1000 | 32 | Заказать |
| 74478 | 8MC4674 | mounting plate hxw=2000x1200 | 34 | Заказать |
| 74479 | 8MC4680 | mounting plate hxw=2200x600 | 28 | Заказать |
| 121042 | 8MC4681 | mounting plate hxw=2200x800 | 30 | Заказать |
| 121043 | 8MC4682 | mounting plate hxw=2200x900 | 32 | Заказать |
| 74480 | 8MC4683 | mounting plate hxw=2200x1000 | 34 | Заказать |
| 121044 | 8MC4684 | mounting plate hxw=2200x1200 | 36 | Заказать |
| 121576 | 8MF4600 | mounting plate hxw=allx600 | 2.5 | Заказать |
| 121577 | 8MF4601 | mounting plate hxw=allx800 | 6.167 | Заказать |
| 121578 | 8MF4602 | mounting plate hxw=allx900 | 8 | Заказать |
| 121579 | 8MF4603 | mounting plate hxw=allx1000 | 9.833 | Заказать |
| 121580 | 8MF4604 | mounting plate hxw=allx1200 | 13.5 | Заказать |
| 121581 | 8MF4610 | mounting plate hxw=allx600 | 4.5 | Заказать |
| 121582 | 8MF4611 | mounting plate hxw=allx800 | 8.167 | Заказать |
| 74978 | 8MF4612 | mounting plate hxw=allx900 | 10 | Заказать |
| 121583 | 8MF4613 | mounting plate hxw=allx1000 | 11.833 | Заказать |
| 74979 | 8MF4614 | mounting plate hxw=allx1200 | 15.5 | Заказать |
| 74980 | 8MF4620 | mounting plate hxw=allx600 | 6.5 | Заказать |
| 74981 | 8MF4621 | mounting plate hxw=allx800 | 10.167 | Заказать |
| 121584 | 8MF4622 | mounting plate hxw=allx900 | 12 | Заказать |
| 74982 | 8MF4623 | mounting plate hxw=allx1000 | 13.833 | Заказать |
| 121585 | 8MF4624 | mounting plate hxw=allx1200 | 17.5 | Заказать |
| 121586 | 8MF4630 | mounting plate hxw=allx600 | 8.5 | Заказать |
| 121587 | 8MF4631 | mounting plate hxw=allx800 | 12.167 | Заказать |
| 121588 | 8MF4632 | mounting plate hxw=allx900 | 14 | Заказать |
| 121589 | 8MF4633 | mounting plate hxw=allx1000 | 15.833 | Заказать |
| 121590 | 8MF4634 | mounting plate hxw=allx1200 | 19.5 | Заказать |
| 121591 | 8MF4640 | mounting plate hxw=allx600 | 11 | Заказать |
| 74983 | 8MF4641 | mounting plate hxw=allx800 | 14.667 | Заказать |
| 121592 | 8MF4642 | mounting plate hxw=allx900 | 16.5 | Заказать |
| 74984 | 8MF4643 | mounting plate hxw=allx1000 | 18.333 | Заказать |
| 121593 | 8MF4644 | mounting plate hxw=allx1200 | 22 | Заказать |
| 121594 | 8MF4660 | mounting plate hxw=1800x600 | 24 | Заказать |
| 121595 | 8MF4661 | mounting plate hxw=1800x800 | 26 | Заказать |
| 121596 | 8MF4662 | mounting plate hxw=1800x900 | 28 | Заказать |
| 121597 | 8MF4663 | mounting plate hxw=1800x1000 | 30 | Заказать |
| 121598 | 8MF4664 | mounting plate hxw=1800x1200 | 32 | Заказать |
| 121599 | 8MF4670 | mounting plate hxw=2000x600 | 26 | Заказать |
| 121600 | 8MF4671 | mounting plate hxw=2000x800 | 28 | Заказать |
| 74985 | 8MF4672 | mounting plate hxw=2000x900 | 30 | Заказать |
| 121601 | 8MF4673 | mounting plate hxw=2000x1000 | 32 | Заказать |
| 74986 | 8MF4674 | mounting plate hxw=2000x1200 | 34 | Заказать |
| 74987 | 8MF4680 | mounting plate hxw=2200x600 | 28 | Заказать |
| 121602 | 8MF4681 | mounting plate hxw=2200x800 | 30 | Заказать |
| 74988 | 8MF4682 | mounting plate hxw=2200x900 | 32 | Заказать |
| 121603 | 8MF4683 | mounting plate hxw=2200x1000 | 34 | Заказать |
| 74989 | 8MF4684 | mounting plate hxw=2200x1200 | 36 | Заказать |
