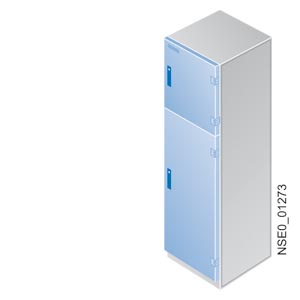

Doors offer a floor clearance
The locking system for compartment doors is an espagnolette (cam lock) with 3 mm double-bit key (two locks for a door height of more than 500 mm). As an absolutely equal division is not possible, the lower compartment doors are always slightly shorter than the doors above. The tables below illustrate the heights of the compartment doors for the various cubicle heights and divisions:
8MC2
Cubicle height | Compartment doors for system cubicles | |||
|---|---|---|---|---|
2 doors | 3 doors | 4 doors | 5 doors | |
1800 mm | 1 x 895 mm 1 x 845 mm | 2 x 595 mm 1 x 545 mm | 3 x 445 mm 1 x 395 mm | 5 x 345 mm |
2000 mm | 1 x 995 mm 1 x 945 mm | 2 x 695 mm 1 x 645 mm | 3 x 495 mm 1 x 445 mm | 4 x 395 mm 1 x 345 mm |
2200 mm | 1 x 1095 mm 1 x 1045 mm | 2 x 745 mm 1 x 645 mm | 3 x 545 mm 1 x 495 mm | 4 x 445 mm 1 x 345 mm |
8MF
Cubicle height | Compartment doors for system cubicles | |||
|---|---|---|---|---|
2 doors | 3 doors | 4 doors | 5 doors | |
1800 mm | 1 x 874 mm 1 x 774 mm | 2 x 574 mm 1 x 474 mm | 3 x 374 mm 1 x 474 mm | 4 x 274 mm 1 x 474 mm |
2000 mm | 1 x 974 mm 1 x 874 mm | 2 x 674 mm 1 x 474 mm | 3 x 474 mm 1 x 374 mm | 4 x 374 mm 1 x 274 mm |
2200 mm | 1 x 1074 mm 1 x 974 mm | 3 x 674 mm | 3 x 574 mm 1 x 274 mm | 4 x 374 mm 1 x 474 mm |
Other divisions and compartment door heights on request.
| Код | Заказной номер | Описание | Заказать |
|---|---|---|---|
| 74333 | 8MC3660 | compartment doors instead of a standard door hxw=1800x600 | Заказать |
| 74334 | 8MC3661 | compartment doors instead of a standard door hxw=1800x600 | Заказать |
| 74335 | 8MC3662 | compartment doors instead of a standard door hxw=1800x600 | Заказать |
| 120910 | 8MC3663 | compartment doors instead of a standard door hxw=1800x600 | Заказать |
| 120911 | 8MC3665 | compartment doors instead of a standard door hxw=2000x600 | Заказать |
| 120912 | 8MC3666 | compartment doors instead of a standard door hxw=2000x600 | Заказать |
| 74336 | 8MC3667 | compartment doors instead of a standard door hxw=2000x600 | Заказать |
| 120913 | 8MC3668 | compartment doors instead of a standard door hxw=2000x600 | Заказать |
| 74337 | 8MC3670 | compartment doors instead of a standard door hxw=2200x600 | Заказать |
| 120914 | 8MC3671 | compartment doors instead of a standard door hxw=2200x600 | Заказать |
| 120915 | 8MC3672 | compartment doors instead of a standard door hxw=2200x600 | Заказать |
| 74338 | 8MC3673 | compartment doors instead of a standard door hxw=2200x600 | Заказать |
| 74339 | 8MC3860 | compartment doors instead of a standard door hxw=1800x800 | Заказать |
| 74340 | 8MC3861 | compartment doors instead of a standard door hxw=1800x800 | Заказать |
| 120916 | 8MC3862 | compartment doors instead of a standard door hxw=1800x800 | Заказать |
| 74341 | 8MC3863 | compartment doors instead of a standard door hxw=1800x800 | Заказать |
| 74342 | 8MC3865 | compartment doors instead of a standard door hxw=2000x800 | Заказать |
| 74343 | 8MC3866 | compartment doors instead of a standard door hxw=2000x800 | Заказать |
| 74344 | 8MC3867 | compartment doors instead of a standard door hxw=2000x800 | Заказать |
| 74345 | 8MC3868 | compartment doors instead of a standard door hxw=2000x800 | Заказать |
| 74346 | 8MC3870 | compartment doors instead of a standard door hxw=2200x800 | Заказать |
| 120918 | 8MC3871 | compartment doors instead of a standard door hxw=2200x800 | Заказать |
| 74347 | 8MC3872 | compartment doors instead of a standard door hxw=2200x800 | Заказать |
| 120919 | 8MC3873 | compartment doors instead of a standard door hxw=2200x800 | Заказать |
| 74348 | 8MC3960 | compartment doors instead of a standard door hxw=1800x900 | Заказать |
| 120920 | 8MC3961 | compartment doors instead of a standard door hxw=1800x900 | Заказать |
| 120921 | 8MC3962 | compartment doors instead of a standard door hxw=1800x900 | Заказать |
| 74349 | 8MC3963 | compartment doors instead of a standard door hxw=1800x900 | Заказать |
| 120922 | 8MC3965 | compartment doors instead of a standard door hxw=2000x900 | Заказать |
| 120923 | 8MC3966 | compartment doors instead of a standard door hxw=2000x900 | Заказать |
| 74350 | 8MC3967 | compartment doors instead of a standard door hxw=2000x900 | Заказать |
| 74351 | 8MC3968 | compartment doors instead of a standard door hxw=2000x900 | Заказать |
| 120924 | 8MC3970 | compartment doors instead of a standard door hxw=2200x900 | Заказать |
| 74352 | 8MC3971 | compartment doors instead of a standard door hxw=2200x900 | Заказать |
| 120925 | 8MC3972 | compartment doors instead of a standard door hxw=2200x900 | Заказать |
| 74353 | 8MC3973 | compartment doors instead of a standard door hxw=2200x900 | Заказать |
| 121455 | 8MF3660 | compartment doors instead of a standard door hxw=1800x600 | Заказать |
| 121456 | 8MF3661 | compartment doors instead of a standard door hxw=1800x600 | Заказать |
| 74868 | 8MF3662 | compartment doors instead of a standard door hxw=1800x600 | Заказать |
| 121457 | 8MF3663 | compartment doors instead of a standard door hxw=1800x600 | Заказать |
| 74869 | 8MF3665 | compartment doors instead of a standard door hxw=2000x600 | Заказать |
| 121458 | 8MF3666 | compartment doors instead of a standard door hxw=2000x600 | Заказать |
| 74870 | 8MF3667 | compartment doors instead of a standard door hxw=2000x600 | Заказать |
| 121459 | 8MF3668 | compartment doors instead of a standard door hxw=2000x600 | Заказать |
| 74871 | 8MF3670 | compartment doors instead of a standard door hxw=2200x600 | Заказать |
| 74872 | 8MF3671 | compartment doors instead of a standard door hxw=2200x600 | Заказать |
| 74873 | 8MF3672 | compartment doors instead of a standard door hxw=2200x600 | Заказать |
| 74874 | 8MF3673 | compartment doors instead of a standard door hxw=2200x600 | Заказать |
| 121460 | 8MF3860 | compartment doors instead of a standard door hxw=1800x800 | Заказать |
| 121461 | 8MF3861 | compartment doors instead of a standard door hxw=1800x800 | Заказать |
| 74875 | 8MF3862 | compartment doors instead of a standard door hxw=1800x800 | Заказать |
| 121462 | 8MF3863 | compartment doors instead of a standard door hxw=1800x800 | Заказать |
| 121463 | 8MF3865 | compartment doors instead of a standard door hxw=2000x800 | Заказать |
| 121464 | 8MF3866 | compartment doors instead of a standard door hxw=2000x800 | Заказать |
| 74876 | 8MF3867 | compartment doors instead of a standard door hxw=2000x800 | Заказать |
| 74877 | 8MF3868 | compartment doors instead of a standard door hxw=2000x800 | Заказать |
| 74878 | 8MF3870 | compartment doors instead of a standard door hxw=2200x800 | Заказать |
| 121465 | 8MF3871 | compartment doors instead of a standard door hxw=2200x800 | Заказать |
| 74879 | 8MF3872 | compartment doors instead of a standard door hxw=2200x800 | Заказать |
| 121466 | 8MF3873 | compartment doors instead of a standard door hxw=2200x800 | Заказать |
| 74880 | 8MF3960 | compartment doors instead of a standard door hxw=1800x900 | Заказать |
| 74881 | 8MF3961 | compartment doors instead of a standard door hxw=1800x900 | Заказать |
| 74882 | 8MF3962 | compartment doors instead of a standard door hxw=1800x900 | Заказать |
| 121467 | 8MF3963 | compartment doors instead of a standard door hxw=1800x900 | Заказать |
| 121468 | 8MF3965 | compartment doors instead of a standard door hxw=2000x900 | Заказать |
| 74883 | 8MF3966 | compartment doors instead of a standard door hxw=2000x900 | Заказать |
| 121469 | 8MF3967 | compartment doors instead of a standard door hxw=2000x900 | Заказать |
| 74884 | 8MF3968 | compartment doors instead of a standard door hxw=2000x900 | Заказать |
| 74885 | 8MF3970 | compartment doors instead of a standard door hxw=2200x900 | Заказать |
| 74886 | 8MF3971 | compartment doors instead of a standard door hxw=2200x900 | Заказать |
| 74887 | 8MF3972 | compartment doors instead of a standard door hxw=2200x900 | Заказать |
| 74888 | 8MF3973 | compartment doors instead of a standard door hxw=2200x900 | Заказать |
