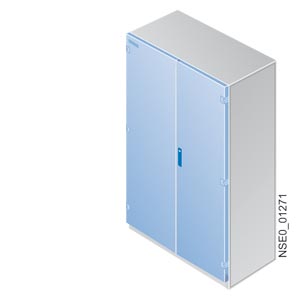

Symmetrically divided double-wing doors are designed as for the 1000/1200 mm wide standard cubicles. The espagnolette lock is fitted in the right-hand door. Each wing of a symmetrically divided double-wing door is half the width of the frame on which it is mounted
If a double-wing door with left-hand locking is required, add the suffix "-Z" to the Order No. and "left-hand locking" to the text.
For cubicle modifications for ventilation see "Ventilation Slots/Ventilation Gills" and "Roof Panels for Ventilation".
| Код | Заказной номер | Описание | Заказать |
|---|---|---|---|
| 120790 | 8MC3040 | symmet.divided double wing door instead of single wing door for cubicle hxw = 1800 x 800mm degree of protection ip40 | Заказать |
| 74212 | 8MC3041 | symmet.divided double wing door instead of single wing door for cubicle hxw = 1800 x 900mm degree of protection ip40 | Заказать |
| 74213 | 8MC3042 | symmet.divided double wing door instead of single wing door for cubicle hxw = 2000 x 800mm degree of protection ip40 | Заказать |
| 120791 | 8MC3043 | symmet.divided double wing door instead of single wing door for cubicle hxw = 2000 x 900mm degree of protection ip40 | Заказать |
| 120792 | 8MC3044 | symmet.divided double wing door instead of single wing door for cubicle hxw = 2200 x 800mm degree of protection ip40 | Заказать |
| 120793 | 8MC3045 | symmet.divided double wing door instead of single wing door for cubicle hxw = 2200 x 900mm degree of protection ip40 | Заказать |
| 120794 | 8MC3046 | symmet.divided double wing door instead of single wing door for cubicle hxw = 1800 x 800mm degree of protection ip55 | Заказать |
| 74214 | 8MC3047 | symmet.divided double wing door instead of single wing door for cubicle hxw = 1800 x 900mm degree of protection ip55 | Заказать |
| 120795 | 8MC3048 | symmet.divided double wing door instead of single wing door for cubicle hxw = 2000 x 800mm degree of protection ip55 | Заказать |
| 74215 | 8MC3050 | symmet.divided double wing door instead of single wing door for cubicle hxw = 2000 x 900mm degree of protection ip55 | Заказать |
| 120796 | 8MC3051 | symmet.divided double wing door instead of single wing door for cubicle hxw = 2200 x 800mm degree of protection ip55 | Заказать |
| 120797 | 8MC3052 | symmet.divided double wing door instead of single wing door for cubicle hxw = 2200 x 900mm degree of protection ip55 | Заказать |
| 121324 | 8MF3040 | symmet.divided double wing door instead of single wing door for cubicle hxw = 1800 x 800mm degree of protection ip40 | Заказать |
| 74729 | 8MF3041 | symmet.divided double wing door instead of single wing door for cubicle hxw = 1800 x 900mm degree of protection ip40 | Заказать |
| 121325 | 8MF3042 | symmet.divided double wing door instead of single wing door for cubicle hxw = 2000 x 800mm degree of protection ip40 | Заказать |
| 74730 | 8MF3043 | symmet.divided double wing door instead of single wing door for cubicle hxw = 2000 x 900mm degree of protection ip40 | Заказать |
| 121326 | 8MF3044 | symmet.divided double wing door instead of single wing door for cubicle hxw = 2200 x 800mm degree of protection ip40 | Заказать |
| 74731 | 8MF3045 | symmet.divided double wing door instead of single wing door for cubicle hxw = 2200 x 900mm degree of protection ip40 | Заказать |
| 74732 | 8MF3046 | symmet.divided double wing door instead of single wing door for cubicle hxw = 1800 x 800mm degree of protection ip55 | Заказать |
| 74733 | 8MF3047 | symmet.divided double wing door instead of single wing door for cubicle hxw = 1800 x 900mm degree of protection ip55 | Заказать |
| 74734 | 8MF3048 | symmet.divided double wing door instead of single wing door for cubicle hxw = 2000 x 800mm degree of protection ip55 | Заказать |
| 74735 | 8MF3050 | symmet.divided double wing door instead of single wing door for cubicle hxw = 2000 x 900mm degree of protection ip55 | Заказать |
| 121327 | 8MF3051 | symmet.divided double wing door instead of single wing door for cubicle hxw = 2200 x 800mm degree of protection ip55 | Заказать |
| 74736 | 8MF3052 | symmet.divided double wing door instead of single wing door for cubicle hxw = 2200 x 900mm degree of protection ip55 | Заказать |
