19" rack unit производства Siemens

OXYMAT 61, 19" rack unit

General information

Measuring ranges

4, internally and externally switchable; autoranging is also possible

Smallest possible span (relating to sample gas pressure 1 000 hPa absolute, 0.5 l/min sample gas flow and 25 °C ambient temperature)

2 vol. % or 5 vol. % O₂

Largest possible measuring span

100 vol. % O₂

Measuring ranges with suppressed zero point

Any zero point within 0 ... 100 vol.% can be implemented, provided that a suitable reference gas is used

Operating position

Front wall, vertical

Conformity

CE mark in accordance with EN 50081-1, EN 50082-2

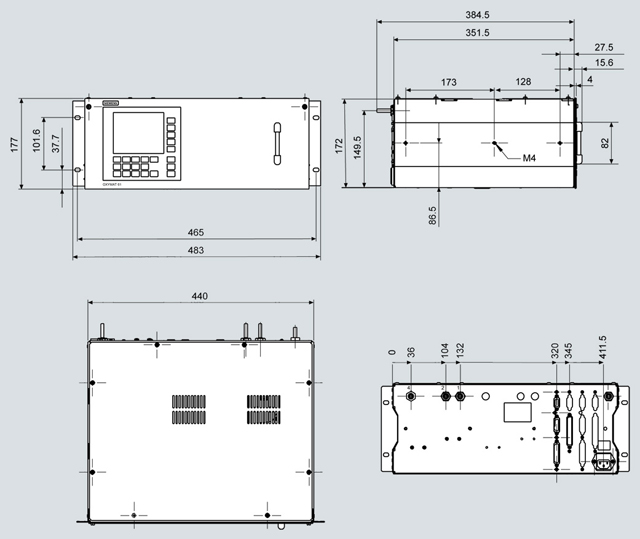

Design, enclosure

Degree of protection

IP20 according to EN 60529

Weight

Approx. 13 kg

Electrical characteristics

Power supply

100 … 120 V AC (nominal range of use 90 … 132 V), 47 … 63 Hz or
200 … 240 V AC (nominal range of use 180 … 264 V), 47 … 63 Hz

Power consumption

Approx. 37 VA

EMC (Electromagnetic Compatibility)

In accordance with standard requirements of NAMUR NE21 (08/98)

Electrical safety

According to EN 61010-1, overvoltage category III

Fuse values

100 ... 120 V: 1.0 T/250

200 ... 240 V: 0.63 T/250

Gas inlet conditions

Permissible sample gas pressure

• External reference gas supply

800 … 1 200 hPa absolute

• With integrated pump

Atmospheric pressure ±50 hPa

Sample gas flow

18 … 60 l/h (0.3 … 1 l/min)

Sample gas temperature

Min. 0 to max. 50 °C, but above the dew point

Sample gas humidity

< 90% relative humidity

Reference gas pressure (high-pressure version)

2 000 ... 4 000 hPa above sample gas pressure, but max. 5 000 hPa absolute (version without reference gas pump)

Reference gas pressure (low-pressure version) with external pump

Min. 100 hPa above sample gas pressure

Dynamic response

Warm-up period

At room temperature < 30 min (the technical specification will be met after 2 hours)

Delayed display (T₉₀)

3.5 s

Damping (electrical time constant)

0 … 100 s, parameterizable

Dead time (purging time of the gas path in the unit at 1 l/min)

Approximately 0.5 ... 2.5 s, depending on version

Time for device-internal signal processing

< 1 s

Pressure correction range

Pressure sensor internal

500 … 2 000 hPa, absolute
(see gas inlet conditions for permissible sample gas pressure)

Measuring response (relating to sample gas pressure 1 013 hPa absolute, 0.5 l/min sample gas flow and 25 °C ambient temperature)

Output signal fluctuation

< ± 0.75% of the smallest possible measuring range according to rating plate, with electronic damping constant of 1 s (corresponds to ±0.25% at 2 σ)

Zero point drift

< ± 0.5%/month of the smallest possible span according to rating plate

Measured-value drift

< ±0.5 %/month of the current measuring range

Repeatability

< 1% of the current measuring range

Detection limit

1 % of the current measuring range

Linearity error

< 1% of the current measuring range

Influencing variable (relating to sample gas pressure 1 013 hPa absolute, 0.5 l/min sample gas flow and 25 °C ambient temperature)

Ambient temperature

< 2 %/10 K with span 5%

Sample gas pressure (with air (100 hPa) as internal reference gas supply, correction of the atmospheric pressure fluctuations is only possible if the sample gas can vent to ambient air.)

• When pressure compensation has been switched off: < 2 % of the current measuring range/1 % pressure change
• When pressure compensation has been switched on: < 0.2 % of the current measuring range/1 % pressure change

Accompanying gases

Deviation from zero point corresponding to paramagnetic or diamagnetic deviation of accompanying gas (see table)

Sample gas flow at zero point

< 1% of the current measuring range according to rating plate with a change in flow of 0.1 l/min within the permissible flow range

Power supply

< 0.1% of the current measuring range with rated voltage ± 10%

Electrical inputs and outputs

Analog output

0/2/4 … 20 mA, isolated; max. load 750 Ω

Relay outputs

6, with changeover contacts, freely parameterizable, e.g. for measuring range identification; load: 24 V AC/DC/1 A, potential-free

Analog inputs

2, dimensioned for 0/2/4 … 20 mA for external pressure sensor and accompanying gas influence correction (correction of cross-interference)

Binary inputs

6, designed for 24 V, isolated, freely parameterizable, e.g. for measuring range switchover

Serial interface

RS 485

Options

AUTOCAL function with 8 additional binary inputs and relay outputs, also with PROFIBUS PA or PROFIBUS DP

Climatic conditions

Permissible ambient temperature

-30 … +70 °C during storage and transportation
5 … 45 °C during operation

Permissible humidity

< 90% relative humidity as annual average, during storage and transportation (must not fall below dew point)
