The electronics modules of the SIMATIC ET 200iSP distributed I/O system equipped with safety functions can be used together with the safety-related automation systems of the SIMATIC PCS 7 process control system for the implementation of safety applications. The input modules record the process signals, evaluate them, and prepare them for addional processing by the automation system. The output modules convert the safety-related signals output by the automation systems so that they are suitable for controlling the connected actuators.
F digital input modules

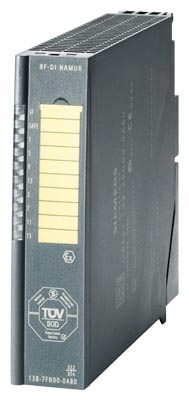

- 8 F-DI Ex NAMUR
Safety-related digital input module for evaluating the signals from IEC 60947‑5‑6/NAMUR sensors and connected/non-connected mechanical contacts in hazardous and non-hazardous areas- SIL 3/Cat. 3/PLe with 8 inputs (1-channel/1oo1 evaluation) or 4 inputs (2-channel/1oo2 evaluation)
- 8 short-circuit-proof sensor supplies (8 V DC) for 1 channel each
- Inputs and sensor supplies electrically isolated from power bus and backplane bus
- Diagnostics evaluation (deactivated for non-connected mechanical contacts)
- Internal diagnostics buffer
- Programmable diagnostics interrupt
- Support of time stamping
- Channel-selective passivation
- Firmware update using HW Config possible
- Exclusively for safety mode
- LED displays for safety mode, group errors and channel status/fault
F digital output modules
- 4 F-DO Ex DC 17.4 V/40 mA
Safety-related digital output module for controlling actuators in hazardous and non-hazardous areas, e.g. solenoid valves, DC current relays or indicator lamps- SIL 3/Cat. 3/PLe with 4 outputs, P/P-switching
- Electrical isolation from power bus and backplane bus
- Rated load voltage 17.4 V DC
- Max. output current 40 mA
- Performance enhancement through parallel connection of two digital outputs for one actuator
- Short-circuit, overload and wire-break monitoring
- Configurable diagnostics
- Internal diagnostics buffer
- Programmable diagnostics interrupt
- Channel-selective passivation
- Firmware update using HW Config possible
- Exclusively for safety mode
- LED displays for safety mode, group errors and channel status/fault
F analog input modules
- 4 F-AI Ex HART (0 ... 20 mA or 4 ... 20 mA)
Safety-related digital input module for evaluating the signals from current sensors in hazardous and non-hazardous areas, e.g. 2-wire transmitters and HART field devices - SIL 3/Cat. 3/PLe with 4 inputs of one module (1-channel/1oo1 evaluation) or 4 inputs of two modules (2-channel/1oo2 evaluation)
- Measuring ranges: 0 ... 20 mA or 4 ... 20 mA
- Resolution 15 bit + sign
- HART communication in measuring range 4 ... 20 mA
- 4 short-circuit-proof sensor supplies (min. 12 V DC; max. 26 V DC) for 1 channel each
- Inputs and sensor supplies electrically isolated from backplane bus
- Configurable diagnostics
- Programmable diagnostics interrupt
- Internal diagnostics buffer
- Firmware update using HW Config possible
- Exclusively for safety mode
- LED displays for safety mode, group errors, channel faults and HART status per channel
- The safety-related electronics modules are installed on terminal modules which must be additionally ordered.
- The safety-related electronics modules are plugged as planned onto terminal modules using screw-type systems (TM‑EM/EM60S) or spring-loaded systems (TM‑EM/EM60C).
- Using a spare module plugged onto a terminal module TM‑EM/EM60S or TM‑EM/EM60C, you can reserve a slot for an safety-related electronics module or close a gap resulting from the design. The spare module can be simply replaced by the envisaged electronics module at a later point in time.
- The mechanical coding of the terminal module which is carried out when an electronics module is plugged on for the first time prevents the connection of incorrect replacement modules.
- Hot swapping of individual modules is possible under hazardous conditions.
- The process signals are connected to the terminals of the terminal modules assigned according to the plan, using either conventional screw-type or spring-loaded systems (conductor cross-sections 0.14 mm² to max. 2.5 mm²) depending on the type of module.
