Mouse and keyboard производства Siemens

Mouse and keyboard

Mouse

SIMATIC PC mouse



Designation

SIMATIC PC mouse, USB

Interfaces

USB; PS/2 via USB-PS/2 adapter

Weight, approx.

147 g

Connecting cable

1,83 m long, USB plug

Approvals corresponding to office environment

  • FCC Declaration of Conformity (USA)
  • UL and cUL Notice of Approval (USA and Canada)
  • CES-003 report on file (Canada)
  • TÜV-GS Certificate (Germany)
  • CE Declaration of Conformity
  • Safety and EMC (EU)
  • GOST Certificate (Russia)
  • VCCI Certificate (Japan)
  • ACA/MED Declaration of Conformity (Australia and New Zealand)
  • BSMI Certificate (Taiwan)
  • MIC Certificate (Korea)
  • NOM Certificates (Mexico)
  • CB Scheme Certificate (International)
  • WHQL (International) ID: 866988

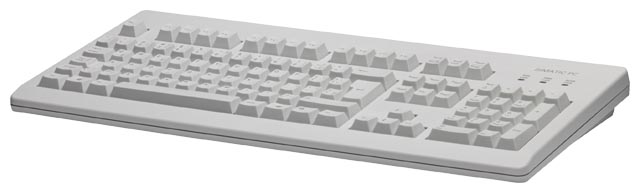

Keyboard

SIMATIC PC keyboard



Designation

SIMATIC PC keyboard, USB

Layout

MF2, 105 keys, German/international

Interfaces

USB; PS/2 via USB-PS/2 adapter

Dimensions (L x W x H) in mm

470 x 195 x 44

Weight, approx.

1.4 kg

Connecting cable

1.75 m long, USB plug

Temperature



  • Operation

0 ... +50 °C

  • Storage/transport

-20 ... +60 °C

Approvals

FCC, cURus, GS, CE, c-tick, GOST-R


Mouse

SIMATIC PCS 7 industrial workstations (with the exception of type IPC547C), SIMATIC PCS 7 compact systems as well as OS Clients based on SIMATIC BOX/Microbox PC are delivered without a mouse.

The SIMATIC PC mouse is recommended as the input device for the operator-controlled stations of a SIMATIC PCS 7 system; it is characterized by the following features:

  • Optical technology
  • Ergonomic design
  • Convenient for right-handers and left-handers
  • Practical scroll wheel

Equipped with a USB connection, can also be used on a PS/2 interface together with the supplied USB-PS/2 adapter.

Keyboard

SIMATIC PCS 7 industrial workstations, SIMATIC PCS 7 compact systems as well as OS Clients based on SIMATIC BOX and Microbox PC are delivered without a keyboard.

A keyboard without additional special functions which is suitable for process operation with SIMATIC PCS 7 is e.g. the SIMATIC PC keyboard with USB connection and German/international key assignment.

The SIMATIC PC keyboard is a stable, standard MF2 keyboard with 105 keys, and can also be used on a PS/2 interface together with the supplied USB-PS/2 adapter. It combines the convenience of an office keyboard with the rugged design of an industrial device.

Код Заказной номер Описание Вес (кг) Заказать
110837 6ES7648-0CB00-0YA0 клавиатура для pcs7 os/es, интерфейс usb, международная/немецкая раскладка клавиатуры 0.5 Заказать
63103 6ES7790-0AA01-0XA0 simatic s7, usb мышь для программаторов simatic pg и компьютеров, оптическая, 3-кнопочная, с адаптером ps/2 0.2 Заказать
;
