SIMATIC Microbox PC производства Siemens

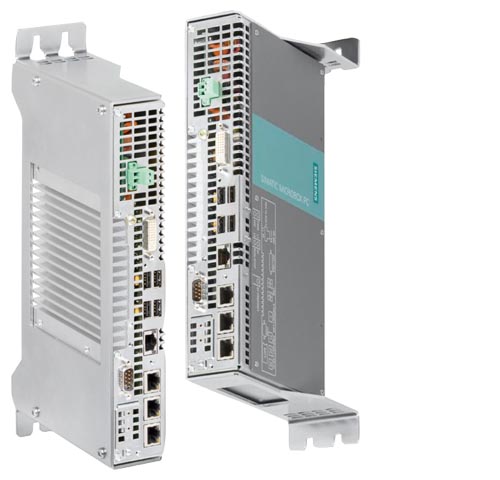

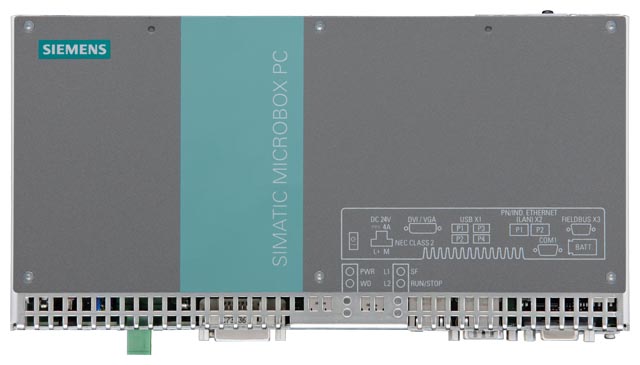

SIMATIC IPC427C (Microbox), SIMATIC PCS 7 OS Client 427C version

Design and equipment features

Design

• DIN rail or wall mounting; horizontal (preferred) or vertical
• Portrait assembly; vertical

Degree of protection to EN 60529

IP20

CPU

• Processor

Intel Pentium Core 2 Duo 1.2 GHz

• Front Side Bus

800 MHz

• Second Level Cache

3 MB

Chipset

Intel GM45/ICH9M

Main memory

1024 MB DDR3-SDRAM SO-DIMM modules

Graphic

• Graphic controller

Intel GMA4500 integrated in the chipset

• Graphics memory

32 ... 256 MB shared memory

• Resolutions/frequencies

• CRT

Up to 1920 x 1200, 60 ... 120 Hz

• DVI

Up to 1920 x 1200, 60 Hz

Drives, alternative

• Hard disk drive

1 x 2.5" SATA-HDD

• Solid State Disk

1 x 2.5" SATA-SSD

• CD-ROM/DVD‑RW/diskette

Connectable via USB (not included in scope of delivery)

Interfaces

• Ethernet

2 x Ethernet port (RJ45) Intel 82574L
10/100/1000 Mbps, isolated, two independent controllers, teaming-capable

• USB

4 x USB 2.0/high-speed

• Serial

1 x COM1 RS 232, 115 kbit/s max., 9-contact Sub-D connector

• Parallel

‑

• Graphics connection

1 x DVI-I (DVI/VGA combined)

• DVI: Digital
• VGA: Analog

• Keyboard/mouse

Connectable via USB (not included in scope of delivery)

LED displays

• Power
• Watchdog

Operating system / basic software

Operating system

Windows XP Professional MUI
operating system
(German, English, French, Italian, Spanish, Chinese)

System-tested SIMATIC industrial software

SIMATIC PC DiagMonitor integrated in preinstallation

Monitoring / diagnostics functions

Watchdog

• Monitoring of program execution
• Restart can be parameterized following faults
• Monitoring time adjustable in the software

Temperature

• Processor
• Motherboard

(via SIMATIC PC DiagMonitor and SIMATIC PCS 7 Asset Management)

Runtime meter

(via SIMATIC PC DiagMonitor and SIMATIC PCS 7 Asset Management)

Safety

Protection class

Protection class I in accordance with IEC 61140

Safety directives

EN 60950-1; UL 60950; CAN/CSA-C22.2 No. 60950-1; UL 508;CAN/CSA-C22.2 No. 142 or CAN/CSA-C22.2 No. 14-05

Noise level

Operation

< 40 dB (A) to DIN 45635‑1

Electromagnetic compatibility (EMC)

Radiated interference

EN 61000‑6‑3 , EN 61000‑6‑4, CISPR22:2004 Class B; FCC Class A

Immunity to conducted interference on the supply lines

± 2 kV (to IEC 61000-4‑4; burst)

± 1 kV (to IEC 61000-4‑5; symmetrical surge)

± 2 kV (to IEC 61000-4‑5; asymmetrical surge)

Immunity to interference on signal lines

± 1 kV (to IEC 61000-4‑4; burst; length < 3 m)

± 2 kV (to IEC 61000-4‑4; burst; length > 3 m)

± 2 kV (to IEC 61000-4‑5; surge; length > 30 m)

Immunity to static discharge

± 6 kV contact discharge (to IEC 61000‑4‑2)

± 8 kV air discharge (to IEC 61000‑4‑2)

Immunity to high-frequency irradiation

10 V/m, 80 to 1 000 MHz and 1.4 to 2 GHz, 80 % AM (to IEC 61000‑4‑3)

1 V/m, 2 to 2.7 GHz, 80 % AM (to IEC 61000‑4‑3)

10 V, 10 kHz to 80 MHz, 80 % AM (to IEC 61000‑4‑6)

Immunity to magnetic fields

100 A/m rms value 50/60 Hz to IEC 61000‑4‑8

Climatic conditions

Temperature

Tested according to IEC 60068‑2‑1, IEC 60068‑2‑2, IEC 60068‑2‑14

• Operation

• Horizontal mounting position

• Operation with hard disk:
  with max. 3 expansion modules (max. load 9 W): +5 to +40 °C
• Operation with SSD:
  with max. 3 expansion modules (max. load 9 W): 0 to +45 °C
• Operation with SSD in RAL¹⁾ with max. 3 expansion modules
  (max. load 9 W): 0 to +50 °C

• Vertical / portrait mounting position

• Operation with hard disk
  with max. 3 expansion modules (max. load 9 W): +5 to +40 °C
• Operation with SSD in RAL¹⁾ with max. 3 expansion modules (max. load 9 W): 0 to +45 °C

• Horizontal mounting position

• Operation with SSD
  without expansion modules: 0 to +40 °C

• Storage/transport

-40 ... +60 °C (HDD) or
-40 ... +70 °C (SSD)

• Gradient

Operation: Max. 10 °C/h;
storage: 20 °C/h; no condensation

Relative humidity

Tested according to IEC 60068‑2‑78, IEC 60068‑2‑30

• Operation

5 ... 80% at 25 °C (no condensation)

• Storage/transport

5 ... 95 % at 25 °C (no condensation)

Mechanical environmental conditions

Vibrations

Tested according to IEC 60068-2-6

• Operation

• With SSD

5 ... 9 Hz: 3.5 mm

9 ... 500 Hz: 9.8 m/s²

• With hard disk and wall installation

10 ... 58 Hz: 0.0375 mm

58 ... 200 Hz: 4.9 m/s²

• With hard disk and DIN rail mounting or vertical installation

Starting prohibited

• Storage/transport

5 ... 9 Hz: 3.5 mm,
9 to 500 Hz: 9.8 m/s²

Shock

Tested according to IEC 60068‑2‑27

• Operation

Without hard disk drive: 150 m/s², 11 ms;
with hard disk drive: 50 m/s², 30 ms

• Storage/transport

250 m/s², 6 ms

Standards, specifications, approvals

Residential area, business and commercial operations, and small businesses

• Radiated interference

EN 61000-6-3: 2007

• Noise immunity

EN 61000-6-1: 2007

CE industrial environment

• Radiated interference

EN 61000-6-4: 2007

• Noise immunity

EN 61000-6-2: 2005

cULus

Underwriters Laboratories (UL) compliant with Standard UL 60950‑1, File E115352 and Canadian National Standard CAN/CSA‑C22.2 No. 60950‑1 (I.T.E) or with UL 508, File E85972 and Canadian National Standard CAN/CSA‑C22.2 No. 142 (IND.CONT.EQ) or with Canadian National Standard CAN/CSA‑C22.2 No. 14‑05

Ship specifications for SIMATIC PCS 7 OS Client 427C (SSD)

• Shipping Europe of American Bureau Ltd. (ABS)

Yes

• Bureau Veritas (BV)

Yes

• Det Norske Veritas (DNV)

Yes

• Germanischer Lloyd (GL)

Yes

• Lloyds Register of Shipping (LRS)

Yes

• Nippon Kaiji Kyokai (NK)

Yes

Special features

Quality assurance

according to ISO 9001

Power supply (electrically isolated)

Supply voltage

24 V DC (19.2 ... 28.8 V)

Short-term voltage dip

Min. 15 ms (at 20.4 V)

Max. 10 events per hour;
recovery time of at least 1 s

Max. current consumption (at 24 V DC)

4 A (at 24 V)

Dimensions and weights

Dimensions (W x H x D in mm)

262 x 142 x 47

Weight

Approx. 2 kg
