The SIMATIC PCS 7 BOX OS Client 627C based on the SIMATIC Box PC of type SIMATIC IPC627C can be used within the SIMATIC PCS 7 process control system as OS Client or SIMATIC BATCH client. For these applications it is an alternative to clients based on a SIMATIC Microbox PC or SIMATIC Rack PC.
The compact and rugged SIMATIC PCS 7 BOX OS Client 627C with a comparable interface configuration is slightly larger and heavier than a client on the basis of the SIMATIC Microbox PC. In return, it is additionally equipped with a DVD drive and two free slots for expansion modules.
SIMATIC IPC627C, SIMATIC PCS 7 BOX OS Client 627C version | Standard design | Panel front design |
|---|---|---|
Design and equipment features | ||
Design | Rack-mountable device with rugged metal enclosure, suitable for wall and portrait mounting | Rack-mounted device with rugged metal enclosure and panel front, suitable for mounting in control cabinets, enclosures, consoles and pivoted arms; max. mounting angle ± 20° from the vertical |
Degree of protection | IP20 | Computer unit and rear of panel IP20; panel front: |
Processor | Intel Core™ i7-610E mobile processor 2.53 GHz 4 MB second level cache, 2 cores /4 threads, Hyper-Threading, Turbo Boost | |
Chipset | Mobile Intel QM57 Express Chipset | |
Main memory | ||
| DDR3-1066 SDRAM | |
| 4 GB DDR3 SDRAM (2 sockets) | |
| 2 GB DDR3 SDRAM (2 x 1 GB) | |
Graphics | ||
| Intel HD graphics controller 2-D and 3-D engine integrated in chipset | |
| Dynamic Video Memory | |
| ||
| Up to 1280 x 1024 at 100 Hz / 32-bit color depth Maximum resolution: | |
| LCD via DVI-I: | |
| – | 19" TFT touch panel |
| – | 1280 x 1024 |
| – | 700:1 |
| – | 300 |
| – | 80°/80° |
Free expansion slots | 1 x PCI | |
Drives | ||
| 3.5" SATA, 250 GB | |
| Slim-line SATA DVD±R/RW | |
| Connectable via USB (not included in scope of delivery) | |
Interfaces | ||
PROFIBUS/MPI | ||
| 1 x 9-contact Sub-D socket, CP 5611-compatible (limited to 32 bytes of consistent data transmission in operation with WinAC RTX 2010) | |
| 9.6 Kbps to 12 Mbps, configured per software | |
|
| |
| Shielding of the DP12 connection line | |
Ethernet | 2 x 10/100/1000 Mbit (RJ45), Intel 82574 L and Intel 82577 L | |
USB | ||
| 4 x USB 2.0 (max. 2 high-current at the same time) | |
| 1 x USB 2.0 high-current | |
Serial | 1 x COM1 (V.24), 9‑contact Sub‑D connector | |
Parallel | – | |
Graphics connection | 1 x DVI-I (DVI/VGA combined): DVI digital | |
Keyboard/mouse | Connectable via USB (keyboard and mouse not included in scope of delivery) | |
Operating system and diagnostics software | ||
Operating system | Windows XP Professional MUI preinstalled on hard disk and enclosed on restore DVD, no activation necessary | |
System-tested SIMATIC industrial software | SIMATIC PC DiagMonitor | |
Monitoring/diagnostics functions | ||
Temperature |
| |
Fans |
| |
Operating hours counter | Via SIMATIC DiagMonitor | |
Displays |
| – |
Safety | ||
Protection class | Protection class I compliant with IEC 61140 | |
Safety directives | ||
| EN 60950‑1; UL 60950‑1; CAN/CSA C22.2 | |
| EN 61131‑2; UL 508; CSA C22.2 No. 142 | |
Noise level | ||
Operation | < 55 dB(A) according to EN ISO 7779 | < 55 dB(A) to DIN 45635‑1 |
Electromagnetic compatibility (EMC) | ||
Interference emission | EN 61000-6-3, EN 61000‑3‑2 Class D EN 61000-3-3; FCC Class A | EN 61000‑6‑4 Class A EN 61000‑3‑3; FCC Class A |
Immunity to conducted interference on the supply lines | ± 2 kV (to IEC 61000‑4‑4; Burst) ± 1 kV (to IEC 61000‑4‑5; symmetrical surge) ± 2 kV (to IEC 61000‑4‑5; asymmetrical surge) | |
Immunity to interference on signal lines | ± 1 kV; (to IEC 61000‑4‑4; Burst; length < 30 m) ± 2 kV; (to IEC 61000‑4‑4; Burst; length > 30 m) ± 2 kV; (to IEC 61000‑4‑5; Surge; length > 30 m) | |
Immunity to static discharge | ± 6 kV contact discharge (to IEC 61000‑4‑2) ± 8 kV air discharge (to IEC 61000‑4‑2) | |
Immunity to high-frequency irradiation | 10 V/m, 80 ... 1 000 MHz and 1.4 ... 2 GHz, 80% AM (to IEC 61000‑4‑3) 1 V/m, 2 ... 2.7 GHz, 80% AM (to IEC 61000‑4‑3) 10 V, 10 kHz ... 80 MHz (to IEC 61000‑4‑6) | |
Immunity to magnetic fields | 100 A/m, 50 Hz (to IEC 61000‑4‑6) | |
Climatic conditions | ||
Temperature | Tested according to IEC 60068‑2‑1, IEC 60068‑2‑2, IEC 60068‑2‑14 | |
|
| – |
| ||
| – |
|
| – |
|
| -20 ... +60 °C | |
| ||
| Max. 10 °C/h | |
| 20 °C/h, no condensation | |
Relative humidity | Tested according to IEC 60068-2-78, IEC 60068-2-30 | |
| 5 ... 80 % at 25 °C (no condensation) | |
| 5 ... 95% at 25 °C (no condensation) | |
Atmospheric pressure | ||
| 1 080 to 795 hPa | |
| 1 080 to 660 hPa | |
Mechanical environmental conditions | ||
Vibrations | Tested according to IEC 60068‑2‑6 | |
| 10 … 58 Hz: 0.075 mm, 58 ... 500 Hz: 9.8 m/s² | |
Limitation with DVD writer: | ||
Limitation with portrait assembly: | – | |
| 5 … 9 Hz: 3.5 mm, 9 … 500 Hz: 9.8 m/s² | |
Shock | Tested according to IEC 60068‑2‑27, IEC 60068‑2‑29 | |
| 50 m/s², 30 ms | |
Limitation with portrait assembly: | – | |
| 250 m/s², 6 ms | |
Standards, specifications, approvals | ||
CE - Residential, business and commercial operations, and small businesses | ||
| EN 61000-6-3: 2007 | |
| EN 61000-6-1: 2007 | |
CE industrial environment | ||
| EN 61000-6-4: 2007 | |
| EN 61000-6-2: 2005 | |
cULus | Underwriters Laboratories (UL) to Standard UL 60950‑1, Report E11 5352 and Canadian Standard C22.2 No. 60950-1 (I.T.E) or to UL 508 and C22.2 No. 142 (IND.CONT.EQ) | |
Special features | ||
Quality assurance | According to ISO 9001 | |
Power supply | ||
Supply voltage (AC) | Nominal 100 ... 240 V AC (-15 %/+10%), autorange | |
Supply voltage (DC) | Nominal 24 V DC (-20 %/+20 %), SELV | |
AC input current | Continuous current up to 2.3 A (up to 50 A for 1 ms at startup) | |
DC input current | Continuous current up to 8 A (up to 14 A for 30 ms at startup) | |
Brief voltage interruption according to NAMUR | Max. 20 ms (at 93 to 264 V) (max. 10 events per hour; recovery time of at least 1 s) | |
Max. power consumption | ||
| 190 W | |
| 250 VA | |
Dimensions and weights | ||
External dimensions including DVD writer (W x H x D) in mm | 297 x 267 x 100 | 483 x 400 x 162 |
Mounting cutout (W x H in mm) | – | 450 x 380 |
Mounting depth including DVD writer (D in mm) | – | 151 |
Weight | ||
| Approx. 7 kg | approx. 16.8 kg |
| – | 9.8 kg |
System software and licenses | ||
SIMATIC PCS 7 BOX RTX ES/OS system |
| |
PCS 7 BOX RTX OS Runtime |
| |
SIMATIC PCS 7 BOX ES/OS system |
| |
SIMATIC PCS 7 BOX OS Runtime |
| |
Restore DVDs/preinstallation |
| |
The SIMATIC IPC627C industrial PC serving as a platform for the SIMATIC PCS 7 BOX OS Client 627C, can be used in accordance with its CE marking in industrial environments as well as in domestic, business and commercial environments.
The SIMATIC Box PC based on Intel Core i7 processor technology particularly convinces with the following properties and equipment features:
With the SIMATIC PCS 7 BOX OS Client 627C in standard design, operation and monitoring are via separate control units (mouse, keyboard, process monitor), which must be additionally ordered. In addition to the mouse and keyboard, two additional input/output devices can be externally connected via the existing USB ports, e.g. 3.5" diskette drive or USB chipcard reader.
A process monitor with analog (VGA) or digital (DVI) connection can be operated at the DVI-I port. The adapter cable required for the analog VGA connection belongs to the scope of delivery of the SIMATIC PCS 7 BOX OS Client 627C.
The selection of the process monitor depends on the technical data of the integrated graphics as well as the image formats and resolutions which are adjustable in the project editor the OS software (see section Operator System, OS Software, Introduction).
The SIMATIC PCS 7 BOX OS Client 627C can also be ordered with Panel Front. The difference compared to the standard design is that a 19" TFT Touch Panel is connected permanently to the SIMATIC Box PC. The 19" TFT Touch Panel supports a resolution of 1280 x 1024 pixels.

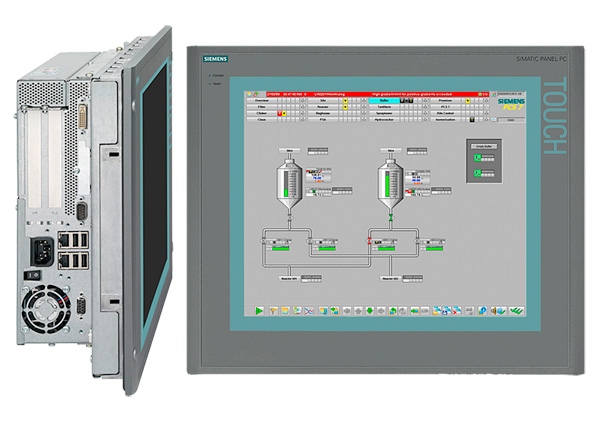

SIMATIC PCS 7 BOX with Panel Front, side and front views
On delivery, the following software is preinstalled on the SIMATIC PCS 7 BOX OS Client 627C:

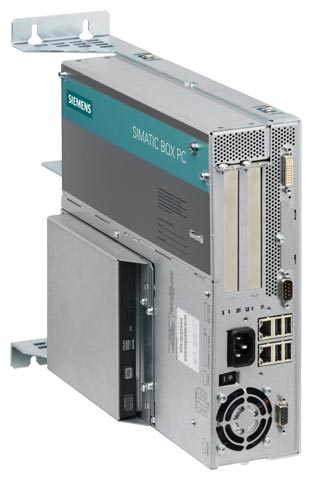

SIMATIC PCS 7 BOX with portrait installation kit, interfaces at front
The portrait installation kit allows space-saving installation in the control cabinet. It is available in two models:
Mounting area required (W x H in mm) | |
|---|---|
| 298 x 301 |
| 100 x 316 |
| 100 x 392 |
Together with the kit, the SIMATIC PCS 7 BOX OS Client occupies a mounting depth of 365 mm (Kit 1) or 279 mm (Kit 2) in the control cabinet. The limitations associated with portrait assembly regarding vibration and shock resistance are relatively small (see technical specifications).
Since all interfaces are accessible from the front when using Kit 1, this type of assembly is particularly suitable for commissioning and servicing.
Please observe the information on operation planning and device installation in the manual of the SIMATIC IPC627C in conjunction with the use of portrait assembly kits.
