SIMATIC HMI Net Panel производства Siemens

The SIMATIC HMI Net Panel is designed for demanding large-scale displays in the industrial environment.

It is based on rugged, reliable PC technology with interfaces for easy, cost-efficient integration in existing networks and offers maximum flexibility for positioning and mounting.

The large LC display with LED backlight, continuous operation round-the-clock, and full PC openness makes the large-scale display ideal for use as an industrial manufacturing display, add-on system, multimedia display, process visualization system, railway station and airport display (check-in, gate, baggage claim, advertising display) or at trade fairs, in shopping centers, hotels, museums and more.

• High degree of system availability due to maintenance-free industrial design with IP65 degree of protection for continuous 24-hour operation
• High security of investment due to rugged industrial products from SIMATIC that will remain available over the long term
• Reduced costs through low-wear and power-saving LED backlight and anti image sticking function
• Easy, cost-efficient integration in a standard network environment without VGA/DVI/HDMI extensions or expensive video signal extenders
• Optionally available with audio module and loudspeaker for sound output
• Flexible mounting on support arm systems, wall and ceiling, as well as back-to-back mounting and with an angle of inclination of up to 20° from the vertical
• Remote Control Software (locally on the device and remotely from the network) for the easy parameterization of
  • Brightness
  • Deactivation of backlighting
  • Status messages of display
  • Speaker control
• WinCC flexible 2008 SP2 support (IPC427C with 1920 x 1080 resolution)
• Optional:
  Remote Operate Software for presenting the contents of multiple screens on up to 4 Net Panels via a WinCC Server with sound support for the selective playing of Wave or MP3 formats on different Net Panels

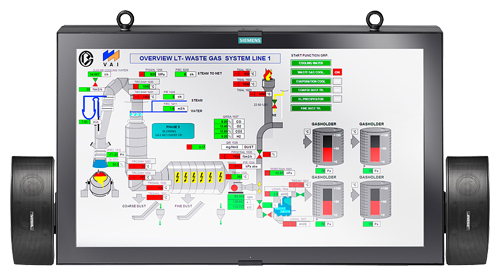

The SIMATIC HMI Net Panel is a rugged display system with an integrated industrial PC and optional audio and loudspeaker equipment.

• LCD display with 1920 x 1080 pixel full HD resolution
• Power saving and long-life LED backlight
• Integral SIMATIC industrial PC
• Rugged and attractive device design with reduced enclosure depth
• Degree of protection IP65 all-round, industry compatible
• Solid, shatterproof front pane of 6 mm laminated glass
• Anti-glare front pane resistant to welding beads
• Safety eyebolts (removable as required) for additional protection against dropping in suspended installations
• Optional: adapter for Rose & Krieger FSK 50 support arm system
• Integrated wide-range power supply
• Rear connector for 1x USB (with IP65 protective cap), 1x Industrial Ethernet (M12 4-pin with protective cap)
• Rear Quick-On connection for integrated 100 - 240 V power supply (connector included in scope of delivery)
• Rear status indicator

Customized modification options on request.

Quotation preparation

SIMATIC HMI specialists define the product modifications precisely in accordance with customer requirements.

This is followed by drafting of a quote with:

• Non-recurring costs
• Prototype costs
• Standard unit prices
• and the marginal conditions in the form of a product agreement (e.g. minimum quantity).

The defined device can then be ordered easily using this product agreement and a customized order number.
