Voltage Monitoring производства Siemens

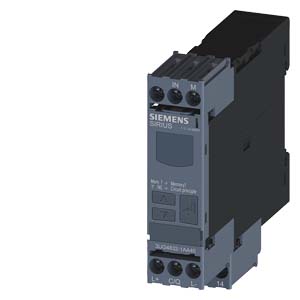

Voltage Monitoring

The relays monitor single-phase AC voltages (rms value) and DC voltages against the set limit value for overshoot and undershoot.

  • Protection of a plant against destruction due to overvoltage
  • Switch-on of a plant at a defined voltage and higher
  • Protection from undervoltage due to overloaded control supply voltages, particularly with battery power
  • Variably adjustable to overshoot, undershoot or range monitoring
  • Freely configurable delay times and RESET response
  • Width 22.5 mm
  • Display and transmission of actual value and status messages to controller
  • All versions with removable terminals
  • All versions with screw or spring-type terminals
  • Вес (кг) : 0.147
Код Заказной номер Описание Заказать
48804 3UG4832-1AA40 digital monitoring relay voltage monitoring, 22.5mm for io-link 10 to 600v ac/dc over- and undercurrent hysteresis 0.1 to 300v on delay time tripping delay time 1 change-over contact, screw terminal Заказать
99161 3UG4832-2AA40 digital monitoring relay voltage monitoring, 22.5mm for io-link 10 to 600v ac/dc over- and undercurrent hysteresis 0.1 to 300v on delay time tripping delay time 1 change-over contact, spring-loaded terminal Заказать
;
