Антенны производства Siemens

Order No.

6GK5 795-4MC00-0AA3

6GK5 795-4MD00-0AA3

6GK5 795-4MR00-0AA6

Product type designation

ANT795-4MC antenna

ANT795-4MD antenna

ANT795-4MR antenna

Radio frequencies

Radio frequency

• With WLAN in the 2.4 GHz frequency band

2.4 … 2.4835 GHz

2.4 … 2.4835 GHz

2.4 … 2.4835 GHz

• With WLAN in the 5 GHz frequency band 1

5.15 … 5.35 GHz

5.15 … 5.35 GHz

5.15 … 5.35 GHz

• With WLAN in the 5 GHz frequency band 2

5.725 … 5.85 GHz

5.725 … 5.85 GHz

5.725 … 5.85 GHz

Electrical specifications

Impedance

50 Ω

50 Ω

50 Ω

Polarization

Linear vertical

Linear vertical

Linear vertical

Radiation characteristic

Omnidirectional

Omnidirectional

Omnidirectional

Antenna gain compared with the isotropic radiator of the WLAN antenna

• In the 2.4 GHz frequency band

3 dB

3 dB

4 dB

• In the 5 GHz frequency band

5 dB

5 dB

5 dB

• With transmission frequency 5.2 GHz

• With transmission frequency 5.7 GHz

Maximum standing wave ratio

2

2

2

Beam angle of antenna

• In the 2.4 GHz frequency band

• Horizontal

360°

360°

360°

• Vertical

-

-

-

• In the 5 GHz frequency band

• Horizontal

360°

360°

360°

• Vertical

-

-

-

Note on beam angle

-

-

-

Number of electrical connections of the antenna

1 1

1 1

1 1

Design of electrical connection of the antenna

N connector, female, straight

N connector, female, 90° angle

R-SMA connector, male, 90° angle

Maximum angle of inclination down

0°

0°

0°

Crosstalk attenuation between the antenna connections

-

-

-

Front to back ratio

-

-

-

Maximum transmit power

-

-

-

Note on transmit power

-

-

-

Range with free view without hindrance

-

-

100 m

Note on range

-

-

Note: The range may be much less and depends on the spatial conditions, the wireless standard being used, the data rate, and the antenna at the opposite end

Permissible ambient conditions

Ambient temperature

• During operation

-20 … +65 °C

-20 … +65 °C

-20 … +65 °C

• During storage

-20 … +65 °C

-20 … +65 °C

-20 … +65 °C

• During transport

-20 … +65 °C

-20 … +65 °C

-20 … +65 °C

• During mounting

- -

- -

- -

IP degree of protection

IP65

IP65

IP65

Maximum wind load

-

-

-

Note on wind load

-

-

-

Design, dimensions and weights

Width

35 mm

35 mm

35 mm

Height

160 mm

160 mm

148 mm

Depth

13 mm

13 mm

13 mm

Diameter

-

-

-

Net weight

26 g

26 g

26 g

Type of mounting

-

-

-

• Mast mounting

No

No

No

• Wall mounting

No

No

No

• Ceiling mounting

No

No

No

• Directly on the device

Yes

Yes

Yes

Product properties, functions, componentsGeneral

Product property silicon-free

Yes

Yes

Yes

Material of the outer sleeve

Polycarbonate

Polycarbonate

Polycarbonate

Standards, specifications, approvals

Standard for hazardous zone

-

-

-

Certificate of suitability

-

-

-

• RoHS compliance

-

-

-

• Railroad application according to EN 50124-1

-

-

-

• Railroad application according to EN 50155

-

-

-

• UL approval

-

-

-

• Note

-

-

-

Wireless approval

Current country-specific approvals can be found on the Internet at www.siemens.com/funkzulassungen

Current country-specific approvals can be found on the Internet at www.siemens.com/funkzulassungen

Current country-specific approvals can be found on the Internet at www.siemens.com/funkzulassungen

Order No.

6GK5 795-4MA00-0AA3

6GK5 795-4MS00-0AA6

Product type designation

ANT795-4MA antenna

ANT795-4MS antenna

Radio frequencies

Radio frequency

• With WLAN in the 2.4 GHz frequency band

2.4 … 2.4835 GHz

2.4 … 2.4835 GHz

• With WLAN in the 5 GHz frequency band 1

5.15 … 5.35 GHz

5.15 … 5.35 GHz

• With WLAN in the 5 GHz frequency band 2

5.725 … 5.85 GHz

5.725 … 5.85 GHz

Electrical specifications

Impedance

50 Ω

50 Ω

Polarization

Linear vertical

Linear vertical

Radiation characteristic

Omnidirectional

Omnidirectional

Antenna gain compared with the isotropic radiator of the WLAN antenna

• In the 2.4 GHz frequency band

3 dB

3 dB

• In the 5 GHz frequency band

5 dB

5 dB

• With transmission frequency 5.2 GHz

• With transmission frequency 5.7 GHz

Maximum standing wave ratio

2

2

Beam angle of antenna

• In the 2.4 GHz frequency band

• Horizontal

360°

360°

• Vertical

-

-

• In the 5 GHz frequency band

• Horizontal

360°

360°

• Vertical

-

-

Note on beam angle

-

-

Number of electrical connections of the antenna

1 1

1 1

Design of electrical connection of the antenna

R-SMA connector, male, variable 0-90°

R-SMA connector, male

Maximum angle of inclination down

0°

0°

Crosstalk attenuation between the antenna connections

-

-

Front to back ratio

-

-

Maximum transmit power

-

-

Note on transmit power

-

-

Range with free view without hindrance

-

100 m

Note on range

-

Note: The range may be much less and depends on the spatial conditions, the wireless standard being used, the data rate, and the antenna at the opposite end

Permissible ambient conditions

Ambient temperature

• During operation

-20 … +65 °C

-20 … +65 °C

• During storage

-20 … +65 °C

-20 … +65 °C

• During transport

-20 … +65 °C

-20 … +65 °C

• During mounting

- -

- -

IP degree of protection

IP30

IP30

Maximum wind load

-

-

Note on wind load

-

-

Design, dimensions and weights

Width

35 mm

35 mm

Height

160 mm

160 mm

Depth

13 mm

13 mm

Diameter

-

-

Net weight

26 g

26 g

Type of mounting

-

-

• Mast mounting

No

No

• Wall mounting

No

No

• Ceiling mounting

No

No

• Directly on the device

Yes

Yes

Product properties, functions, componentsGeneral

Product property silicon-free

Yes

Yes

Material of the outer sleeve

Polycarbonate

Polycarbonate

Standards, specifications, approvals

Standard for hazardous zone

-

-

Certificate of suitability

-

-

• RoHS compliance

-

-

• Railroad application according to EN 50124-1

-

-

• Railroad application according to EN 50155

-

-

• UL approval

-

-

• Note

-

-

Wireless approval

Current country-specific approvals can be found on the Internet at www.siemens.com/funkzulassungen

Current country-specific approvals can be found on the Internet at www.siemens.com/funkzulassungen

Order No.

6GK5 792-6MN00-0AA6

6GK5  793-6MN00-0AA6

6GK5 795-6MN10-0AA6

6GK5 795-6MT00-0AA0

Product type designation

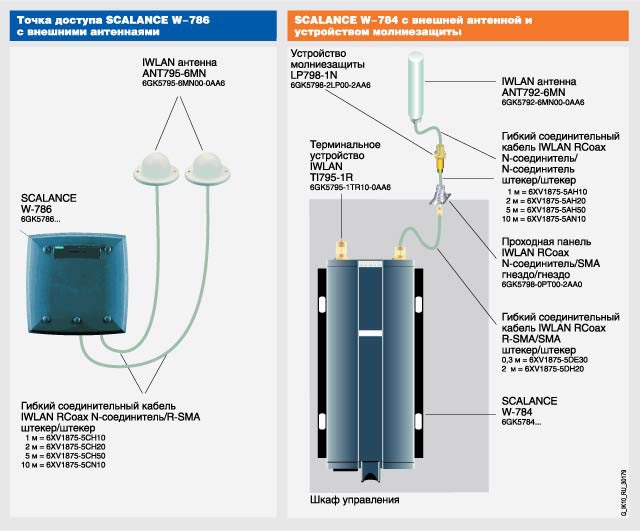

ANT792-6MN antenna

ANT793-6MN antenna

ANT795-6MN antenna

ANT795-6MT antenna

Radio frequencies

Radio frequency

• With WLAN in the 2.4 GHz frequency band

2.4 … 2.5 GHz

- -

2.4 … 2.7 GHz

2.4 … 2.69 GHz

• With WLAN in the 5 GHz frequency band 1

- -

5.15 … 5.875 GHz

3.4 … 3.7 GHz

5.15 … 5.35 GHz

• With WLAN in the 5 GHz frequency band 2

- -

- -

4.9 … 5.935 GHz

5.47 … 5.935 GHz

Electrical specifications

Impedance

50 Ω

50 Ω

50 Ω

50 Ω

Polarization

Linear vertical

Linear vertical

Linear vertical

3 ports: Linear vertical

Radiation characteristic

Omnidirectional

Omnidirectional

Omnidirectional

Omnidirectional

Antenna gain compared with the isotropic radiator of the WLAN antenna

• In the 2.4 GHz frequency band

6 dB

-

6 dB

4 dB

• In the 5 GHz frequency band

-

5 dB

8 dB

6 dB

• With transmission frequency 5.2 GHz

• With transmission frequency 5.7 GHz

Maximum standing wave ratio

1,8

1,5

1,8

1,5

Beam angle of antenna

• In the 2.4 GHz frequency band

• Horizontal

360°

-

360°

360°

• Vertical

30°

-

-

-

• In the 5 GHz frequency band

• Horizontal

-

360°

150°

360°

• Vertical

-

25°

-

-

Note on beam angle

-

-

Take note of antenna diagram

-

Number of electrical connections of the antenna

1 1

1 1

1 1

3 1

Design of electrical connection of the antenna

N connector, female

N connector, female

N connector, female

QMA socket

Maximum angle of inclination down

0°

0°

0°

0°

Crosstalk attenuation between the antenna connections

-

-

-

20 dB

Front to back ratio

-

-

-

-

Maximum transmit power

25 W

6 W

75 W

10 W

Note on transmit power

-

At 25° ambient temperature

At 25° ambient temperature

At 25° ambient temperature

Range with free view without hindrance

200 m

200 m

200 m

-

Note on range

Note: The range may be much less and depends on the spatial conditions, the wireless standard being used, the data rate, and the antenna at the opposite end

Note: The range may be much less and depends on the spatial conditions, the wireless standard being used, the data rate, and the antenna at the opposite end

Note: The range may be much less and depends on the spatial conditions, the wireless standard being used, the data rate, and the antenna at the opposite end

-

Permissible ambient conditions

Ambient temperature

• During operation

-40 … +80 °C

-45 … +70 °C

-40 … +80 °C

-15 … +55 °C

• During storage

-40 … +80 °C

-45 … +70 °C

-40 … +80 °C

-55 … +85 °C

• During transport

-40 … +80 °C

-45 … +70 °C

-40 … +80 °C

-55 … +85 °C

• During mounting

- -

- -

- -

- -

IP degree of protection

IP65

IP65

IP65

IP65

Maximum wind load

3 N

3.9 N

10 N

-

Note on wind load

at 160 km/h

at 160 km/h

at 160 km/h

-

Design, dimensions and weights

Width

50 mm

16 mm

86 mm

282 mm

Height

40 mm

160 mm

43 mm

32 mm

Depth

370 mm

16 mm

86 mm

92 mm

Diameter

-

-

-

-

Net weight

300 g

300 g

300 g

320 g

Type of mounting

-

-

-

-

• Mast mounting

Yes

Yes

No

No

• Wall mounting

Yes

Yes

Yes

Yes

• Ceiling mounting

No

No

Yes

Yes

• Directly on the device

No

No

No

No

Product properties, functions, componentsGeneral

Product property silicon-free

Yes

Yes

Yes

-

Material of the outer sleeve

Glass fiber

Polypropylene

Polycarbonate

Polycarbonate

Standards, specifications, approvals

Standard for hazardous zone

-

-

-

-

Certificate of suitability

-

-

Railway application in accordance with NF-F-16-101,  NF-F-16-102

-

• RoHS compliance

Yes

Yes

Yes

Yes

• Railroad application according to EN 50124-1

-

-

Yes

-

• Railroad application according to EN 50155

-

-

Yes

-

• UL approval

-

-

-

-

• Note

-

-

-

-

Wireless approval

Current country-specific approvals can be found on the Internet at www.siemens.com/funkzulassungen

Current country-specific approvals can be found on the Internet at www.siemens.com/funkzulassungen

Current country-specific approvals can be found on the Internet at www.siemens.com/funkzulassungen

Current country-specific approvals can be found on the Internet at www.siemens.com/funkzulassungen

Order No.

6GK5 795-6DC00-0AA0

6GK5 795-6DN00-0AA6

6GK5 793-6DG00-0AA0

6GK5 793-6DT00-0AA0

Product type designation

ANT795-6DC antenna

ANT795-6DN antenna

ANT793-6DG antenna

ANT793-6DT antenna

Radio frequencies

Radio frequency

• With WLAN in the 2.4 GHz frequency band

2.4 … 2.5 GHz

2.4 … 2.5 GHz

- -

- -

• With WLAN in the 5 GHz frequency band 1

5.15 … 5.875 GHz

5.15 … 5.875 GHz

5.15 … 5.875 GHz

5.15 … 5.875 GHz

• With WLAN in the 5 GHz frequency band 2

- -

- -

- -

- -

Electrical specifications

Impedance

50 Ω

50 Ω

50 Ω

50 Ω

Polarization

Linear vertical

Linear vertical

Dual  linear  +/-  45°  slant

3  ports: Vertical,  +/-  45°  slant

Radiation characteristic

Directional

Directional

Directional

Directional

Antenna gain compared with the isotropic radiator of the WLAN antenna

• In the 2.4 GHz frequency band

9 dB

9 dB

-

-

• In the 5 GHz frequency band

9 dB

9 dB

9 dB

8 dB

• With transmission frequency 5.2 GHz

• With transmission frequency 5.7 GHz

Maximum standing wave ratio

2

1,5

2

1,7

Beam angle of antenna

• In the 2.4 GHz frequency band

• Horizontal

75°

75°

-

-

• Vertical

55°

55°

-

-

• In the 5 GHz frequency band

• Horizontal

55°

55°

70°

65°

• Vertical

55°

55°

60°

65°

Note on beam angle

-

-

-

-

Number of electrical connections of the antenna

1 1

1 1

2 1

3 1

Design of electrical connection of the antenna

N connector, female

N connector, female

N connector, female

QMA  socket

Maximum angle of inclination down

0°

0°

0°

0°

Crosstalk attenuation between the antenna connections

25 dB

-

20 dB

17 dB

Front to back ratio

15 dB

15 dB

20 dB

-

Maximum transmit power

10 W

10 W

10 W

2 W

Note on transmit power

At 25° ambient temperature

At 25° ambient temperature

At 25° ambient temperature

At 25° ambient temperature

Range with free view without hindrance

-

200 m

-

-

Note on range

-

Note: The range may be much less and depends on the spatial conditions, the wireless standard being used, the data rate, and the antenna at the opposite end

-

-

Permissible ambient conditions

Ambient temperature

• During operation

-40 … +80 °C

-40 … +80 °C

-40 … +80 °C

-40 … +85 °C

• During storage

-40 … +80 °C

-40 … +80 °C

-40 … +80 °C

-40 … +85 °C

• During transport

-40 … +80 °C

-40 … +80 °C

-40 … +80 °C

-40 … +85 °C

• During mounting

- -

- -

- -

- -

IP degree of protection

IP67

IP55

IP67

IP67

Maximum wind load

15 N

15 N

15 N

15 N

Note on wind load

at 160 km/h

at 160 km/h

from front at 160 km/h

from front at 160 km/h

Design, dimensions and weights

Width

80 mm

101 mm

80 mm

80 mm

Height

101 mm

95 mm

101 mm

101 mm

Depth

35 mm

32 mm

35 mm

35 mm

Diameter

-

-

-

-

Net weight

110 g

110 g

110 g

270 g

Type of mounting

-

-

-

-

• Mast mounting

Yes

Yes

No

No

• Wall mounting

Yes

Yes

Yes

Yes

• Ceiling mounting

No

No

No

No

• Directly on the device

No

No

No

No

Product properties, functions, componentsGeneral

Product property silicon-free

Yes

Yes

-

-

Material of the outer sleeve

Lexan EXL 9330

ASA

Lexan  EXL  9330

Lexan EXL 9330

Standards, specifications, approvals

Standard for hazardous zone

-

-

-

-

Certificate of suitability

-

-

-

-

• RoHS compliance

Yes

Yes

Yes

Yes

• Railroad application according to EN 50124-1

-

-

-

-

• Railroad application according to EN 50155

-

-

-

-

• UL approval

-

-

-

Yes

• Note

-

-

-

UL94-V0, UL746C F1

Wireless approval

Current country-specific approvals can be found on the Internet at www.siemens.com/funkzulassungen

Current country-specific approvals can be found on the Internet at www.siemens.com/funkzulassungen

Current country-specific approvals can be found on the Internet at www.siemens.com/funkzulassungen

Current country-specific approvals can be found on the Internet at www.siemens.com/funkzulassungen

Order No.

6GK5 792-8DN00-0AA6

6GK5  793-8DN00-0AA6

6GK5 793-8DJ00-0AA0

6GK5 793-8DK00-0AA0

Product type designation

ANT792-8DN antenna

ANT793-8DN antenna

ANT793-6DJ antenna

ANT793-6DK antenna

Radio frequencies

Radio frequency

• With WLAN in the 2.4 GHz frequency band

2.4 … 2.7 GHz

- -

- -

- -

• With WLAN in the 5 GHz frequency band 1

- -

5.15 … 5.875 GHz

5.25 … 5.875 GHz

5.15 … 5.875 GHz

• With WLAN in the 5 GHz frequency band 2

- -

- -

- -

- -

Electrical specifications

Impedance

50 Ω

50 Ω

50 Ω

50 Ω

Polarization

Linear vertical

Linear, horizontal or vertical

Dual linear vertical-horizontal

Dual linear vertical-horizontal

Radiation characteristic

Directional

Directional

Directional

Directional

Antenna gain compared with the isotropic radiator of the WLAN antenna

• In the 2.4 GHz frequency band

14 dB

-

-

-

• In the 5 GHz frequency band

-

18 dB

18 dB

23 dB

• With transmission frequency 5.2 GHz

• With transmission frequency 5.7 GHz

Maximum standing wave ratio

1,5

1,9

1,7

1,7

Beam angle of antenna

• In the 2.4 GHz frequency band

• Horizontal

35°

-

-

-

• Vertical

30°

-

-

-

• In the 5 GHz frequency band

• Horizontal

-

18°

17°

9°

• Vertical

-

18°

17°

9°

Note on beam angle

-

-

-

-

Number of electrical connections of the antenna

1 1

1 1

2 1

2 1

Design of electrical connection of the antenna

N connector, female

N connector, female

N connector, female

N connector, female

Maximum angle of inclination down

0°

0°

0°

0°

Crosstalk attenuation between the antenna connections

-

-

30 dB

40 dB

Front to back ratio

20 dB

30 dB

30 dB

35 dB

Maximum transmit power

75 W

6 W

6 W

6 W

Note on transmit power

At 25° ambient temperature

At 25° ambient temperature

At 25° ambient temperature

At 25° ambient temperature

Range with free view without hindrance

1 000 m

1 000 m

-

-

Note on range

Note: The range may be much less and depends on the spatial conditions, the wireless standard being used, the data rate, and the antenna at the opposite end

Note: The range may be much less and depends on the spatial conditions, the wireless standard being used, the data rate, and the antenna at the opposite end

-

-

Permissible ambient conditions

Ambient temperature

• During operation

-40 … +80 °C

-45 … +70 °C

-45 … +70 °C

-45 … +70 °C

• During storage

-40 … +80 °C

-45 … +70 °C

-45 … +70 °C

-45 … +70 °C

• During transport

-40 … +80 °C

-45 … +70 °C

-45 … +70 °C

-45 … +70 °C

• During mounting

- -

- -

- -

- -

IP degree of protection

IP23

IP65

IP67

IP67

Maximum wind load

57 N

104 N

104 N

389 N

Note on wind load

at 160 km/h

at 220 km/h

from front at 220 km/h

from front at 220  km/h

Design, dimensions and weights

Width

200 mm

190 mm

190 mm

371 mm

Height

200 mm

190 mm

190 mm

371 mm

Depth

43 mm

30.5 mm

30.5 mm

40 mm

Diameter

-

-

-

-

Net weight

500 g

700 g

700 g

2 500 g

Type of mounting

-

-

-

-

• Mast mounting

Yes

Yes

Yes

Yes

• Wall mounting

Yes

Yes

Yes

Yes

• Ceiling mounting

No

No

No

No

• Directly on the device

No

No

No

No

Product properties, functions, componentsGeneral

Product property silicon-free

Yes

Yes

-

-

Material of the outer sleeve

ASA

Polypropylene

Polycarbonate/aluminum

Polycarbonate

Standards, specifications, approvals

Standard for hazardous zone

-

-

-

-

Certificate of suitability

-

-

-

-

• RoHS compliance

Yes

Yes

Yes

Yes

• Railroad application according to EN 50124-1

-

-

-

-

• Railroad application according to EN 50155

-

-

-

-

• UL approval

-

-

-

-

• Note

-

-

-

-

Wireless approval

Current country-specific approvals can be found on the Internet at www.siemens.com/funkzulassungen

Current country-specific approvals can be found on the Internet at www.siemens.com/funkzulassungen

Current country-specific approvals can be found on the Internet at www.siemens.com/funkzulassungen

Current country-specific approvals can be found on the Internet at www.siemens.com/funkzulassungen

Order No.

6GK5 792-4DN00-0AA6

6GK5 793-4MN00-0AA6

Product type designation

ANT792-4DN RCoax antenna

ANT793-4MN RCoax antenna

Radio frequencies

Radio frequency

• With WLAN in the 2.4 GHz frequency band

2.4 … 2.4835 GHz

- -

• With WLAN in the 5 GHz frequency band 1

- -

5.15 … 5.85 GHz

• With WLAN in the 5 GHz frequency band 2

- -

- -

Electrical specifications

Impedance

50 Ω

50 Ω

Polarization

Circular clockwise

Vertical (lambda 5/8 characteristic)

Radiation characteristic

Directional

Omnidirectional

Antenna gain compared with the isotropic radiator of the WLAN antenna

• In the 2.4 GHz frequency band

4 dB

-

• In the 5 GHz frequency band

-

6 dB

• With transmission frequency 5.2 GHz

• With transmission frequency 5.7 GHz

Maximum standing wave ratio

1,8

2

Beam angle of antenna

• In the 2.4 GHz frequency band

• Horizontal

90°

-

• Vertical

-

-

• In the 5 GHz frequency band

• Horizontal

-

360°

• Vertical

-

40°

Note on beam angle

-

-

Number of electrical connections of the antenna

1 1

1 1

Design of electrical connection of the antenna

N connector, female

N connector, female

Maximum angle of inclination down

0°

0°

Crosstalk attenuation between the antenna connections

-

-

Front to back ratio

2.5 dB

-

Maximum transmit power

1 W

1 W

Note on transmit power

-

-

Range with free view without hindrance

-

-

Note on range

-

-

Permissible ambient conditions

Ambient temperature

• During operation

-40 … +70 °C

-40 … +70 °C

• During storage

-40 … +70 °C

-40 … +70 °C

• During transport

-40 … +70 °C

-40 … +70 °C

• During mounting

- -

- -

IP degree of protection

IP65

IP65

Maximum wind load

-

-

Note on wind load

-

-

Design, dimensions and weights

Width

-

-

Height

78.7 mm

78.7 mm

Depth

-

-

Diameter

30 mm

30 mm

Net weight

114 g

65 g

Type of mounting

-

-

• Mast mounting

-

-

• Wall mounting

-

-

• Ceiling mounting

-

-

• Directly on the device

-

-

Product properties, functions, componentsGeneral

Product property silicon-free

Yes

Yes

Material of the outer sleeve

Polycarbonate

Polycarbonate

Standards, specifications, approvals

Standard for hazardous zone

-

-

Certificate of suitability

-

-

• RoHS compliance

-

-

• Railroad application according to EN 50124-1

-

-

• Railroad application according to EN 50155

-

-

• UL approval

-

Yes

• Note

-

UL94-V1

Wireless approval

Current country-specific approvals can be found on the Internet at www.siemens.com/funkzulassungen

Current country-specific approvals can be found on the Internet at www.siemens.com/funkzulassungen
