SinuTrain for SINUMERIK Operate производства Siemens

• User-friendly, control-identical simulation of operation and CNC programming of SINUMERIK controls on the PC
• Maximum compatibility thanks to integrated original SINUMERIK CNC software
• Accurate simulation of machine operation with inexpensive virtual machine control panel
• State-of-the-art fully graphical CNC user interface with moving picture sequences for clarification of technological sequences (Animated Elements)
• Optimum training software with a wide CNC programming spectrum – from ISO and CNC high-level language to fully graphical machining step programming
• High process safety through realistic graphical CNC simulation – including multi-channel machining operations

Technologies

SinuTrain for SINUMERIK Operate can be used for the following machining technologies:

• Milling (SinuTrain ShopMill and SinuTrain complete package)
• Turning (SinuTrain ShopTurn and SinuTrain complete package)
• Other technologies¹⁾ and multi-channel capability (SinuTrain complete package)

Adaptation to the machine

CNC programs created with SinuTrain for SINUMERIK Operate can be used on real machines. However, this requires SinuTrain to be adapted to the SINUMERIK configuration of the machine. This adaptation can be made either by the user with the configuration tool or by a Siemens service specialist. To allow operation of a larger array of machinery, several different configurations can be stored in Sinutrain for SINUMERIK Operate. In order to ensure maximum compatibility with different SINUMERIK software versions on the machine, multiple copies of SinuTrain for SINUMERIK Operate can be installed in the relevant software versions on one PC.

Accurate simulation of real operator control on the machine

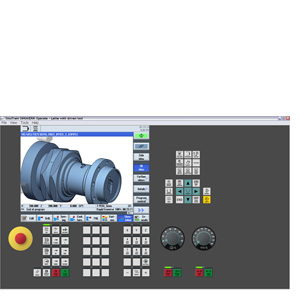

With its fully-fledged, virtual machine control panel, SinuTrain for SINUMERIK Operate offers functions such as CNC Start, CNC Stop or feedrate and spindle override and can therefore be operated just like a real machine.

Online help

Like a SINUMERIK CNC, SinuTrain for SINUMERIK Operate also offers a comprehensive online help. In addition, the SinuTrain DVD-ROM includes training manuals for the self-study of SINUMERIK operating and programming procedures.

Programming, simulation and printing

• DIN/ISO programming with programGUIDE
• ShopMill/ShopTurn machining step programming
• Multi-channel programming with programSYNC (SinuTrain complete package only)
• Fully-fledged graphical CNC simulation
• TCP/IP Ethernet networking with machines
• Print function for DIN/ISO and ShopMill/ShopTurn machining step programs
• Integrated CAD reader for importing DXF files

¹⁾ For other technologies, consultation with the relevant machine manufacturer is recommended to ensure that the software can be optimally adapted to the CNC of the machine.

SinuTrain for SINUMERIK Operate can be used for:

• SINUMERIK 840D sl from CNC software release 2.6 SP1
• SINUMERIK 828D from CNC software release 4.3
• SINUMERIK 828D BASIC T
• SINUMERIK 828D BASIC M

Preconditions

Hardware

• PC with 1.5 GHz processor (single core)
• RAM: 1 GB
• Hard disk: 2 GB of free memory space
• DVD drive for installation from DVD
• Graphics card: Minimum resolution 640 × 480 pixels
• USB interface
• Mouse, keyboard
• Training keyboard (optional)

Software

• Operating system Windows XP SP3 32-bit Professional/Home Edition
  (operating system Windows 7 32/64-bit (available soon)
• Adobe Acrobat Reader

The first steps in working with SINUMERIK Operate can be learned quickly and easily through a web-based training program.

You can download a free trial version of SinuTrain for SINUMERIK Operate from the Internet.

You can find additional information on the Internet at:

http://www.cnc4you.siemens.com
