SINUMERIK PCU 321 производства Siemens

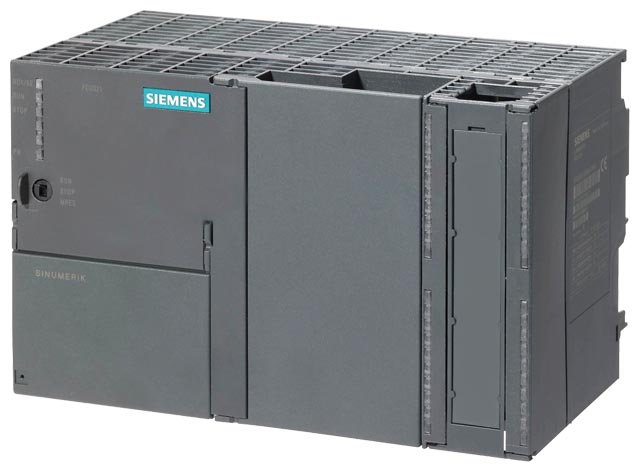

SINUMERIK PCU 321

The SINUMERIK PCU 321 is a powerful computer unit without a hard disk or fan of the same design as the SIMATIC S7-300, allowing simple installation on an S7 sectional rail.

Five Ethernet ports are available on-board as communication interfaces: 2 of these are standard Ethernet interfaces, 3 are PROFINET interfaces. Two additional USB interfaces are provided on the front for connecting I/O devices.

The SINUMERIK PCU 321 is optimally prepared for application of an operating system on CF card. The SINUMERIK HMI sl and HMI PRO sl RT operating software packages can be ordered additionally to create a functional system.

In combination with the SINUMERIK PCU 321, therefore, the SINUMERIK HMI sl and HMI PRO sl RT user interfaces and the SINUMERIK operator components are also available for machines with pure SIMATIC control.

  • Intel Celeron M 900 MHz processor/256 MB SD DDR2 RAM
  • Ports (on front):
    • 2 x Ethernet 10/100 Mbit/s
    • 3 x PROFINET
    • 2 x USB
    • CompactFlash Slot type II
  • Other control/display elements (on front):
    • Status LEDs for displaying the operating states

The SINUMERIK PCU 321 can be used in conjunction with SIMATIC CPUs for:

  • SINUMERIK HT 2/HT 8 handheld terminals and SINUMERIK OP 08T/OP 010/OP 010C/OP 010S/OP 012/OP 012T/OP 015/OP 015A/OP 015AT/TP 015A/TP 015AT operator panel fronts with HMI sl operating software in each case
  • SINUMERIK HT 2/HT 8 handheld terminals and SINUMERIK OP 08T/OP 012/OP 012T/OP 015A/OP 015AT/TP 015A/TP 015AT operator panel fronts with HMI PRO sl RT operating software in each case

Connection overview for SINUMERIK PCU 321

Information about application, configuration and cable extensions can be found under Connection system MOTION-CONNECT.



6FC5310-0DF00-2AA0

Product name

SINUMERIK PCU 321

Processor

Intel Celeron M

RAM

256 MB DDR2

Input voltage

24 V DC

Power consumption, max.

26.5 W (0.036 HP)

Degree of protection according to EN 60529 (IEC 60529)

IP20

Humidity rating based on EN 60721-3-3

Class 3K5 condensation and icing excluded. Low air temperature 0 °C (32 °F).

Relative humidity



  • Storage

5 ... 95% at 25 °C (77 °F)

  • Transport

5 ... 80% at 25 °C (77 °F)

  • Operation

5 ... 80% at 25 °C (77 °F)

Ambient temperature



  • Storage

-40 … +70 °C (-40 ... +158 °F)

  • Transport

0 … 55 °C (32 ... 131 °F)

  • Operation

0 … 55 °C (32 ... 131 °F)

Dimensions



  • Width

200 mm (7.87 in)

  • Height

125 mm (4.92 in)

  • Depth

123 mm (4.84 in)

Weight, approx.

1.3 kg (2.87 lb)

Approvals

CE, cULus


Код Заказной номер Описание Вес (кг) Заказать
112882 6FC5800-0AP47-0YB0 sinumerik 840di sl/840d sl по управления hmi pro sl rt, опция программного обеспечения - поставка одной лицензии 0.01 Заказать
65003 6FC5867-3YC00-0YA8 sinumerik 840di sl/840d sl по управления hmi pro sl rt для ncu/pcu 321, версия по актуальная на cd-rom без лицензии 0.03 Заказать
;
