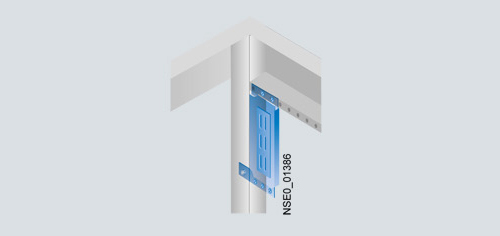

To ensure the necessary isolating clearance between the busbars and the cover plates of the cubicles, a busbar run must be provided with end covers.

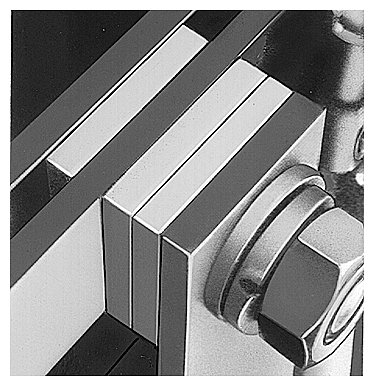

To prevent offsets at busbar joints and as a spacer to maintain the clearance between double bars. Version: copper, silver-plated
| Код | Заказной номер | Описание | Вес (кг) | Заказать |
|---|---|---|---|---|

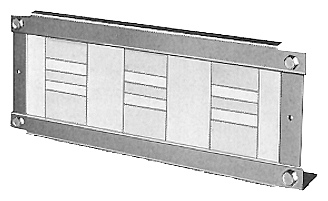

| 73882 | 8HH5030 | busbar holder, three poles for 1x3/2x3 bars 30x5mm | 0.5 | Заказать |
| 73883 | 8HH5040 | busbar holder, three poles for 2x3 bars 40x10mm | 0.9 | Заказать |
| 73884 | 8HH5050 | busbar holder, three poles for 2x3 bars 50x10mm | 1.6 | Заказать |
| 73885 | 8HH5530 | busbar distance pieces for bars 30x5mm | 0.05 | Заказать |
| 120431 | 8HH5540 | busbar distance pieces for bars 40x10 and 50x10mm | 0.15 | Заказать |
| 120594 | 8HS5061 | busbar holder 3poles for 1x3, 2x3 bars 30x5mm | 0.5 | Заказать |
| 120595 | 8HS5062 | busbar holder 3poles for 1x3, 2x3 bars 50x10mm | 0.7 | Заказать |
