Further Accessories производства Siemens

Further Accessories
Trim strip
  • Trim strip without Siemens lettering
    • Petrol
    • Anodized, with umbra stripe
    • Ocher
  • Trim strip with Siemens lettering
    • Petrol
    • Anodized, with umbra stripe
    • Ocher
  • Trim strip with Siemens lettering and lamp hole
    • Petrol
  • Fixing accessories

Other parts as replacements on request.

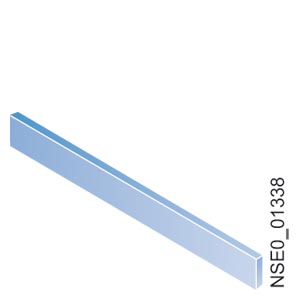

Decor strip

The decor strip is used to provide inscription for the 8MC cubicle and can be affixed to the top edge of the door. It is first necessary to remove the standard Siemens logo.

The strip is 50 mm high, petrol colored, and is supplied with and without Siemens lettering. The two-door version is intended for symmetrically divided double-wing doors. Asymmetrical divisions on request.

  • Decor strip with Siemens lettering
  • Decor strip without Siemens lettering

Locking systems
  • Locking rods
  • Lock
    • right, with key retainer
    • left, with key retainer
  • Espagnolette lock accessory set
    • for single-wing door
    • for double-wing door
  • Handles
    • T-handle without lock
    • T-handle with lock
    • Latch handle without lock
    • Wing handle without lock
    • Wing handle with lock
  • Actuator pin
    • square, 8 mm
    • double-bit, 3 mm
    • double-bit, 5 mm
  • Sealing strip
    • for roof panel
    • for door
    • for side/rear panel
    • for base plate

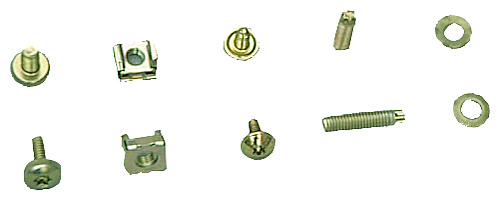

Screws, nuts, washers

We offer the following self-tapping screws with Torx-drive heads, nuts and washers for the fixing of installations in 8MC and 8MF cubicles.

  • Screw SN62532 PM 6 x 12
  • Thin-sheet screw with cutting ring M5 x 10
  • Self-tapping threaded bolt M6
  • Bolt M8 x 15
  • Captive nut M6
  • Hexagonal nut M8
  • Contact washer M6
  • Contact washer M8

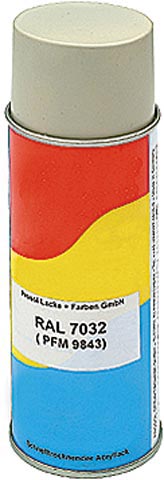

Repair paint

Spray can (400 ml) for the touching up of powder-coated or wetpainted surfaces.

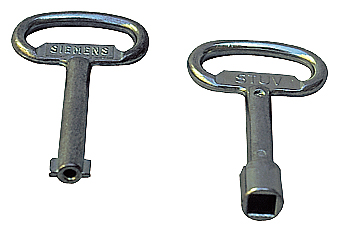

Keys

Keys are supplied as standard together with all locking systems. The following keys are made available as replacements:

  • Square
  • Triangular
  • Double-bit key
  • Daimler-Benz insert
Код Заказной номер Описание Вес (кг) Заказать
74404 8MC4200 trim strip w. siemens lettering for cubicle width 600mm single wing 0.235 Заказать
120978 8MC4201 trim strip w. siemens lettering for cubicle width 800mm single wing 0.314 Заказать
120979 8MC4202 trim strip w. siemens lettering for cubicle width 800mm double wing 0.31 Заказать
74405 8MC4203 trim strip w. siemens lettering for cubicle width 900mm single wing 0.354 Заказать
74406 8MC4204 trim strip w. siemens lettering for cubicle width 900mm double wing 0.35 Заказать
74407 8MC4205 trim strip w. siemens lettering for cubicle width 1000mm double wing 0.39 Заказать
120980 8MC4206 trim strip w. siemens lettering for cubicle width 1200mm double wing 0.47 Заказать
120981 8MC4210 trim strip w/o siemens lettering w=600 0.235 Заказать
120982 8MC4211 trim strip w/o siemens lettering w=800 0.314 Заказать
74408 8MC4212 trim strip w/o siemens lettering, double wing w=800 0.31 Заказать
120983 8MC4213 trim strip w/o siemens lettering w=900 0.354 Заказать
74409 8MC4214 trim strip w/o siemens lettering, double wing w=900 0.35 Заказать
74410 8MC4215 trim strip w/o siemens lettering, double wing w=1000 0.39 Заказать
120984 8MC4216 trim strip w/o siemens lettering, double wing w=1200 0.47 Заказать
121100 8MC9010 screw sn62532 m 6x12 30 Заказать
74532 8MC9011 fine sheet screw with die ring m 5x10 30 Заказать
74533 8MC9012 grooving threaded bolts m 6 40 Заказать
121101 8MC9013 retaining nut profile m 6 30 Заказать
121102 8MC9014 contactwasher m 6 15 Заказать
121103 8MC9030 touch up varnish ral 7032 0.4 Заказать
74534 8MC9031 touch up varnish ral 7033 0.4 Заказать
74535 8MC9032 touch up varnish sn 611 0.4 Заказать
121104 8MC9050 actuation key 6 mm square 0.2 Заказать
74536 8MC9051 actuation key 7 mm square 0.2 Заказать
74537 8MC9052 actuation key 8 mm square 0.2 Заказать
121105 8MC9053 actuation key 7 mm triangular 0.2 Заказать
121106 8MC9054 actuation key 8 mm triangular 0.2 Заказать
74538 8MC9055 actuation key two-way key 3 mm 0.2 Заказать
121107 8MC9056 actuation key two-way key 5 mm 0.2 Заказать
121108 8MC9057 actuation key daimler-benz inset 0.2 Заказать
121116 8ME1763 fine sheet screw m5 x 10 30 Заказать
74552 8ME8468 gib lock accessories for single winge door 0.033 Заказать
121125 8ME8473 gib lock accessories for double winge door 0.023 Заказать
121126 8ME8476 hexagon nut m8 25 Заказать
74553 8ME8477 contactwasher m 8 7.5 Заказать
74555 8ME8814 bolts m8 x 15 10 Заказать
121529 8MF4203 trim strip w. siemens lettering petrol for cubicle width 900mm 0.352 Заказать
121530 8MF4211 trim strip w.o. siemens letter. petrol for cubicle width 800mm 0.312 Заказать
74934 8MF4230 trim strip w. siemens lettering umber for cubicle width 600mm 0.233 Заказать
74935 8MF4231 trim strip w. siemens lettering umber for cubicle width 800mm 0.313 Заказать
74936 8MF4233 trim strip w. siemens lettering umber for cubicle width 900mm 0.352 Заказать
74937 8MF4240 trim strip w.o. siemens letter. umber for cubicle width 600mm 0.233 Заказать
121535 8MF4241 trim strip w.o. siemens letter. umber for cubicle width 800mm 0.312 Заказать
121536 8MF4243 trim strip w.o. siemens letter. umber for cubicle width 900mm 0.352 Заказать
74938 8MF4245 trim strip w.o. siemens letter. umber for cubicle width 1200mm 0.471 Заказать
74939 8MF4250 trim strip w. siemens lettering ochre for cubicle width 600mm 0.233 Заказать
121537 8MF4251 trim strip w. siemens lettering ochre for cubicle width 800mm 0.312 Заказать
121538 8MF4253 trim strip w. siemens lettering ochre for cubicle width 900mm 0.352 Заказать
74940 8MF4255 trim strip w. siemens lettering ochre for cubicle width 1200mm 0.471 Заказать
74941 8MF4260 trim strip w.o. siemens letter. ochre for cubicle width 600mm 0.239 Заказать
121539 8MF4261 trim strip w.o. siemens letter. ochre for cubicle width 800mm 0.312 Заказать
121540 8MF4263 trim strip w.o. siemens letter. ochre for cubicle width 900mm 0.358 Заказать
74942 8MF4265 trim strip w.o. siemens letter. ochre for cubicle width 1200mm 0.471 Заказать
74943 8MF4270 trim strip w. siemens lettering petrol w. 1 drilled hole f.lamp for cubicle width 600mm 0.233 Заказать
74944 8MF4271 trim strip w. siemens lettering petrol w. 1 drilled hole f.lamp for cubicle width 800mm 0.312 Заказать
74945 8MF4273 trim strip w. siemens lettering petrol w. 1 drilled hole f.lamp for cubicle width 900mm 0.352 Заказать
121541 8MF4275 trim strip w. siemens lettering petrol w. 1 drilled hole f.lamp for cubicle width 1200mm 0.471 Заказать
75224 8MF8806 sealing strips for door 5 Заказать
75225 8MF8807 seal. strips f. side/rear panel 5 Заказать
121856 8MF8810 sealing strips for top plate 2 Заказать
121857 8MF9030 paint pen ral7032 silica gray 0.4 Заказать
121858 8MF9031 paint pen ral7022 umber gray 0.4 Заказать
121859 8MF9032 paint pen sn611 ergo gray 0.4 Заказать
75227 8MF9052 actuation key 7 mm square 0.2 Заказать
121860 8MF9055 actuation key two-way key 3 mm 0.2 Заказать
121861 8MF9056 actuation key two-way key 5 mm 0.2 Заказать
75228 8MF9060 locking gib for cubicle height 1800mm 0.38 Заказать
121862 8MF9061 locking gib for cubicle height 2000mm 0.43 Заказать
75229 8MF9062 locking gib for cubicle height 2200mm 0.48 Заказать
121863 8MF9065 lock right with key arrester 0.364 Заказать
121864 8MF9066 lock left with key arrester 0.364 Заказать
121865 8MF9070 twist handle without lock 0.165 Заказать
121866 8MF9071 twist handle with lock 0.165 Заказать
121867 8MF9072 door handle without lock 0.21 Заказать
121868 8MF9073 latch handle without lock 0.3 Заказать
121869 8MF9074 latch handle with lock 0.35 Заказать
75231 8MF9081 activating bolt square 8mm 0.015 Заказать
75232 8MF9082 activating bolt two-way key 3mm 0.015 Заказать
75233 8MF9083 activating bolt two-way key 5mm 0.02 Заказать
;
