The use of self-tapping screws for the 8MC and 8MF cubicles means that it is not necessary to provide separate grounding of the enclosure parts or other elements screwed to the frame.

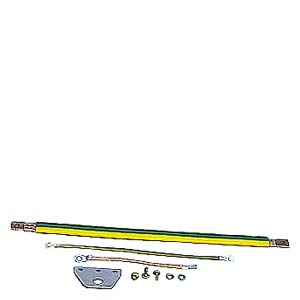

Grounding cables are only required for the doors and are already fitted at the factory. Other materials required for grounding:
Serrated (toothed) bars

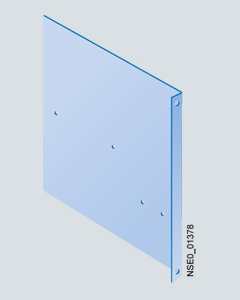

Lamp plate
Heater plate
Thermostat plate
Door position switch plate
| Код | Заказной номер | Описание | Вес (кг) | Заказать |
|---|---|---|---|---|
| 74514 | 8MC4890 | lamp plate | 1.2 | Заказать |
| 121083 | 8MC4891 | heater plate | 1.5 | Заказать |
| 74515 | 8MC4892 | thermostat plate | 0.3 | Заказать |
| 121084 | 8MC4893 | door position switch plate | 0.2 | Заказать |
| 121088 | 8MC4910 | earthing plate | 0.127 | Заказать |
| 121089 | 8MC4911 | earthing cable 6qmm | 0.027 | Заказать |
| 121090 | 8MC4912 | copper earthing rail 30 x 5mm for cubicle width 600mm | 0.918 | Заказать |
| 74520 | 8MC4913 | copper earthing rail 30 x 5mm for cubicle width 800mm | 1.227 | Заказать |
| 74521 | 8MC4914 | copper earthing rail 30 x 5mm for cubicle width 900mm | 1.383 | Заказать |
| 121091 | 8MC4915 | copper earthing rail 30 x 5mm for cubicle width 1000mm | 1.537 | Заказать |
| 121092 | 8MC4916 | copper earthing rail 30 x 5mm for cubicle width 1200mm | 1.846 | Заказать |
| 121093 | 8MC4920 | copper shielding rail 20 x 5mm length 330mm | 0.296 | Заказать |
| 74522 | 8MC4921 | insulator 30 x 30mm | 0.035 | Заказать |
| 74523 | 8MC4922 | indented rail for cubicle width 600mm | 1.052 | Заказать |
| 74524 | 8MC4923 | indented rail for cubicle width 800mm | 1.41 | Заказать |
| 74525 | 8MC4924 | indented rail for cubicle width 900mm | 1.589 | Заказать |
| 74526 | 8MC4925 | indented rail for cubicle width 1000mm | 1.768 | Заказать |
| 74527 | 8MC4926 | indented rail for cubicle width 1200mm | 2.126 | Заказать |
| 74528 | 8MC4932 | indented rail z-shape w=600 | 0.852 | Заказать |
| 121094 | 8MC4933 | indented rail z-shape w=800 | 1.21 | Заказать |
| 121095 | 8MC4934 | indented rail z-shape w=900 | 1.389 | Заказать |
| 74529 | 8MC4935 | indented rail z-shape w=100 | 1.568 | Заказать |
| 74530 | 8MC4936 | indented rail z-shape w=1200 | 1.926 | Заказать |
| 74531 | 8MC4942 | grounding rail 30x10 mm w=600 | 1.836 | Заказать |
| 121096 | 8MC4943 | grounding rail 30x10 mm w=800 | 2.454 | Заказать |
| 121097 | 8MC4944 | grounding rail 30x10 mm w=900 | 2.766 | Заказать |
| 121098 | 8MC4945 | grounding rail 30x10 mm w=100 | 3.074 | Заказать |
| 121099 | 8MC4946 | grounding rail 30x10 mm w=1200 | 3.692 | Заказать |
| 121640 | 8MF4890 | lamp plate | 1.2 | Заказать |
| 121641 | 8MF4891 | heater plate | 1.5 | Заказать |
| 75026 | 8MF4892 | thermostat plate | 0.3 | Заказать |
| 121642 | 8MF4893 | door position switch plate | 0.2 | Заказать |
| 121653 | 8MF4910 | earthing plate | 0.103 | Заказать |
| 121654 | 8MF4911 | earthing cable 6qmm | 0.033 | Заказать |
| 121655 | 8MF4912 | copper earthing rail 30 x 5mm for cubicle width 600mm | 0.937 | Заказать |
| 75041 | 8MF4913 | copper earthing rail 30 x 5mm for cubicle width 800mm | 1.246 | Заказать |
| 121656 | 8MF4914 | copper earthing rail 30 x 5mm for cubicle width 900mm | 1.402 | Заказать |
| 75042 | 8MF4915 | copper earthing rail 30 x 5mm for cubicle width 1000mm | 1.556 | Заказать |
| 121657 | 8MF4916 | copper earthing rail 30 x 5mm for cubicle width 1200mm | 1.865 | Заказать |
| 75043 | 8MF4920 | copper shielding rail 20 x 5mm length 330mm | 0.296 | Заказать |
| 75044 | 8MF4921 | insulator 30 x 30mm | 0.035 | Заказать |
| 75045 | 8MF4922 | indented rail for cubicle width 600mm | 1.184 | Заказать |
| 121658 | 8MF4923 | indented rail for cubicle width 800mm | 1.581 | Заказать |
| 75046 | 8MF4924 | indented rail for cubicle width 900mm | 1.605 | Заказать |
| 121659 | 8MF4925 | indented rail for cubicle width 1000mm | 1.784 | Заказать |
| 75047 | 8MF4926 | indented rail for cubicle width 1200mm | 2.142 | Заказать |
| 121660 | 8MF4932 | indented rail z-shape w=600 | 0.984 | Заказать |
| 75048 | 8MF4933 | indented rail z-shape w=800 | 1.381 | Заказать |
| 121661 | 8MF4934 | indented rail z-shape w=900 | 1.405 | Заказать |
| 75049 | 8MF4935 | indented rail z-shape w=1000 | 1.584 | Заказать |
| 121662 | 8MF4936 | indented rail z-shape w=1200 | 1.942 | Заказать |
| 75050 | 8MF4942 | grounding rail w=600 | 1.874 | Заказать |
| 121663 | 8MF4943 | grounding rail w=800 | 2.492 | Заказать |
| 75051 | 8MF4944 | grounding rail w=900 | 2.804 | Заказать |
| 75052 | 8MF4945 | grounding rail w=1000 | 3.112 | Заказать |
| 75053 | 8MF4946 | grounding rail w=1200 | 3.73 | Заказать |
