Cubicle lighting

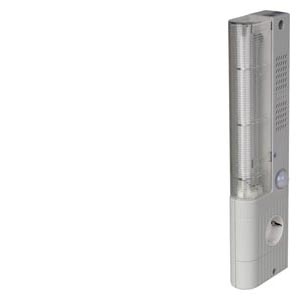

The cubicle light is specifically suitable for operation in switchgear and controlgear cubicles.

In the case of lamps with a SCHUKO socket outlet, the outlet is incorporated with an

on/off switch or motion detector in the plastic enclosure.

The flat SL 025 Slimline lamp with motion detector or on/off switch is ideal for operation in cubicles and enclosures with a high density of built-in electrical/electronic components.

All lamps are fitted with environmentally-friendly energy-saving lamps.

Socket outlets

Socket outlets are mounted on 35 mm DIN rails and connected without screws by way of three clamping terminals (for stranded and solid wires 0.5 ... 2.5 mm2).

The maximum operational voltage is 250 V. The enclosure is light gray UL94 V-Q plastic.

The Slimline lamp is also available with country-specific socket outlets.

Plug-on mounts

If a cubicle light is provided with a plug-on mount, it remains immune to vibration and can be removed at any later time without tools.

If fitted between two plug-on mounts, the cubicle light is fixed statically to the rack. The cubicle light can only be fitted to the rack by using plug-on mounts.
