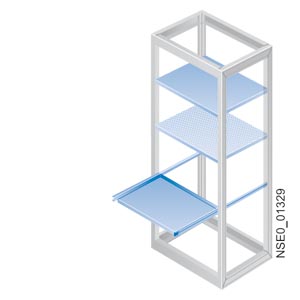

Shelves can be supplied for fixed mounting or as withdrawable shelves on telescopic rails. The maximum width of a shelf is calculated as the nominal cubicle width minus 60 mm. Load bearing capacity: 50 kg.
Telescopic rails can be used for maximum shelf withdrawal (=cubicle depth minus 20 mm). They are designed for loads up to 50 kg per rail pair and are retained in their end position.
| Код | Заказной номер | Описание | Вес (кг) | Заказать |
|---|---|---|---|---|
| 121052 | 8MC4800 | standard shelf fixed for cubicle wxd = 600 x 400mm | 3.718 | Заказать |
| 74489 | 8MC4801 | standard shelf fixed for cubicle wxd = 600 x 600mm | 5.548 | Заказать |
| 121053 | 8MC4802 | standard shelf fixed for cubicle wxd = 600 x 800mm | 7.379 | Заказать |
| 121054 | 8MC4805 | standard shelf fixed for cubicle wxd = 800 x 400mm | 4.986 | Заказать |
| 121055 | 8MC4806 | standard shelf fixed for cubicle wxd = 800 x 600mm | 7.445 | Заказать |
| 74490 | 8MC4807 | standard shelf fixed for cubicle wxd = 800 x 800mm | 9.094 | Заказать |
| 74491 | 8MC4810 | perforated compartment bottom fixed hxd=600x400 | 3.5 | Заказать |
| 121056 | 8MC4811 | perforated compartment bottom fixed hxd=600x600 | 4 | Заказать |
| 74492 | 8MC4812 | perforated compartment bottom fixed hxd=600x800 | 4.4 | Заказать |
| 121057 | 8MC4815 | perforated compartment bottom fixed hxd=800x400 | 4.2 | Заказать |
| 121058 | 8MC4816 | perforated compartment bottom fixed hxd=800x600 | 4.7 | Заказать |
| 121059 | 8MC4817 | perforated compartment bottom fixed hxd=800x800 | 5.1 | Заказать |
| 121064 | 8MC4840 | shelf with telesc.rail extens. for cubicle wxd = 600 x 400mm | 4.776 | Заказать |
| 74506 | 8MC4841 | shelf with telesc.rail extens. for cubicle wxd = 600 x 600mm | 7.165 | Заказать |
| 121065 | 8MC4842 | shelf with telesc.rail extens. for cubicle wxd = 600 x 800mm | 9.553 | Заказать |
| 121066 | 8MC4845 | shelf with telesc.rail extens. for cubicle wxd = 800 x 400mm | 6.426 | Заказать |
| 121067 | 8MC4846 | shelf with telesc.rail extens. for cubicle wxd = 800 x 600mm | 9.64 | Заказать |
| 74507 | 8MC4847 | shelf with telesc.rail extens. for cubicle wxd = 800 x 800mm | 12.853 | Заказать |
| 121068 | 8MC4850 | perforated compartm. bottom w. telescope rail extension hxd=600x400 | 4.7 | Заказать |
| 121069 | 8MC4851 | perforated compartm. bottom w. telescope rail extension hxd=600x600 | 5.2 | Заказать |
| 74508 | 8MC4852 | perforated compartm. bottom w. telescope rail extension hxd=600x800 | 5.6 | Заказать |
| 121070 | 8MC4855 | perforated compartm. bottom w. telescope rail extension hxd=800x400 | 4.7 | Заказать |
| 121071 | 8MC4856 | perforated compartm. bottom w. telescope rail extension hxd=800x600 | 5.2 | Заказать |
| 74509 | 8MC4857 | perforated compartm. bottom w. telescope rail extension hxd=800x800 | 5.6 | Заказать |
| 74510 | 8MC4860 | telescope rails d=300 | 0.5 | Заказать |
| 121072 | 8MC4861 | telescope rails d=600 | 0.5 | Заказать |
| 74998 | 8MF4800 | standard shelf fixed for cubicle wxd = 600 x 400mm | 5.418 | Заказать |
| 74999 | 8MF4801 | standard shelf fixed for cubicle wxd = 600 x 600mm | 7.699 | Заказать |
| 121611 | 8MF4802 | standard shelf fixed for cubicle wxd = 600 x 800mm | 9.979 | Заказать |
| 75000 | 8MF4805 | standard shelf fixed for cubicle wxd = 800 x 400mm | 7.11 | Заказать |
| 121612 | 8MF4806 | standard shelf fixed for cubicle wxd = 800 x 600mm | 10.175 | Заказать |
| 121613 | 8MF4807 | standard shelf fixed for cubicle wxd = 800 x 800mm | 13.241 | Заказать |
| 75001 | 8MF4810 | perforated compartm. bottom fixed hxd=600x400 | 3.5 | Заказать |
| 121614 | 8MF4811 | perforated compartm. bottom fixed hxd=600x600 | 4 | Заказать |
| 75002 | 8MF4812 | perforated compartm. bottom fixed hxd=600x800 | 4.4 | Заказать |
| 121615 | 8MF4815 | perforated compartm. bottom fixed hxd=800x400 | 4.2 | Заказать |
| 121616 | 8MF4816 | perforated compartm. bottom fixed hxd=800x600 | 4.7 | Заказать |
| 75003 | 8MF4817 | perforated compartm. bottom fixed hxd=800x800 | 5.1 | Заказать |
| 75014 | 8MF4840 | shelf with telesc.rail extens. for cubicle wxd = 600 x 400mm | 4.886 | Заказать |
| 121624 | 8MF4841 | shelf with telesc.rail extens. for cubicle wxd = 600 x 600mm | 7.697 | Заказать |
| 121625 | 8MF4842 | shelf with telesc.rail extens. for cubicle wxd = 600 x 800mm | 10.398 | Заказать |
| 121626 | 8MF4845 | shelf with telesc.rail extens. for cubicle wxd = 800 x 400mm | 6.098 | Заказать |
| 121627 | 8MF4846 | shelf with telesc.rail extens. for cubicle wxd = 800 x 600mm | 9.541 | Заказать |
| 121628 | 8MF4847 | shelf with telesc.rail extens. for cubicle wxd = 800 x 800mm | 12.474 | Заказать |
| 121629 | 8MF4850 | perforated compartm. bottom telescope rail extension hxd=600x400 | 4.7 | Заказать |
| 121630 | 8MF4851 | perforated compartm. bottom telescope rail extension hxd=600x600 | 5.2 | Заказать |
| 75015 | 8MF4852 | perforated compartm. bottom telescope rail extension hxd=600x800 | 5.6 | Заказать |
| 121631 | 8MF4855 | perforated compartm. bottom telescope rail extension hxd=800x400 | 4.7 | Заказать |
| 75016 | 8MF4856 | perforated compartm. bottom telescope rail extension hxd=800x600 | 5.2 | Заказать |
| 75017 | 8MF4857 | perforated compartm. bottom telescope rail extension hxd=800x800 | 5.6 | Заказать |
| 121632 | 8MF4860 | telescope rails d=300 | 0.5 | Заказать |
| 75018 | 8MF4861 | telescope rails d=600 | 0.5 | Заказать |
