Transport Aids производства Siemens

Transport aids can only be ordered in conjunction with a cubicle or cubicle suite.

Transport eye bolts

The transport eye bolts enable a cubicle to be lifted (according to DIN 580).

Recommendation: the overall crane hook load should not exceed 500 kg.

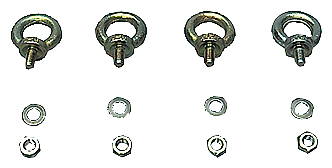

Eye bolts, washers and nuts (1 set = 4 units)

Transport brackets

Transport brackets are designed for the crane lifting of cubicle suites. Unlike eye bolts, a transport bracket over the whole length of a cubicle suite is able to guarantee that the tensile loads from the lifting tackle are taken up evenly and simultaneously.

Versions:

1 pair of brackets per running meter up to length 2400 mm

• in RAL 3000
• in untreated black plate

Lengths over 2400 mm on request.

Transport rails

Transport rails are mounted above or below cubicles or cubicle suites. They serve to transport heavy fully configured cubicles or cubicle suites.

Versions:

1 pair of rails per running meter up to length 2400 mm

• in RAL 3000
• in untreated black plate

Lengths over 2400 mm on request.
