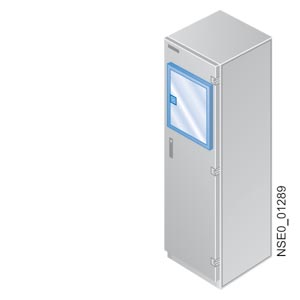

Mounted windows

Mounted windows can be added to any metal enclosure part. They are supplied as follows:

• Anodized aluminum frame with 3 mm acrylic pane
• Cylinder (cam) lock (two locks for a door height of more than 600 mm)
• 180° hinge

The degree of protection is IP54.

Further versions on request.

Door stay

The door stay holds the door open at 90°.

Circuit drawings pocket

The circuit drawings pocket serves to hold documents to be kept in the cubicle. Four different versions are available:

• A4 upright, depth 30 mm, plastic
• A4 upright, depth 75 mm, galvanized sheet steel
• A4 horizontal, depth 50 mm, galvanized sheet steel
• A3 horizontal, galvanized sheet steel, only for 600 mm doors in conjunction with multi-purpose door bars

Versions 2 and 3 are mounted on additional welding bolts (must be specified when ordering the cubicle), version 4 is mounted on multi-purpose door bars.

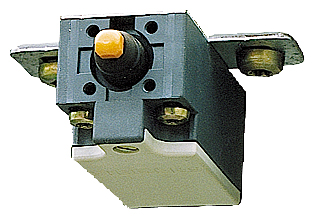

Door position switch

The door position switch serves to switch the cubicle lighting or any other circuit on and off when the cabinet door is opened and closed. It is supplied mounted on the hinge side of the cubicle.

Multi-purpose door bars

The multi-purpose door bars serve both as stiffening bars and as mounting aids for components (cable clamping, cable ducts, etc.) which are to installed in the door.
