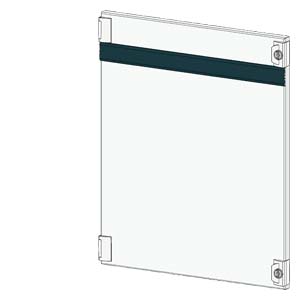

One complete section configuration comprises a fixed cover at the top, a fixed cover at the bottom, and module doors.
For sections with SENTRON 3WL, 3VL, 3NJ4 devices, special module doors able to perform the function of the fixed top/bottom cover are available (see "Assembly Kits").
Module doors are equipped with individual locks for 3 mm double-bit actuators. The door hinge can be freely selected. For degree of protection IP55 an additional protection module must be ordered.
If no devices are installed in the door, there is no need for additional grounding.
If additional grounding is necessary, grounding straps must be used for degree of protection IP55 (see section "Accessories").
Inner door struts are optionally available for fastening cable ducts or devices to the inside of doors.
| Код | Заказной номер | Описание | Вес (кг) | Заказать |
|---|---|---|---|---|
| 122310 | 8PQ2000-6BA07 | sivacon s4 outer plate degree of protection ip4x base compartment height 150mm width 600mm | 1.45 | Заказать |
| 75862 | 8PQ2015-0BA01 | sikus/sivacon fixed cover bottom mounting position degree of protection ip40 height 150mm width 850mm . . . . . | 2.08 | Заказать |
| 122326 | 8PQ2015-0BA02 | sikus/sivacon fixed cover bottom mounting position degree of protection ip40 height 150mm width 1100mm . . . . . | 2.64 | Заказать |
| 122327 | 8PQ2015-0BA05 | sikus/sivacon module door upgrade to degree of protection ip55 height 150mm width 850mm . . . . . . | 0.733 | Заказать |
| 122328 | 8PQ2015-0BA06 | sikus/sivacon module door upgrade to degree of protection ip55 height 150mm width 1100mm . . . . . . | 0.885 | Заказать |
| 122329 | 8PQ2015-4BA01 | sikus/sivacon outer plate degree of protection ip4x base compartment height 150mm width 400mm | 1.08 | Заказать |
| 75863 | 8PQ2015-4BA03 | sikus/sivacon module door upgrade to degree of protection ip55 height 150mm width 400mm . . . . . . | 1.46 | Заказать |
| 122334 | 8PQ2015-6BA12 | sivacon s4 upgrade kit ip55 height 150mm width 600mm | 0.65 | Заказать |
| 122343 | 8PQ2020-4BA01 | sikus/sivacon module door degree of protection ip40 two-way height 200mm width 400mm . . . . . | 2.2 | Заказать |
| 75873 | 8PQ2020-4BA03 | sikus/sivacon module door upgrade to degree of protection ip55 height 200mm width 400mm . . . . . . | 0.63 | Заказать |
| 122347 | 8PQ2020-6BA15 | sivacon s4 upgrade kit ip55 height 200mm width 600mm | 0.52 | Заказать |
| 122352 | 8PQ2020-6BA24 | sikus/sivacon module door degree of protection ip40 two-way height 200mm width 600mm . . . . . | 3.03 | Заказать |
| 122360 | 8PQ2022-0BA01 | sikus/sivacon fixed cover top mounting position degree of protection ip55 height 225mm width 850mm . . . . . | 3.53 | Заказать |
| 122361 | 8PQ2022-0BA02 | sikus/sivacon fixed cover top mounting position degree of protection ip55 height 225mm width 1100mm . . . . . | 4.48 | Заказать |
| 75891 | 8PQ2022-0BA05 | sikus/sivacon module door upgrade to degree of protection ip55 height 225mm width 850mm . . . . . . | 1.51 | Заказать |
| 75892 | 8PQ2022-0BA06 | sikus/sivacon module door upgrade to degree of protection ip55 height 225mm width 1100mm . . . . . . | 4.02 | Заказать |
| 122363 | 8PQ2022-4BA01 | sikus/sivacon fixed cover top mounting position degree of protection ip55 height 225mm width 400mm . . . . . | 2.38 | Заказать |
| 122364 | 8PQ2022-4BA03 | sikus/sivacon module door upgrade to degree of protection ip55 height 225mm width 400mm . . . . . . | 0.855 | Заказать |
| 75895 | 8PQ2022-6BA01 | sivacon s4 outer plate degree of protection ip4x overhead compartment height 225mm width 600mm | 3.13 | Заказать |
| 75896 | 8PQ2022-6BA02 | sivacon s4 upgrade kit ip55 overhead compartment height 225mm width 600mm | 1.04 | Заказать |
| 122405 | 8PQ2040-0BA02 | sikus/sivacon module door degree of protection ip40 two-way height 400mm width 850mm . . . . . | 6.15 | Заказать |
| 75933 | 8PQ2040-0BA03 | sikus/sivacon module door degree of protection ip40 two-way height 400mm width 1100mm . . . . . | 7.01 | Заказать |
| 122406 | 8PQ2040-0BA06 | sikus/sivacon door wiring support door height 400mm . . . . . . . . | 0.35 | Заказать |
| 122407 | 8PQ2040-0BA08 | sikus/sivacon module door upgrade to degree of protection ip55 height 400mm width 850mm . . . . . . | 1.255 | Заказать |
| 122408 | 8PQ2040-0BA10 | sikus/sivacon module door upgrade to degree of protection ip55 height 400mm width 1100mm . . . . . . | 1.48 | Заказать |
| 122409 | 8PQ2040-4BA01 | sikus/sivacon module door degree of protection ip40 two-way height 400mm width 400mm . . . . . | 3.44 | Заказать |
| 122410 | 8PQ2040-4BA03 | sikus/sivacon module door upgrade to degree of protection ip55 height 400mm width 400mm . . . . . . | 0.85 | Заказать |
| 122415 | 8PQ2040-6BA13 | sivacon s4 upgrade kit ip55 height 400mm width 600mm | 0.52 | Заказать |
| 122418 | 8PQ2040-6BA22 | sikus/sivacon module door degree of protection ip40 two-way height 400mm width 600mm . . . . . | 4.7 | Заказать |
| 122442 | 8PQ2055-0BA01 | sikus/sivacon module door degree of protection ip40 two-way height 550mm width 850mm . . . . . | 6.7 | Заказать |
| 75962 | 8PQ2055-0BA02 | sikus/sivacon module door degree of protection ip40 two-way height 550mm width 1100mm . . . . . | 8.44 | Заказать |
| 122443 | 8PQ2055-0BA05 | sikus/sivacon door wiring support door height 550mm . . . . . . . . | 0.51 | Заказать |
| 75963 | 8PQ2055-0BA06 | sikus/sivacon module door upgrade to degree of protection ip55 height 550mm width 850mm . . . . . . | 1.19 | Заказать |
| 75964 | 8PQ2055-0BA07 | sikus/sivacon module door upgrade to degree of protection ip55 height 550mm width 1100mm . . . . . . | 1.345 | Заказать |
| 122446 | 8PQ2055-4BA01 | sikus/sivacon module door degree of protection ip40 two-way height 550mm width 400mm . . . . . | 3.78 | Заказать |
| 75966 | 8PQ2055-4BA07 | sikus/sivacon module door upgrade to degree of protection ip55 height 550mm width 400mm . . . . . . | 1.025 | Заказать |
| 122452 | 8PQ2055-6BA06 | sivacon s4 upgrade kit ip55 height 550mm width 600mm | 1.12 | Заказать |
| 122454 | 8PQ2055-6BA08 | sikus/sivacon module door degree of protection ip40 two-way height 550mm width 600mm . . . . . | 4.96 | Заказать |
| 75969 | 8PQ2055-6BA15 | sikus/sivacon module door upgrade to degree of protection ip55 height 550mm width 600mm . . . . . . | 1.04 | Заказать |
| 122461 | 8PQ2060-0BA05 | sikus/sivacon module door degree of protection ip40 two-way height 600mm width 850mm . . . . . | 7.68 | Заказать |
| 122462 | 8PQ2060-0BA06 | sikus/sivacon module door degree of protection ip40 two-way height 625mm width 850mm . . . . . | 8.19 | Заказать |
| 75974 | 8PQ2060-0BA07 | sikus/sivacon module door degree of protection ip40 two-way height 600mm width 1100mm . . . . . | 9.69 | Заказать |
| 122463 | 8PQ2060-0BA08 | sikus/sivacon module door degree of protection ip40 two-way height 625mm width 1100mm . . . . . | 10.31 | Заказать |
| 75975 | 8PQ2060-0BA14 | sikus/sivacon door wiring support door height 600, 625mm . . . . . . . . | 0.53 | Заказать |
| 122464 | 8PQ2060-0BA15 | sikus/sivacon module door upgrade to degree of protection ip55 height 600mm width 850mm . . . . . . | 1.475 | Заказать |
| 75976 | 8PQ2060-0BA16 | sikus/sivacon module door upgrade to degree of protection ip55 height 625mm width 850mm . . . . . . | 1.95 | Заказать |
| 122465 | 8PQ2060-0BA17 | sikus/sivacon module door upgrade to degree of protection ip55 height 600mm width 1100mm . . . . . . | 1.7 | Заказать |
| 122466 | 8PQ2060-0BA18 | sikus/sivacon module door upgrade to degree of protection ip55 height 625mm width 1100mm . . . . . . | 2.315 | Заказать |
| 75977 | 8PQ2060-4BA01 | sikus/sivacon module door degree of protection ip40 two-way height 600mm width 400mm . . . . . | 4.44 | Заказать |
| 122467 | 8PQ2060-4BA03 | sikus/sivacon module door upgrade to degree of protection ip55 height 600mm width 400mm . . . . . . | 1.07 | Заказать |
| 75979 | 8PQ2060-6BA07 | sivacon s4 upgrade kit ip55 height 600mm width 600mm | 1.16 | Заказать |
| 75982 | 8PQ2060-6BA18 | sikus/sivacon module door degree of protection ip40 two-way height 600mm width 600mm . . . . . | 6.28 | Заказать |
| 122476 | 8PQ2060-6BA20 | sikus/sivacon module door degree of protection ip40 two-way height 625mm width 600mm . . . . . | 6.05 | Заказать |
| 75983 | 8PQ2060-6BA23 | sikus/sivacon module door upgrade to degree of protection ip55 height 625mm width 600mm . . . . . . | 1.585 | Заказать |
| 75994 | 8PQ2070-0BA02 | sikus/sivacon door wiring support door height 700, 725mm . . . . . . . . | 0.67 | Заказать |
| 122481 | 8PQ2070-4BA01 | sikus/sivacon module door degree of protection ip40 two-way height 700mm width 400mm . . . . . | 4.26 | Заказать |
| 122482 | 8PQ2070-4BA02 | sikus/sivacon module door degree of protection ip40 two-way height 725mm width 400mm . . . . . | 4.85 | Заказать |
| 122483 | 8PQ2070-4BA05 | sikus/sivacon module door upgrade to degree of protection ip55 height 700mm width 400mm . . . . . . | 1.095 | Заказать |
| 75995 | 8PQ2070-4BA06 | sikus/sivacon module door upgrade to degree of protection ip55 height 725mm width 400mm . . . . . . | 1.425 | Заказать |
| 75998 | 8PQ2070-6BA05 | sikus/sivacon module door degree of protection ip40 two-way height 700mm width 600mm . . . . . | 6.09 | Заказать |
| 122488 | 8PQ2070-6BA06 | sikus/sivacon module door degree of protection ip40 two-way height 725mm width 600mm . . . . . | 6.79 | Заказать |
| 122489 | 8PQ2070-6BA10 | sikus/sivacon module door upgrade to degree of protection ip55 height 700mm width 600mm . . . . . . | 1.215 | Заказать |
| 122490 | 8PQ2070-6BA11 | sikus/sivacon module door upgrade to degree of protection ip55 height 725mm width 600mm . . . . . . | 1.715 | Заказать |
| 76006 | 8PQ2080-0BA03 | sikus/sivacon module door degree of protection ip40 two-way height 800mm width 850mm . . . . . | 9.76 | Заказать |
| 122496 | 8PQ2080-0BA04 | sikus/sivacon module door degree of protection ip40 two-way height 800mm width 1100mm . . . . . | 12.36 | Заказать |
| 122497 | 8PQ2080-0BA07 | sikus/sivacon door wiring support door height 800mm . . . . . . . . | 0.77 | Заказать |
| 76009 | 8PQ2080-0BA11 | sikus/sivacon module door upgrade to degree of protection ip55 height 800mm width 850mm . . . . . . | 1.735 | Заказать |
| 76010 | 8PQ2080-0BA12 | sikus/sivacon module door upgrade to degree of protection ip55 height 800mm width 1100mm . . . . . . | 1.96 | Заказать |
| 122498 | 8PQ2080-4BA01 | sikus/sivacon module door degree of protection ip40 two-way height 800mm width 400mm . . . . . | 5.54 | Заказать |
| 76011 | 8PQ2080-4BA04 | sikus/sivacon module door upgrade to degree of protection ip55 height 800mm width 400mm . . . . . . | 1.33 | Заказать |
| 122500 | 8PQ2080-6BA04 | sivacon s4 upgrade kit ip55 height 800mm width 600mm | 1.41 | Заказать |
| 76015 | 8PQ2080-6BA07 | sikus/sivacon module door degree of protection ip40 two-way height 800mm width 600mm . . . . . | 7.77 | Заказать |
