The fastener system is pre-assembled, the door hinge can be changed subsequently without having to remove any devices.
If no devices are installed in the door, there is no need for additional grounding.
If additional grounding is necessary, grounding straps must be used for degree of protection IP55 (see section "Accessories").
Apart from the standard espagnolette with 3 mm double-bit there are also twist lever catches, optionally with or without a lock. The twist lever catches must be ordered separately (see section "Accessories").
Inner door struts are optionally available for fastening cable ducts or devices to the inside of doors.
| Код | Заказной номер | Описание | Вес (кг) | Заказать |
|---|---|---|---|---|

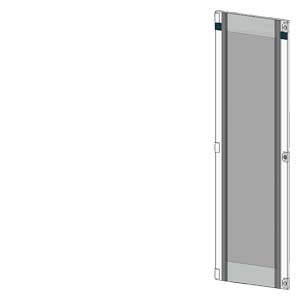

| 122509 | 8PQ2197-0BA01 | sikus/sivacon field door w. inspection window degree of protection up to ip55 hinges on left side two-way height 1975mm width 850mm . . . | 20.5 | Заказать |
| 122510 | 8PQ2197-0BA03 | sikus/sivacon field door closed degree of protection ip40 hinges on left side two-way height 1975mm width 350mm . . . | 10.82 | Заказать |
| 76017 | 8PQ2197-0BA04 | sikus/sivacon field door closed degree of protection ip40 hinges on left side two-way height 1975mm width 850mm . . . | 22.77 | Заказать |
| 122511 | 8PQ2197-0BA06 | sikus/sivacon field door closed degree of protection ip55 hinges on left side two-way height 1975mm width 350mm . . . | 13.4 | Заказать |
| 76018 | 8PQ2197-0BA07 | sikus/sivacon field door closed degree of protection ip55 hinges on left side two-way height 1975mm width 850mm . . . | 25.91 | Заказать |
| 122512 | 8PQ2197-0BA10 | sikus/sivacon door wiring support door height 1975mm . . . . . . . . | 1.95 | Заказать |
| 122516 | 8PQ2197-0BA16 | sikus/sivacon field door closed degree of protection ip40 hinges on right side two-way height 1975mm width 350mm . . . | 10.82 | Заказать |
| 76019 | 8PQ2197-0BA17 | sikus/sivacon field door closed degree of protection ip40 hinges on right side two-way height 1975mm width 850mm . . . | 22.7 | Заказать |
| 122517 | 8PQ2197-0BA18 | sikus/sivacon field door closed degree of protection ip55 hinges on right side two-way height 1975mm width 350mm . . . | 13.4 | Заказать |
| 76020 | 8PQ2197-0BA20 | sikus/sivacon field door closed degree of protection ip55 hinges on right side two-way height 1975mm width 850mm . . . | 25.91 | Заказать |
| 76021 | 8PQ2197-0BA21 | sikus/sivacon field door w. inspection window degree of protection up to ip55 hinges on right side two-way height 1975mm width 850mm . . . | 20.5 | Заказать |
| 76022 | 8PQ2197-0BA22 | sikus/sivacon double section door degree of protection ip40 hinges on right side, links two-way height 1975mm width 1100mm . . . . | 31.22 | Заказать |
| 76023 | 8PQ2197-0BA23 | sikus/sivacon double section door degree of protection ip55 hinges on right side, links two-way height 1975mm width 1100mm . . . . | 34.66 | Заказать |
| 76048 | 8PQ2197-4BA12 | sikus/sivacon field door closed degree of protection ip40 hinges on left side two-way height 1975mm width 400mm . . . | 12 | Заказать |
| 122537 | 8PQ2197-4BA13 | sikus/sivacon field door closed degree of protection ip55 hinges on left side two-way height 1975mm width 400mm . . . | 14.64 | Заказать |
| 122538 | 8PQ2197-4BA15 | sikus/sivacon field door closed degree of protection ip40 hinges on right side two-way height 1975mm width 400mm . . . | 12 | Заказать |
| 122539 | 8PQ2197-4BA16 | sikus/sivacon field door closed degree of protection ip55 hinges on right side two-way height 1975mm width 400mm . . . | 14.64 | Заказать |
| 76053 | 8PQ2197-6BA10 | sivacon s4 cubicle door with transparent degree of protection up to ip55 hinge left double bit key height 1975mm width 600mm | 4.26 | Заказать |
| 122546 | 8PQ2197-6BA14 | sivacon s4 cubicle door with transparent degree of protection up to ip55 hinge right double bit key height 1975mm width 600mm | 3.23 | Заказать |
| 76056 | 8PQ2197-6BA16 | sikus/sivacon field door closed degree of protection ip40 hinges on left side two-way height 1975mm width 600mm . . . | 16.8 | Заказать |
| 122547 | 8PQ2197-6BA17 | sikus/sivacon field door closed degree of protection ip55 hinges on left side two-way height 1975mm width 600mm . . . | 19.66 | Заказать |
| 76057 | 8PQ2197-6BA20 | sikus/sivacon field door closed degree of protection ip40 hinges on right side two-way height 1975mm width 600mm . . . | 16.8 | Заказать |
| 122548 | 8PQ2197-6BA21 | sikus/sivacon field door closed degree of protection ip55 hinges on right side two-way height 1975mm width 600mm . . . | 16.66 | Заказать |
