Cables for SIPLUS CMS4000

Summary of cables for SIPLUS CMS4000

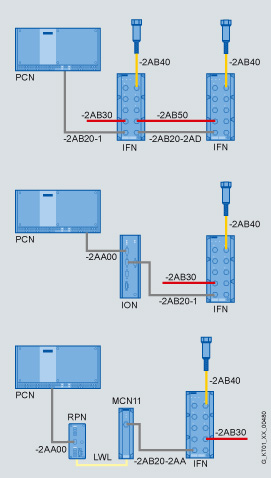

Various cables are available for connecting the different components of a CMS4000 setup:

• CABLE-IEEE1394A-66/46 (6AT8 000-2AA00-...):
  for coupling ION-ION, ION-PC, PC-RPN and ION-RPN over IEEE1394 (FireWire);
  CABLE-IEEE1394A-46-450 permits connection of a notebook to the system.
• CABLE-IEEE1394A-8F (6AT8 000-2AB20-1...):
  for coupling PC-IFN, ION-IFN and RPN-IFN over IEEE1394 (FireWire).
• CABLE-IEEE1394A-8M (6AT8 000-2AB20-2AA...):
  for coupling IFN-MCN11 over IEEE1394 (FireWire);
• CABLE-Power (6AT8 000-2AB30-...):
  for power supply to the IFN. IFN ADD must be used to pass on the power from the first IFN to further IFNs in a line topology (see below).
• IFN ADD (6AT8 000-2AB50-...):
  modular set to directly pass on the power supply from one IFN to an adjacent IFN. Consisting of power cable and Y connector. The Y connector is required because passing on is via the LNK socket to which the IEEE1384 bus cable to the next IFN must be connected in addition to the power cable.
• CABLE-IEEE1394A-88 (6AT8 000-2AB20-2AD...):
  for coupling IFN-IFN over IEEE1394 (FireWire).
• CABLE-IO (6AT8 000-2AB40-...):
  for connection of sensor system to IFN.

Mounting set

Mounting sets are available for IFN and MCN11. They contain mounting brackets for wall mounting.

Coping set

The coping set contains a set of caps for closing unused IFN sockets.

More information and product details can be obtained from

• the SIPLUS CMS homepage http://www.siemens.com/siplus-cms
• or from our service pages http://support.automation.siemens.com
