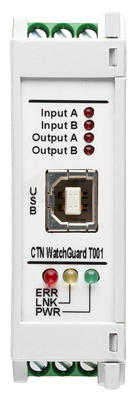

CTN WatchGuard T001 производства Siemens

CTN WatchGuard T001

Connections

Power supply

Over USB interface

• Input voltage

5 V DC

• Power loss at 5 V DC

Max. 1 W

• Current consumption at 5 V DC

Max. 200 mA

USB interface

USB 1.1

• Quantity

1

• Design

USB socket type B

• Data rate

12 Mbit/s

• Standard

USB 1.1

Input interfaces

IA+, IA-, IB+, IB-

• Quantity

2

• Design

3-pin terminal blocks

• Input voltage

0 ... 24 V

• Input withstand voltage

+/- 48 V

• Insulation strength

+/- 0.4 kV

• Input current

2.1 mA ≤ I ≤ 3.5 mA

• Scanning frequency

≤ 100 Hz / binary input

• Resolution

1 bit

• Response time

≥ 10 ms

• Switching threshold logical “0”

U < + 5 V

• Switching threshold logical “1”

U > + 12 V

• Hysteresis

< 200 mV

Output interfaces

NOA, NCO, NOB, NCB

• Quantity

2

• Design

3-pin terminal blocks

• Version

One NC contact (NCx) and one NO contact (NOx) per relay

• Switchable power

60 W, 125 VA

• Switchable voltage

150/210 V DC/AC

• Insulation strength

+/- 0.4 kV

Permissible cables / cable length

USB

In accordance with USB standard

Inputs/outputs

Maximum length: 3 m

Permissible environmental conditions / EMC

Operating temperature

0 ... +55 °C

Storage/transport temperature

-25 ... +85 °C

Relative humidity during operation

5 ... 95 %, non-condensing

Radio interference level

EN 55011

Interference immunity

EN 61000-6-2

Degree of protection

IP20

Constructional design

Dimensions (H x W x D) in mm

71 x 18 x 107

Version

Plastics

Color

White

Weight

104 g

Mounting type

DIN EN 50022-35x15 rail (thickness 2.3 mm)

Approvals

CE

yes
