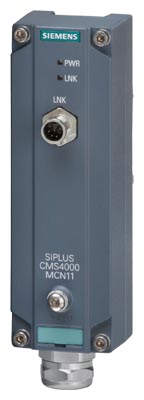

The MCN11 media converter node is a rugged media converter to increase the range of the IEEE1394 bus. The MCN11 converts the electrically transferred data bidirectionally into signals for the optical transmission with which distances up to 500 m can be covered.
MCN11 | |
Interfaces and connecting cables | |
IEEE 1394a electrical | |
| 1 |
| Male connector 8-pole (M12) |
| 400 Mbit/s |
| Pre-assembled 8-pole cable with shield (length: 30 cm) |
| Approx. 0.6 W |
IEEE 1394b optical | |
| 1 |
| Duplex SC 62.5/125 µm multimode fiber (MMF) |
| 850 nm |
| 400 Mbit/s |
| 50 / 125 µm MMF up to 500 m long |
Functional ground | |
Version | M4 screw on the front (shield) |
Terminal area | Cable lug for M4 screw |
Environmental conditions | |
Operating temperature | 0°... +65 °C |
Storage/transport temperature | -40 ... +85 °C |
Degree of protection | IP67 |
Constructional details | |
Enclosure | Aluminum |

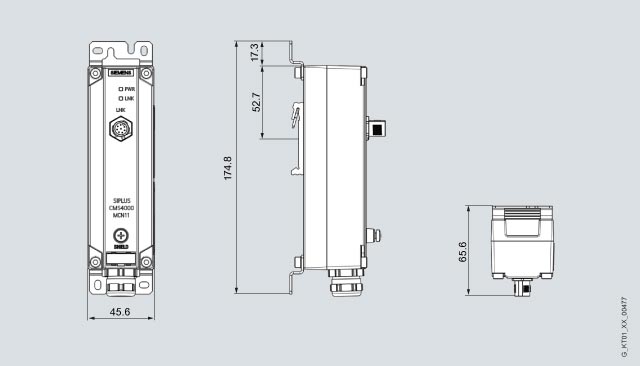

Dimensions (H x W x D) in mm | 160 x 46 x 56 (without assembly) 160 x 46 x 65 (standard rail mounting) |
Mounting | Standard: Standard rail DIN EN 60715TH35-15 |
Minimum clearances | 80, 25, 25 |
Weight | Approx. 460 g |
Approvals | |
CE | Industrial environment |
1) Accessories, not included in the scope of delivery
The MCN11 media converter node has an electrical IEEE1394a interface and an optical IEEE1394b interface.
Two MCN11 nodes are inserted into the path in order to extend the bus distance. The optical bus cable used for the extension runs between the two nodes.
Alternatively, the MCN11 can be directly connected optically to an RPN IEEE1394B T001/T002 multi-port repeater.
More information or product details can be obtained from
