ION PROFIBUS DP SPY T001 производства Siemens

  • Interface node for recording of numerical data transferred over PROFIBUS DP between fieldbus nodes
  • Reaction-free connection to PROFIBUS DP
  • For transferring recorded signals to a higher-level industrial PC via IEEE1394a (FireWire) with 400 Mbit/s
  • Mounting on DIN rail

ION PROFIBUS DP SPY T001



Connections



Power supply interface

24 V / 0 V / PD

  • Number


  • Version

3-pin Phoenix Contact terminal block

  • Type

Input

  • Input voltage

18 ... 32 V DC

  • Typ. power loss at 24 V DC

12 W

  • Typ. current consumption at 24 V DC

0.5 A

IEEE1394a interfaces

P1 … P3

  • Number

3

  • Version

6-pin socket

  • Type

IEEE1394a interface

  • Data transfer rate

400 Mbps

  • Standard

IEEE1394a

Fieldbus interface

BUS

  • Number

1

  • Version

9-pin SUB D socket

  • Type

PROFIBUS DP interface

  • Data transfer rate

9.6 / 19.2 / 45.45 / 93.75 / 187.5 / 500 kbit/s
1.5 / 3 / 6 / 12 Mbit/s

  • Operating mode

Bus monitor

  • Standard

PROFIBUS DP

Permissible cables / cable length



FireWire

In accordance with IEEE1394a standard

PROFIBUS DP

In accordance with PROFIBUS DP standard

Permissible environmental conditions / EMC



Operating temperature

0 ... +55 °C

Storage/transport temperature

-25 ... +85 °C

Relative humidity during operation

5 ... 95%, non condensing

Radio interference level

EN 55011:2007 (Limit Class A)

Interference immunity

EN 61000-6-2:2005

Degree of protection

IP20

Constructional details

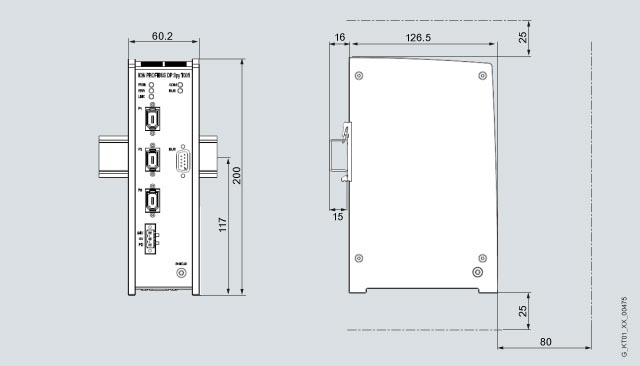

Dimensions (H x W x D) in mm

200 x 60.2 x 126.5

Version

Aluminum / stainless steel

Color

Silver

Weight

1 kg

Mounting type

Rail
DIN EN 50022-35x15 (thickness 2.3 mm)

Approvals



CE

EN 61000-6-2:2005

EN 55011:2007


Hardware and software requirements

Hardware:

  • PC with Windows XP Professional (Service Pack 2 recommended)
    • CPU ≥ 2.4 GHz
    • RAM ≥ 512 MB
    • OpenGL-capable graphics card (1024x768 pixels and more, 1280x1024 pixels or more recommended)
    • IEEE1394, Ethernet, and USB interfaces
  • Power supply modules and connecting cables (depending on the SIPLUS CMS4000 components used)

Software:

  • SIPLUS CMS4000 X-Tools (Standard or Professional edition)
Network topology

The IEEE1394a standard makes it possible to build extensive networks with up to 63 nodes. The network topology is that of a bus with branches, but without loops.

The ION PROFIBUS DP SPY T001 can be networked with tree or linear bus topology.

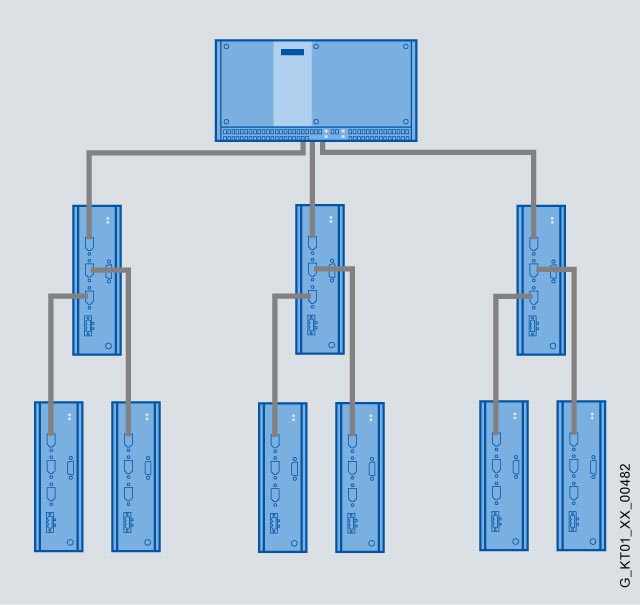

With the tree topology, two further bus nodes are connected to each bus node.

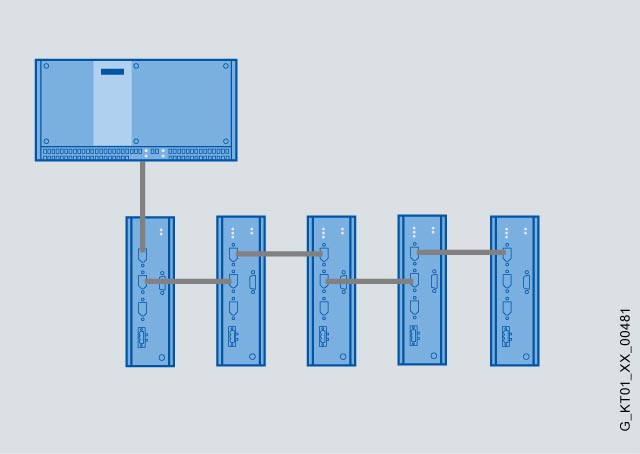

With the linear topology, one further bus node is connected to each bus node.

A maximum of 63 bus nodes can be connected. The maximum number of hops (point-to-point connections) from one bus node to any other is limited to 15. For this reason not more than 16 devices may be connected in series.
