ION ANALOGINPUT T001 производства Siemens

  • Interface node for recording analog signals
  • Recording of 8 analog, individually isolated signals with a +/-10 V level
  • Sampling frequency max. 40 kHz per channel
  • For transferring recorded signals to a higher-level industrial PC via IEEE1394a (Firewire) with 400 Mbit/s
  • Mounting on DIN rail

ION ANALOG INPUT T001



Connections



Power supply interface

24 V / 0 V / PD

  • Number

1

  • Version

3-pin Phoenix Contact terminal block

  • Type

Input

  • Input voltage

18 ... 32 V DC

  • Typ. power loss at 24 V DC

12 W

  • Typ. current consumption at 24 V DC

0.5 A

IEEE1394a interfaces

P1 … P3

  • Number

3

  • Version

6-pin socket

  • Type

IEEE1394a interface

  • Data transfer rate

400 Mbit/s

  • Standard

IEEE1394a

Analog interfaces

CH 01 … 08

  • Number

8

  • Version

16-pin Phoenix Contact terminal block

  • Type

Differential inputs

  • Input voltage

+/-10 V

  • Input withstand voltage

+/-60 V

  • Insulation strength

+/-0.4 kV

  • Electrical isolation

Analog inputs individually isolated

  • Input resistance

R ≥ 1 MΩ

  • Input current

l < 10 µA

  • Scanning frequency

≤ 40 kHz / analog input

  • Resolution

16 bits (15+1)

  • Coupling

DC

  • Gain error

0.025% +/- 1 digit

  • Offset error

0.017% +/- 1 digit

  • Static offset

Max. 0.12%

  • CMR

100 dB

Permissible cables / cable length



FireWire

In accordance with IEEE1394a standard

Analog inputs

Maximum length: 3 m

Permissible environmental conditions / EMC



Operating temperature

0 ... +55 °C

Storage/transport temperature

-25 ... +85 °C

Relative humidity during operation

5 ... 95%, non condensing

Radio interference level

EN 55011:2007 (Class A)

Interference immunity

EN 61000-6-2:2005

Degree of protection

IP20

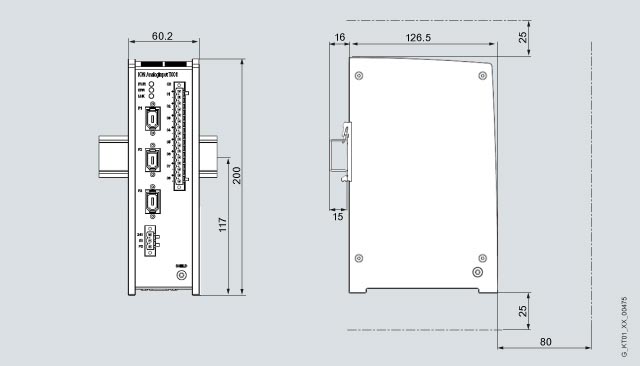

Constructional details



Dimensions (H x W x D) in mm

200 x 60.2 x 126.5

Version

Aluminum / stainless steel

Color

Silver

Weight

1 kg

Mounting type

DIN EN 50022-35x15 rail (thickness 2.3 mm)

Approvals



CE

EN 61000-6-2:2005
EN 55011:2007


Hardware and software requirements

Hardware:

  • PC with Windows XP Professional (Service Pack 2 recommended)
    • CPU ≥ 2.4 GHz
    • RAM ≥ 512 MB
    • OpenGL-capable graphics card (1024x768 pixels and more, 1280x1024 pixels or more recommended)
    • IEEE1394, Ethernet, and USB interfaces
  • Power supply modules and connecting cables (depending on the SIPLUS CMS4000 components used)

Software:

  • SIPLUS CMS4000 X-Tools (Standard or Professional edition)
Network topology

The IEEE1394a standard makes it possible to build extensive networks with up to 63 nodes. The network topology is that of a bus with branches, but without loops.

The ION ANALOG INPUT T001 can be networked with tree or linear bus topology.

With the tree topology, two further bus nodes are connected to each bus node.

With the linear topology, one further bus node is connected to each bus node.

A maximum of 63 bus nodes can be connected. The maximum number of hops (point-to-point connections) from one bus node to any other is limited to 15. For this reason not more than 16 devices may be connected in series.
