The IFN VIB-ACC (vibration acceleration) is a rugged interface node for SIPLUS CMS4000 for detecting mechanical vibrations in the frequency range from 0.1 Hz to 40 kHz.
The IFN VIB-ACC is used for continuous monitoring with high accuracy in harsh environments.
IFN VIB-ACC | |
Communication (LNK0…LNK2) | |
Number | 3 |
Connector | Female connector 8-pole (M12) |
Protocol | IEEE1394a / b |
Data transfer rate | 400 Mbps |
Electrical isolation | No |
Power supply (PWR) | |
Connector | Male connector 5-pole (M12) |
DC input voltage | 19.2 … 32 V |
DC overvoltage protection | Max. 35 V |
DC current consumption | Typ. 0.2 A at 24 V DC |
Reverse polarity protection | Yes |
Power supply | Stabilized |
DC power consumption | Typ. 4.8 W |
Electrical isolation | No |
Measuring inputs (CH1…CH6) | |
Number | 6 |
Connector | Female connector 5-pole (M12) |
Resolution | 16 bits (15 + sign) |
DC overvoltage protection | ±60 V |
Postscanning (parameterizable in X-Tools) | 0.014 / 0.33 / 4 / 8 / 16 / 24 / 48 / 64 / 96 kHz |
IEPE sensor input (CH1…CH6) | |
Crosstalk attenuation (CTA) | -70 dB at 1 kHz |
Signal-to-noise ratio (SNR) | -70 dB |
Scanning frequency | 192 kHz |
Input frequency range | 0.0001 … 40 kHz |
Accuracy | ± 0,7 % |
Electrical isolation | No |
Cable open-circuit monitoring | Yes |
Cable short-circuit monitoring | Yes |
Analog input (CH6) | |
DC input voltage | ±30 V |
DC input frequency range | 0 … 1 kHz |
Crosstalk attenuation (CTA) | -78 dB at 1 kHz |
Signal-to-noise ratio (SNR) | -69 dB |
Scanning frequency | 192 kHz |
Accuracy | ± 1 % |
Cable open-circuit monitoring | No |
Cable short-circuit monitoring | No |
Functional ground | |
Connection | M4 screw with contact washer |
Cable cross-section | 2.5 mm2 |
Connecting cable | |
Communication | Pre-assembled 8-pole cable (shielded) 1) |
Signal inputs | Pre-assembled 5-pole cable (shielded) 1) |
Power supply | Pre-assembled 5-pole cable (shielded) 1) |
Environmental conditions | |
Operating temperature | -40 ... +65 °C |
Storage/transport temperature | -40 ... +85 °C |
Degree of protection | IP67 |
Constructional details | |
Enclosure | Aluminum |

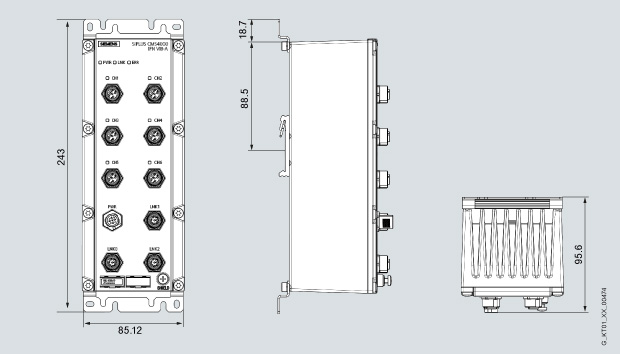

Dimensions incl. connector (H x W x D) in mm | 210 x 86 x 87 (without assembly) |
Mounting | Standard: DIN rail (DIN EN 60715 TH35-15) |
Minimum clearances (front, top, bottom) in mm | 80, 25, 25 |
Weight | Approx. 1240 g |
Approvals | |
CE | Industrial environment |
1) See Operating Instructions for accessories (not included in scope of delivery)

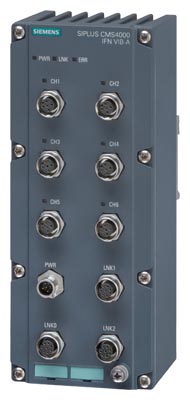

The IFN VIB-ACC has at its front:
The connection to the higher-level evaluation PC is via an IEEE1394 bus system with 400 Mbps.
The module can be mounted on a DIN rail or with mounting brackets.
With the IFN VIB-ACC it is possible to record
The maximum sampling frequency is 192 kHz per channel.
More information or product details can be obtained from
| Код | Заказной номер | Описание | Вес (кг) | Заказать |
|---|---|---|---|---|
| 60836 | 6AT8000-0AB00-1BA0 | castomat - software x-tools standard v 03.00; process data simulation; process data storage; process data visualisation; process data evaluation; | 0.3 | Заказать |
| 109248 | 6AT8000-0AB00-2BA0 | castomat - software x-tools professional v 03.00; process data simulation; process data storage; process data visualisation; process data evaluation; server-client coupling | 0.3 | Заказать |
| 60844 | 6AT8000-1BB00-4XA0 | siplus cms - hardware ifn vib-a acquisition of analog signals; detection of machine vibrations 6*iepe-input for vibration acceleration meas ub=24vdc; ip67 | 1.5 | Заказать |
| 60847 | 6AT8000-2AA00-1AA3 | castomat - accessories cable-ieee1394a-66-0030 length=00,30m; 6-6 plug; | 0.025 | Заказать |
| 60848 | 6AT8000-2AA00-1AB0 | castomat - accessories cable-ieee1394a-66-0100 length=01.00m; 6-6 plug; | 0.025 | Заказать |
| 109254 | 6AT8000-2AA00-1AC0 | castomat - accessories cable-ieee1394a-66-0200 length=02.00m; 6-6 plug; | 0.025 | Заказать |
| 109255 | 6AT8000-2AA00-1AE5 | castomat - accessories cable-ieee1394a-66-0450 length=04.50m; 6-6 plug; | 0.025 | Заказать |
| 60850 | 6AT8000-2AA10-1AE5 | castomat - accessories cable-ieee1394a-46-0450 length=04.50m; 4-6 plug; | 0.025 | Заказать |
| 60851 | 6AT8000-2AB20-1AB0 | siplus cms — принадлежность (кабель) -ieee1394a-8f-0040 длина=0.40m; ieee1394 ifn-pc coupling | 0.001 | Заказать |
| 109257 | 6AT8000-2AB20-1AC0 | siplus cms - accessories cable-ieee1394a-8f-0200 length=2.00m; ieee1394 ifn-pc coupling | 0.12 | Заказать |
| 60852 | 6AT8000-2AB20-1AE5 | siplus cms - accessories cable-ieee1394a-8f-0450 length=4.50m; ieee1394 ifn-pc coupling | 0.24 | Заказать |
| 109258 | 6AT8000-2AB20-2AA2 | siplus cms - accessories cable-ieee1394a-8m-0030 length=0.30m; ieee1394 ifn-mcn11 coupling | 0.06 | Заказать |
| 109260 | 6AT8000-2AB30-1AA2 | siplus cms - accessories cable-power-200-0000; length=2.00m; ifn power cable | 0.12 | Заказать |
| 60854 | 6AT8000-2AB30-1AA5 | siplus cms - accessories cable-power-500-0000; length=5.00m; ifn power cable | 0.28 | Заказать |
| 60855 | 6AT8000-2AB30-1AB0 | siplus cms - accessories cable-power-1000-0000; length=10.00m; ifn power cable | 0.52 | Заказать |
| 109261 | 6AT8000-2AB40-1AA2 | siplus cms - accessories cable-io-200-0000; length=2.00m; ifn io cable | 0.001 | Заказать |
| 109262 | 6AT8000-2AB40-1AA5 | siplus cms - accessories cable-io-500-0000; length=5.00m; ifn io cable | 0.28 | Заказать |
| 60856 | 6AT8000-2AB40-1AB0 | siplus cms - accessories cable-io-200-0000; length=2.00m; ifn io cable | 0.52 | Заказать |
| 60857 | 6AT8000-2AB50-1AA2 | siplus cms - accessories ifn add0020; length=0.20m; ifn energy and ieee1394 cable | 0.12 | Заказать |
| 109263 | 6AT8000-2AB50-1AB0 | siplus cms - accessories ifn add0100; length=1.00m; ifn energy and ieee1394 cable | 0.2 | Заказать |
| 60858 | 6AT8000-2AB50-1AC0 | siplus cms - accessories ifn add0200; length=2.00m; ifn energy and ieee1394 cable | 0.28 | Заказать |
| 109264 | 6AT8000-2AB50-1AE5 | siplus cms - accessories ifn add0450; length=4.50m; ifn energy and ieee1394 cable | 0.52 | Заказать |
| 109265 | 6AT8000-2BB00-0XA0 | siplus cms - accessories coping set for ifn ai and ifn vib-a | 0.001 | Заказать |
| 109266 | 6AT8000-2BB00-0XB0 | siplus cms - accessories mounting set; wall mount for ifn ai and ifn vib-a | 0.04 | Заказать |
