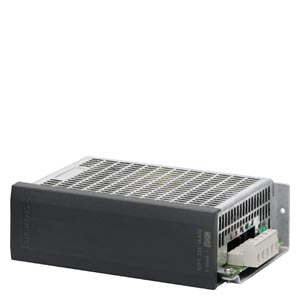

SITOP PSA100E 12 A производства Siemens

Order No.

6EP1 234-1AA00

Technical specifications

Product

SITOP PSA100E

Power supply, type

24 V/12 A

Input

Input

1-phase AC

Supply voltage 1 at AC nominal value

230 V

Voltage range

187 … 264 V

Overvoltage resistance

-

Mains buffering at Iout rated, min.

10 ms

Rated line frequency

• 1

50 Hz

• 2

60 Hz

Rated line range

47 … 63 Hz

Input current at nominal level of the input voltage 230 V nominal value

2.5 A

Switch-on current limiting (+25 °C), max.

50 A

I²t, max.

3.3 A²·s

Built-in incoming fuse

internal

Protection in the mains power input (IEC 898)

Recommended miniature circuit breaker: from 10 A, characteristic C

Output

Output

controlled, isolated DC voltage

Rated voltage Vout DC

24 V

Total tolerance, static ±

3 %

Static mains compensation, approx.

0.1 %

Static load balancing, approx.

0.5 %

Residual ripple peak-peak, max.

0.15 V

Spikes peak-peak, max. (bandwidth: 20 MHz)

0.25 V

Adjustment range

23 … 26 V

Product feature output voltage adjustable

Yes

Output voltage setting

via potentiometer

Status display

Green LED for 24 V OK

On/off behavior

Overshoot of Vout < 5 %

Startup delay, max.

0.3 s

Voltage increase time of the output voltage maximum

0.5 s

Rated current value Iout rated

12 A

Current range

0 … 12 A

Note

12 A up to +45 °C, 6 A up to +70 °C

delivered active power typ.

288 W

Parallel switching for enhanced performance

Yes

Numbers of parallel switchable units for enhanced performance

2

Efficiency

Efficiency at Vout rated, Iout rated, approx.

88 %

Power loss at Vout rated, Iout rated, approx.

39 W

Closed-loop control

Dynamic mains compensation (Vin rated ±15 %), max.

0.3 %

Dynamic load smoothing (Iout: 50/100/50 %), Uout ± typ.

3.5 %

Load step setting time 50 to 100%, typ.

0.1 ms

Load step setting time 100 to 50%, typ.

0.1 ms

Protection and monitoring

Output overvoltage protection

< 35 V

Current limitation, typ.

13.2 A

Characteristic feature of the output short-circuit protected

Yes

Short-circuit protection

Electronic shutdown, automatic restart

Enduring short circuit current Effective level maximum

7.5 A

Overload/short-circuit indicator

-

Safety

Primary/secondary isolation

Yes

Potential separation

Safety extra low output voltage Vout according to EN 60950-1 and EN 50178

Protection class

Class I

stray current

• maximum

3.5 mA

• typical

0.8 mA

CE mark

Yes

UL/CSA approval

Yes

UL/cUL (CSA) approval

cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259

Explosion protection

-

FM approval

No

FM approval

-

CB approval

Yes

Marine approval

-

Degree of protection (EN 60529)

IP20

EMC

Emitted interference

EN 55022 Class B

Supply harmonics limitation

-

Noise immunity

EN 61000-6-2

Operating data

Ambient temperature

• in operation

-10 … +70 °C

• Note

with natural convection

Ambient temparature

• on transport

-40 … +85 °C

Ambient temparature

• in storage

-40 … +85 °C

Humidity class according to EN 60721

Climate class 3K3, no condensation

Mechanics

Connection technology

screw-type terminals

Connections

• Supply input

L, N, PE: Removable screw terminal, each 1 x 0.5 ... 2.5 mm²

• Output

+, -: Removable screw terminal each for 1 x 0.5 ... 2.5 mm²

• Auxiliary

-

Width of the housing

52 mm

Height of the housing

170 mm

Depth of the housing

110 mm

Installation width

52 mm

Installation height

230 mm

Weight, approx.

0.9 kg

Product feature of the housing housing for side-by-side mounting

Yes

Type of mounting wall mounting

Yes

Type of fixing cap rail mounting

Yes

Type of mounting S7-300 rail mounting

No

Installation

Snaps onto DIN rail EN 60715 35x7.5/15, wall mounting
