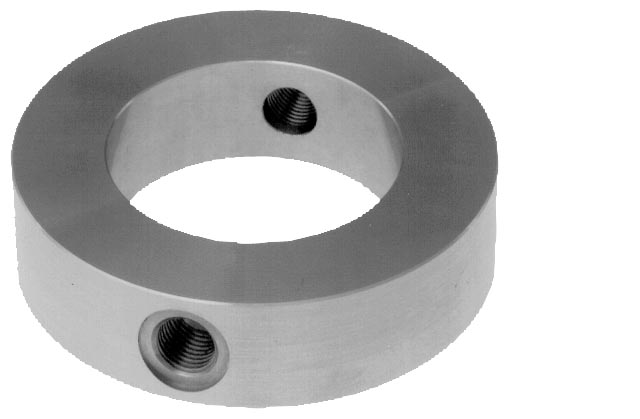

Flushing ring
Flushing rings are required for flange-mounted and sandwich-type remote seals (Order No. 7MF4900 ... 7MF4923) if the danger exists that the process conditions and the geometry of the connection could cause the medium to form deposits or blockages.
The flushing ring is clamped between the process flange and the remote seal.
Deposits can be flushed away from the diaphragm through the holes in the side, or the pressure volume can be vented. Different nominal diameters and forms permit adaptation to the respective process flange.
For flanges to EN and ASME:
DN 50, 80, 100, 125; PN 16 ... 100 or
DN 2 inch, 3 inch, 4 inch, 5 inch; Class 150 ... 600
Material: CrNi-Stahl, mat. No. 1.4404/316L
Sealing faces and flushing holes: See Ordering data
Flushing ring for remote seals of sandwich and flange design | |
|---|---|
Nominal diameter | Nominal pressure |
| PN 16 ... PN 100 |
| PN 16 ... PN 100 |
| PN 16 ... PN 100 |
| PN 16 ... PN 100 |
| Class 150 ... class 600 |
| Class 150 ... class 600 |
| Class 150 ... class 600 |
| Class 150 ... class 600 |
Sealing face | |
| Form B1 |
Form B2 | |
Form D/Form D | |
Form C/Form C | |
Form C/Form C | |
Form E | |
Form F | |
| RF 125 ... 250 AA |
RFSF | |
RJT ring groove | |
Flushing holes (2 off), female thread: |
|
| |
| |
| |
Material | Stainless steel 1.4404/316L |
Installation example
Flushing ring, dimension drawing
DN | PN | d4 | di | h | Weight |
|---|---|---|---|---|---|
mm (inch) | bar | mm (inch) | mm (inch) | mm (inch) | kg |
50 | 16 … 100 | 102 | 62 | 30 | 1,10 |
80 | 16 … 100 | 138 | 92 | 30 | 1,90 |
100 | 16 … 100 | 162 | 92 | 30 | 3,15 |
125 | 16 … 100 | 188 | 126 | 30 | 3,50 |
DN | Class | d4 | di | h | Weight | ||||
|---|---|---|---|---|---|---|---|---|---|
inch | mm (inch) | (inch) | mm (inch) | (inch) | mm (inch) | (inch) | kg | (lb) | |
2 | 150 … 600 | 92 | (3.62) | 62 | (2.44) | 30 | (1.18) | 0,60 | (1.32) |
3 | 150 … 600 | 127 | (5) | 92 | (3.62) | 30 | (1.18) | 1,05 | (2.31) |
4 | 150 … 600 | 157 | (6.18) | 92 | (3.62) | 30 | (1.18) | 2,85 | (6.28) |
5 | 150 … 600 | 185,5 | (7.3) | 126 | (4.96) | 30 | (1.18) | 3,30 | (7.28) |
