SIMATIC RF680M is a powerful, mobile RFID reader for applications in the field of production logistics, warehouse management, inventories and service. The device is also an important tool for commissioning and testing of RFID systems. Thanks to the high transmit power, the RFID transponders can even be reliably detected at large distances.
Mobile handheld terminal | SIMATIC RF680M |
|---|---|
Transmission frequency | 865 … 868 MHz (ETSI) |
Radiated power (adjustable) | 500 mW ERP |
Range | Max. 1.5 m |
Protocol (air interface) | EPCglobal Class 1 Gen 2 / ISO 18000-6C |
Multitag/Bulk capability | Yes |
Processor | PXA270 624 MHz |
Operating system | Microsoft Windows. CE 5.0 |
Memory size RAM/Flash | 256 MB / 1 024 MB |
User program | RF680M application and API interface; standard user interface for reading/writing data memories and for saving the data |
Screen | Color display TFT, 3.7 VGA display 640 x 480 pixels (portrait format) with touch function and adjustable backlighting |
Keyboard | Alphanumeric plus function keys and touch screen |
Sound | Piezo signal transmitter |
Power supply | Lithium-ion battery (3.7 V; 3 300 mAh) for rapid charging; automatic switch-off |
Interfaces | LIF interface (LIF: Low Insertion Force) for battery charging and communication with the PC over a USB interface; additional CF slot for expansion cards (e.g. WLAN) |
Approvals | ETSI EN 302208, CE, FCC, UL |
Ambient temperature |
|
| -20 ... +50 °C |
| -40 ... +60 °C (without batteries) |
Relative humidity, non-condensing | 5 ... 95 % |
Degree of protection according to EN 60529 | IP65 |
Type of construction | |
| 265 X 100 x 42 (without barcode scanner) |
| Black |
| Approx. 0.6 kg |

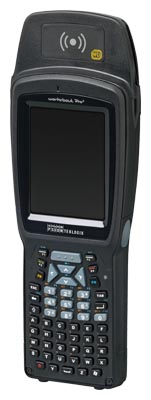

The mobile reader SIMATIC RF680M consists of one basic unit (based on PSION Workabout PRO 3) and one RFID unit for SIMATIC RF600 transponders and SmartLabels. It has a rugged, splashproof housing, an LCD color display with touch functionality and an alphanumeric keyboard with function keys.
The supplied and pre-installed RF600 software provides service and test functions for reading and writing the RF600 transponders and SmartLabels. Data that have been read can be saved in file structures.
In addition, an already installed API library is included. This allows the customer to program his/her own RFID applications for the mobile handheld terminal. For the actual programming, a Software Development Kit (SDK) can be ordered from PSION Teklogix.
Based on the operating system and communication standards (WIN CE), the device ensures easy integration in existing or planned IT networks or in the process infrastructure. For this purpose, various optional development tools are available for the PC as well as a wide range of accessories directly from PSION Teklogix and Microsoft.
| Код | Заказной номер | Описание | Вес (кг) | Заказать |
|---|---|---|---|---|
| 114618 | 6GT2080-2AA20 | rfid systems software & documentation on dvd, fb/fc for simatic, rfid pc libraries, rfid tools | 0.2 | Заказать |
| 66645 | 6GT2813-0BC00 | simatic rf600 mobile reader rf680m etsi basic unit: psion workabout pro 3 c, alpha-numeric, incl. akku 3 ah, ms-windows ce 5.0 rfid-module: uhf, iso 18000-6c, 500 mw, etsi, ce | 0.9 | Заказать |
| 66646 | 6GT2813-0BC10 | simatic rf600 mobile reader rf680m fcc basic unit: psion workabout pro 3 c, alpha-numeric, incl. akku 3 ah, ms-windows ce 5.0; rfid-module: uhf, iso18000-6c, 500 mw, fcc | 0.9 | Заказать |
| 114727 | 6GT2898-0BA00 | simatic rf, зарядное устройство/док станция, зарядное устройство для workabout pro, вкл. широкодиапазонный блок питания с универсальным адаптером и кабелем usb | 1 | Заказать |
| 66665 | 6GT2898-0CA00 | simatic rf сменная батарея для workabout pro, высокая ёмкость (3000 mа*ч) | 0.2 | Заказать |
| 114728 | 6GT2898-0DA00 | simatic rf wlan-модуль для hand terminal simatic rf610m 802.11b & 802.11g cf-card | 0.311 | Заказать |
| 66666 | 6GT2898-0DB00 | simatic rf штрих-код сканнер для hand terminal simatic rf610m add-on scanner 1d laser incl. pistol handle | 0.311 | Заказать |
