The user-friendly STARTER commissioning tool can be used for:
This software can either be operated as a stand-alone PC application or can be integrated into the SCOUT engineering system (with SIMOTION) or STEP 7 (with Drive ES Basic). The basic functions and handling are the same in both cases.
In addition to the SINAMICS DC MASTER, the current version of STARTER also supports all of the SINAMICS AC drives - including MICROMASTER 4 and the frequency converters for the SIMATIC ET 200S FC distributed I/O.
SINAMICS DC MASTER is supported from STARTER 4.1.5; it is not possible to use older STARTER versions.
The project wizards can be used to create the drives within the structure of the project tree.
Entry level personnel are interactivelly supported in a solution-oriented way.

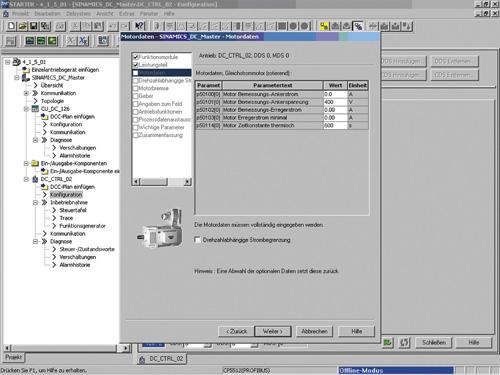

First commissioning is guided by a wizard which makes all of the basic settings in the drive. Therefore, getting a motor up and running is merely a question of setting a few of the drive parameters as part of the drive configuration process.
Examples of individual settings that can be made include:
Experts can quickly access all of the parameters via the Expert List and do not have to navigate through dialogs.
In addition, the following functions are available for optimization purposes:
Diagnostic functions provide information about:
Performance features
Minimum hardware and software requirements
PG or PC with Pentium III 1 GHz
512 MB RAM (1 GB RAM recommended)
Screen resolution 1 024 × 768 pixels, 16 bit color depth
Free hard disk memory: 2 GB
Windows 2000 SP4, Windows 2003 Server SP1, SP2
Windows XP Professional SP2 or SP3
Windows Vista Business SP1, Windows Vista Ultimate SP1
Microsoft Internet Explorer 6.0
Communication between the Control Unit of the drive and the programming device (PG) or PC can be established via a serial interface, via PROFIBUS or PROFINET.
The following accessories are available for the particular drive system:
A PROFIBUS communication module and a connecting cable are required to establish communication between a PG/PC and a CUD.
For example, the PROFIBUS communication module CP 5512 (PCMCIA type 2 card + adapter with 9-pin SUB-D socket for connection to PROFIBUS. For MS Windows 2000/XP Professional and PCMCIA 32)
Order No.: 6GK1551-2AA00
and a connecting cable between CP 5512 and PROFIBUS
Order No.: 6ES7901-4BD00-0XA0
Depending on the version of the Control Unit, the Control Unit (CU) of the drive unit can communicate with the programming device (PG) or PC via a serial interface, PROFIBUS, or Ethernet/PROFINET. The following accessories are available for the particular drive system as listed in the following table.
Order No. | |
|---|---|
PROFIBUS communication module CP 5512 PCMCIA type 2 card + adapter with 9-pin SUB-D socket for connection to PROFIBUS. For MS Windows 2000/XP Professional and PCMCIA 32 | 6GK1551-2AA00 |
Connecting cable between CP 5512 and PROFIBUS | 6ES7901-4BD00-0XA0 |
| Код | Заказной номер | Описание | Вес (кг) | Заказать |
|---|---|---|---|---|
| 111161 | 6ES7901-4BD00-0XA0 | simatic dp, соединительный кабель для подключения программатора к сети profibus-dp, до 12 мбит/с, с двумя 9-полюсными соединителями d-типа, длина 3 m | 0.315 | Заказать |
| 66310 | 6GK1551-2AA00 | simatic net, pb, cp 5512 pc-карта (cardbus, 32 бита) для подключения pg (программатора) или ноутбука к сети profibus или mpi | 0.251 | Заказать |
| 67586 | 6SL3072-0AA00-0AG0 | starter утилита для ввода в эксплуатацию для sinamics и micromaster версия v4.1 sp2 dvd для windows 2000 sp3,sp4 и windows 2003 server sp1 и windows xp prof sp1, sp2, sp3 немецкий английский испанский французский и итальянский | 0.03 | Заказать |
