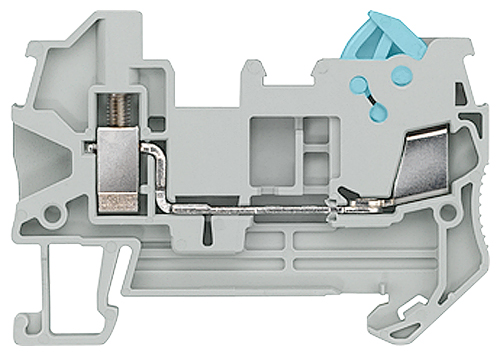

Комбинированные варианты предоставляют все преимущества различных технологий подключения. На
стороне распределительного шкафа применяется, например, дающее выигрыш во времени соединение на
ножевых контактах. Для монтажа со стороны потребителя может применяться универсальное винтовое соединение.
Завершают серию клеммы с нейтральным проводником, имеющие форму аналогичную проходным клеммам.
| Код | Заказной номер | Описание | Вес (кг) | Заказать |
|---|---|---|---|---|
| 123837 | 8WH3100-2DE00 | hybrid feed-through terminal with quick and screw connection, section: 0.25 - 1.5 mm2, width: 5.2 mm, color: gray | 0.018 | Заказать |
| 77341 | 8WH3100-2DE01 | hybrid feed-through terminal with quick and screw connection, section: 0.25 - 1.5 mm2, width: 5.2 mm, color: blue | 0.009 | Заказать |
| 123838 | 8WH3100-2DF00 | hybrid feed-through terminaln with quick and screw connection, section: 0.14 - 2.5 mm2, width: 6.2 mm, color: gray | 0.011 | Заказать |
| 77342 | 8WH3100-2DF01 | hybrid feed-through terminaln with quick and screw connection, section: 0.14 - 2.5 mm2, width: 6.2 mm, color: blue | 0.01 | Заказать |
| 77343 | 8WH3100-2GE00 | hybrid feed-through terminal with spring connection and quick connection, section: 0.25 - 1.5 mm2, width: 5.2 mm, color: gray | 0.007 | Заказать |
| 123839 | 8WH3100-2GE01 | hybrid feed-through terminal with spring connection and quick connection, section: 0.25 - 1.5 mm2, width: 5.2 mm, color: blue | 0.01 | Заказать |
| 77344 | 8WH3100-2GF00 | hybrid feed-through terminal with spring connection and quick connection, section: 0.08 - 6 mm2, width: 6.2 mm, color: gray | 0.01 | Заказать |
| 77345 | 8WH3100-2GF01 | hybrid feed-through terminal with spring connection and quick connection, section: 0.08 - 6 mm2, width: 6.2 mm, color: blue | 0.01 | Заказать |
| 123840 | 8WH3100-3DE07 | hybrid pe terminal with quick and screw connection, section: 0.25 - 1.5 mm2, width:5.2 mm, color: green-yel. | 0.011 | Заказать |
| 123841 | 8WH3100-3DF07 | hybrid pe terminaln with quick and screw connection, section: 0.14 - 2.5 mm2, width:6.2 mm, color: green-yel. | 0.007 | Заказать |
| 123842 | 8WH3100-3GE07 | hybrid pe terminal with spring connection and quick connection, section: 0.25 - 1.5 mm2, width:5.2 mm, color: green-yel. | 0.009 | Заказать |
| 123843 | 8WH3100-3GF07 | hybrid pe terminal with spring connection and quick connection, section: 0.08 - 6 mm2, width:6.2 mm, color: green-yel. | 0.011 | Заказать |
| 123844 | 8WH3103-2DF00 | hybrid feed-through terminal, 3 connect. points, with quick and screw connection, section: 0.25 - 2.5 mm2, width: 6.2 mm, color: gray | 0.015 | Заказать |
| 77348 | 8WH3103-2DF01 | hybrid feed-through terminal, 3 connect. points, with quick and screw connection, section: 0.25 - 2.5 mm2, width: 6.2 mm, color: blue | 0.013 | Заказать |
| 123845 | 8WH3103-2HE00 | hybrid feed-through terminal, 3 connect. points, with spring connection and quick connection, section: 0.25 - 1.5 mm2, width: 5.2 mm, color: gray | 0.01 | Заказать |
| 77349 | 8WH3103-2HE01 | hybrid feed-through terminal, 3 connect. points, with spring connection and quick connection, section: 0.25 - 1.5 mm2, width: 5.2 mm, color: blue | 0.01 | Заказать |
| 123847 | 8WH3103-3DF07 | hybrid pe terminal, 3 connect. points, with quick and screw connection, section: 0.25 - 2.5 mm2, width:6.2 mm, color: green-yel. | 0.018 | Заказать |
| 77352 | 8WH3103-3HE07 | hybrid pe terminal, 3 connect. points, with spring connection and quick connection, section: 0.25 - 1.5 mm2, width: 5.2 mm, color:green-yel. | 0.013 | Заказать |
| 123989 | 8WH9000-0AA00 | cover segment, for f-t term. 2.5mm2, with quick connection, color: gray with 2 one is thrown | 0.1 | Заказать |
| 123992 | 8WH9000-1DA00 | cover, for hybrid f-t terminals 2.5 mm2, quick/ screw connection, color: gray | 0.3 | Заказать |
| 77542 | 8WH9000-2DA00 | cover,for hybrid f-t terminals 2.5 mm2, 3 connect. points, quick/ screw connection, color: gray | 0.3 | Заказать |
| 77552 | 8WH9001-0AA00 | cover segment, for f-t term. 1.5mm2, with quick connection, color: gray with 2 one is thrown | 0.1 | Заказать |
| 77555 | 8WH9001-1DA00 | cover, for hybrid f-t terminals 1.5 mm2, quick/ screw connection, color: gray | 0.3 | Заказать |
| 77559 | 8WH9001-2CA00 | cover, for hybrid f-t terminals 1.5 mm2, 3 connect. points, spring/ quick connection, color: gray | 14.5 | Заказать |
| 124005 | 8WH9001-2DA00 | cover, for hybrid f-t terminals 1.5 mm2, 3 connect. points, quick/ screw connection, color: gray | 0.3 | Заказать |
| 77628 | 8WH9070-0JA00 | compartment partition, for optical and electrical isol. from terminal groups, width: 2 mm, color: gray | 0.5 | Заказать |
| 124092 | 8WH9070-0KA00 | compartment partition, for optical and electrical isol. from terminal groups, for terminals with 3 connect. points, width: 2 mm, color: gray | 1.6 | Заказать |
