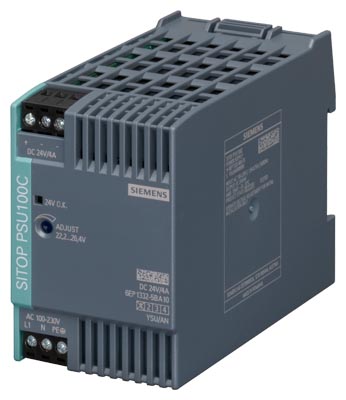

SITOP PSU100C =24 В/4 A производства Siemens

Order No.

6EP1 332-5BA10

Technical specifications

Product

SITOP PSU100C

Power supply, type

24 V/4 A

Input

Input

1-phase AC or DC

Rated voltage value Vin rated

100 … 230 V

Supply voltage 1 at AC maximum nominal value

Voltage range

85 ... 264 V

Input voltage at DC

110 … 300 V

Overvoltage resistance

2.3 × Vin rated, 1.3 ms

Mains buffering at Iout rated, min.

20 ms

Mains buffering

at Vin = 230 V

Rated line frequency

• 1

50 Hz

• 2

60 Hz

Rated line range

47 ... 63 Hz

Input current

• at nominal level of the input voltage 100 V nominal value

2.25 A

• at nominal level of the input voltage 230 V nominal value

1.15 A

Switch-on current limiting (+25 °C), max.

34 A

I²t, max.

3 A²·s

Built-in incoming fuse

internal

Protection in the mains power input (IEC 898)

Recommended miniature circuit breaker: from 16 A, characteristic B or from 10 A, characteristic C

Output

Output

controlled, isolated DC voltage

Rated voltage Vout DC

24 V

Total tolerance, static ±

3 %

Static mains compensation, approx.

Static load balancing, approx.

Residual ripple peak-peak, max.

200 mV

Residual ripple peak-peak, typ.

80 mV

Spikes peak-peak, max. (bandwidth: 20 MHz)

300 mV

Spikes peak-peak, typ. (bandwidth: 20 MHz)

80 mV

Adjustment range

22.2 ... 26.4 V

Product feature output voltage adjustable

Yes

Output voltage setting

via potentiometer

Status display

Green LED for output voltage OK

On/off behavior

Overshoot of Vout approx. 1 %

Startup delay, max.

1.5 s

Voltage rise, typ.

400 ms

Rated current value Iout rated

4 A

Current range

0 ... 4 A

Note

4 A up to +50 °C, 1.2 A up to +70 °C

delivered active power typ.

96 W

short-term overload current at short-circuit during operation typical

Parallel switching for enhanced performance

Yes

Numbers of parallel switchable units for enhanced performance

2

Efficiency

Efficiency at Vout rated, Iout rated, approx.

88 %

Power loss at Vout rated, Iout rated, approx.

13 W

Closed-loop control

Dynamic mains compensation (Vin rated ±15 %), max.

0.1 %

Dynamic load smoothing (Iout: 10/90/10 %), Uout ± typ.

3 %

Load step setting time 10 to 90%, typ.

4 ms

Load step setting time 90 to 10%, typ.

4 ms

Protection and monitoring

Output overvoltage protection

Yes, according to EN 60950

Current limitation, typ.

4.8 A

Characteristic feature of the output short-circuit protected

Yes

Short-circuit protection

Electronic shutdown, automatic restart

Overload/short-circuit indicator

-

Safety

Primary/secondary isolation

Yes

Potential separation

Safety extra low output voltage Vout according to EN 60950-1 and EN 50178

Protection class

Class I

stray current

• maximum

3.5 mA

• typical

0.4 mA

CE mark

Yes

UL/CSA approval

Yes

UL/cUL (CSA) approval

cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cCSAus (CSA C22.2 No. 60950-1, UL 60950-1)

Explosion protection

ATEX (EX) II 3G Ex nA IIC T4

FM approval

No

FM approval

-

CB approval

Yes

Marine approval

GL and ABS in process

Degree of protection (EN 60529)

IP20

EMC

Emitted interference

EN 55022 Class B

Supply harmonics limitation

EN 61000-3-2

Noise immunity

EN 61000-6-2

Operating data

Ambient temperature

• in operation

-20 ... +70 °C

• Note

with natural convection

• on transport

-40 ... +85 °C

• in storage

-40 ... +85 °C

Humidity class according to EN 60721

Climate class 3K3, no condensation

Mechanics

Connection technology

screw-type terminals

Connections

• Supply input

L, N, PE: Removable screw terminal, each 1 x 0.5 ... 2.5 mm²

• Output

+: 1 screw terminal for 0.5 ... 2.5 mm²; -: 2 screw terminals for 0.5 ... 2.5 mm²

• Auxiliary

-

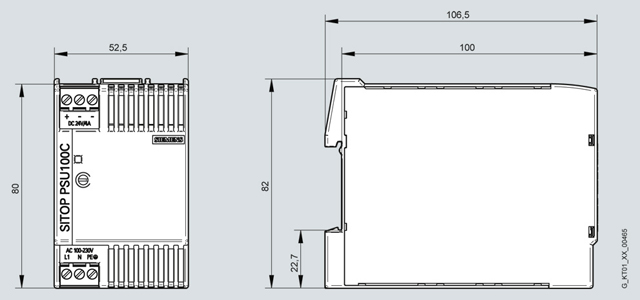

Width of the housing

52.5 mm

Height of the housing

80 mm

Depth of the housing

100 mm

Installation width

52.5 mm

Installation height

180 mm

Weight, approx.

0.32 kg

Product feature of the housing housing for side-by-side mounting

Yes

Type of mounting wall mounting

No

Type of fixing cap rail mounting

Yes

Type of mounting S7-300 rail mounting

No

Installation

Snaps onto DIN rail EN 60715 35x7.5/15

Electrical accessories

Removable spring-type terminal 6EP1971-5BA00
