The display of the electric flow register is a universal LCD for converting the measured value and displaying the current value, total value and accumulated total. Depending on the design, the flow register can be provided with a scaleable pulse output for the total value and/or a current output of 0/4 to 20 mA.
Input | |
Pulse input | NAMUR signal |
Frequency | NAMUR: 0 ... 500 Hz |
Sensor supply | 8.2 V or 24 V DC |
Output |
|
Pulse output | Max. frequency 500 Hz, pulse width 1 ... 9999 ms adjustable. Type: Transistor output, max. load 24 V DC/170 mA (active) and 50 V DC/300 mA (passive) |
Analog output | Range 0/4 ... 20 mA, |
Functionality |
|
Operator | The total value and flow are displayed. |
Total value | 17 mm (0.67 inch) high, 7 digits, max. 3 decimal places; the total value cannot be deleted. Units: l, m3, gal, USg, kg, lb, bbl or none K-factor: 7-digit 0.000010 to 9,999,999 Settings independent of flow |
Accumulated total | 8 mm high, max. 11 digits, max. 3 decimal places, the accumulated total cannot be reset |
Flow | 8 mm (0.31 inch) or 17 mm (0.65 inch) high, max. 7 digits, max. 3 decimal places Units: ml, l, m3, mg, g, kg, ton, NI, Nm³, scf, ref, cf, lb, bbl, gal or none Time units: seconds, minutes, hours, days |
Installation conditions |
|
Operating temperature | -20 ... +70 °C (-4 ... +158 °F) |
Degree of protection | IP67 (NEMA 4) |
Construction |
|
Material | Housing: aluminum, UV-resistant powder coating Window: polycarbonate Sealing material: EPDM and PE |
Dimensions | See Dimensional drawings |
Auxiliary power supply |
|
Power supply | 24 V AC/DC ± 10 % or 115/230 V AC ± 10 % |
Power consumption | Max. 9 W |
Certificates and approvals | |
Ex protection | EEx ia IIB/IIC T4 |
For official calibration inspections | In preparation |

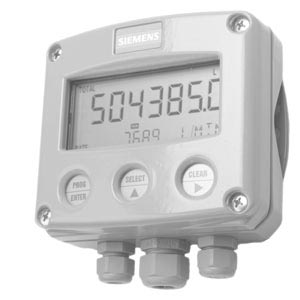

The electric flow register is fitted with a large, extremely clear LCD (90 x 40 mm in size), where the flow and total value are displayed with seven 17 mm digits and 8 mm digits respectively. Units, time units, flow trend and device status are displayed in addition.
The electronics is fitted in a rugged aluminium housing (IP 67) with three large keys. The alphanumeric menu structure in English or German permits simple configuring and can be used for many applications.
Models 61, 63, 65 and 66, 67, 68 are supplied with the electric flow register already mounted on the pulser.
The flow register of the SITRANS F RA110 receives, e.g. from a pulser, information on the current flow. This information is converted into the flow per second, minute, hour or day using a programmable 7-digit K-factor. Conversion is also carried out for the total values and accumulated totals. The units for the flow and accumulated total are completely independent.
The total value can be reset by pressing the "CLEAR" key twice. The accumulated total cannot be reset, and is displayed with 11 digits.
The standard configuration displays the total value (17 mm digits) and the flow (8 mm digits) simultaneously. It is also possible to output the current value on the 17 mm digits. In this case, the total value is displayed by pressing "SELECT". The electric register has inputs for Namur sensors. Connection is possible to practically every available sensor system.
The active and passive 0/4 ... 20 mA analog output has a resolution of 12 bits and can be connected to a load of 750 Ω .
The pulse output can be exactly defined, e.g. to generate one pulse per 3.5 liters. The pulse lengths can be set to 1 ... 9999 ms. The maximum output frequency is limited to 500 Hz. The transistor can switch max. 50 V DC/ 300 mA.
All configuration parameters are saved in an EEPROM. The total value and the accumulated total are saved once a minute, so that only a minimum amount of information is lost in the event of a power failure.
The SITRANS F RA110 can be ordered with powerful LED background lighting for use under unfavorable viewing conditions. The menu language of the displays can be set to German or English.

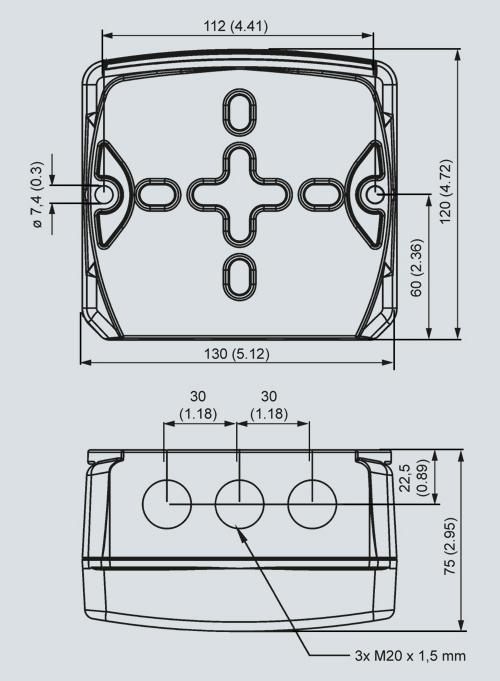

Electric flow register SITRANS F RA110, dimensions in mm (inch)
