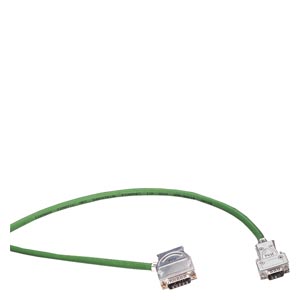

Монтажный кабель ITP производства Siemens

Order No.

6XV1 850-0AH10

6XV1  851-0AH10

Product type designation

ITP Standard Cable GP for Industrial Ethernet

ITP FRNC Cable GP for Industrial Ethernet

Product description

Industrial Twisted Pair cable (4-core), sold by the meter, in bulk

Halogen-free Industrial Twisted Pair cable (4-core), sold by the meter, in bulk

Suitability for application

Used for Industrial Twisted Pair (ITP) networks

Used for Industrial Twisted Pair (ITP) networks

Cable designation

J-02YSCY  2x2x0.64/1.5  PIMF  F  GN

J-02YSCH 2x2x0.64/1.5 PIMF F GN FRNC

Cable length

-

-

Electrical specifications

Attenuation factor per length

• Max. at 10 MHz

57 dB/km

57 dB/km

• Max. at 100 MHz

180 dB/km

180 dB/km

• Max. at 300 MHz

310 dB/km

310 dB/km

Characteristic impedance

• At 1 MHz to 100 MHz

100 Ω

100 Ω

• At 100 MHz to 300 MHz

100 Ω

100 Ω

Relative symmetrical tolerance

• of characteristic impedance at 1 MHz to 100 MHz

15 %

15 %

• of characteristic impedance at 100 MHz to 300 MHz

45 %

45 %

Near-end crosstalk per length

• at 1 MHz to 100 MHz

-

-

• At 1 MHz to 300 MHz

-

-

Surface transfer resistance at 10 MHz

2 mΩ/m

2 mΩ/m

Max. loop resistance per length

124 Ω/km

124 Ω/km

Insulation resistance coefficient

5 000 GΩ·m

5 000 GΩ·m

Operating voltage, maximum

225 V

-

Mechanical data

Number of electrical cores

4

4

Design of shield

Overlapping aluminum-clad foil (per core), surrounded by a complete braided screen of tin-plated copper wires

Overlapping aluminum-clad foil (per core), surrounded by a complete braided screen of tin-plated copper wires

AWG number

-

-

Diameter of AWG22 cores

0.64 mm

0.64 mm

Outer diameter

• of inner conductor

0.64 mm

0.64 mm

• of core insulation

1.5 mm

1.5 mm

Width of cable sheath

9.2 mm

9.4 mm

Symmetrical tolerance of cable sheath width

0.5 mm

0.5 mm

Thickness of cable sheath

6 mm

6 mm

Symmetrical tolerance of cable sheath thickness

0.5 mm

0.5 mm

Material

• of core insulation

PE

PE

• of cable sheath

PVC

FRNC

Material of cable sheath - Note

-

-

Color

• of core insulation of data cores

White/blue, white/orange

White/blue, white/orange

• of cable sheath

Green

Green

Bending radius

• With single bending

30 mm

60 mm

• With repeated bending

45 mm

90 mm

• With continuous bending

-

-

Number of bending cycles

-

-

Number of bending cycles - Note

-

-

Number of torsion cycles with torsion by ± 180° on 1 m cable length

-

-

Maximum tensile load

80 N

80 N

Weight per length

96 kg/km

98 kg/km

Permitted ambient conditions

Ambient temperature

• During operation

-40 … +70 °C

-40 … +80 °C

• During storage

-40 … +70 °C

-40 … +80 °C

• During transport

-40 … +70 °C

-40 … +80 °C

• During mounting

-40 … +70 °C

-25 … +80 °C

Ambient conditions for operation

-

-

IP degree of protection

-

-

Behavior in fire

Flame-retardant in accordance with IEC 60332-1

Flame-retardant in accordance with IEC 60332-3-23 (Category B) and IEC 60332-3-24 (Category C)

Chemical resistance

• Mineral oil

Limited resistance

Limited resistance

• Grease

Limited resistance

Limited resistance

• Water

-

-

Radiological resistance to UV radiation

-

Limited resistance

Product properties, functions, componentsGeneral

Product property

• Halogen-free

No

Yes

• Silicon-free

Yes

Yes

Cable length for 100BaseTX with Industrial Ethernet

-

-

Standards, specifications, approvals

UL-Listing at 300 V rating

No

Yes: CMG / CL3 / Sun Res

UL-Style at 600 V rating

No

No

Certificate of suitability

-

-

Certificate of suitability: RoHS conformity

-

-

Order No.

6GK1 901-0CA00-0AA0

6GK1 901-0CA01-0AA0

Product type designation

ITP plug (9-pin)

ITP plug  (15-pin)

Product description

9-pin SUB-D connector

15-pin SUB-D connector

Suitability for application

For assembling 2x2-core ITP installation cables

For assembling 2x2-core ITP installation cables

Transmission rate

Transmission rate

• 1 with Industrial Ethernet

10 Mbit/s

10 Mbit/s

• 2 with Industrial Ethernet

100 Mbit/s

100 Mbit/s

• 3 with Industrial Ethernet

-

-

Interfaces

Number of electrical/optical connections for Industrial Ethernet FC TP cables

-

-

Design of electrical connection

• for Industrial Ethernet FC TP cables

-

-

• for network components or terminal equipment

SUB-D connector (9-pin)

SUB-D connector (15-pin)

• FastConnect

No

No

Mechanical data

Enclosure material

Metal

Metal

Design, dimensions and weights

Type of cable outlet

180 degree cable outlet

Variable cable outlet

Width

-

39 mm

Height

-

15 mm

Depth

-

42 mm

Net weight

-

50 g

Permitted ambient conditions

Ambient temperature

• During operation

- -

- -

• During storage

- -

- -

• During transport

- -

- -

Relative humidity at 25 °C without condensation during operation, maximum

-

-

IP degree of protection

IP20

IP20

Chemical resistance to water

-

-

Product properties, functions, componentsGeneral

Product property silicon-free

Yes

Yes

Product component strain relief

Yes

Yes

Standards, specifications, approvals

Certificate of suitability

• RoHS compliance

Yes

Yes

• UL approval

No

No

Standard for structured cabling

-

-
