PWM-Inverters Loher DYNAVERT T производства Siemens

Typical applications

• Chemical industry
• Power stations and utilities
• Plastic industry
• Basic materials industry
• Test stands
• Conveyor technology
• Applications in general machinery construction

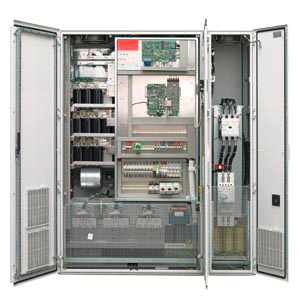

• Cabinet units and cabinet systems in IP21 or higher degrees of protection
• All of the drive units have their own connection space
• Compact dimensions
• Equipped with radio interference suppression
• Low harmonics fed back into the line supply
• Long motor cables can be used as a result of the integrated dv/dt filter
• Wide supply voltage range
• A main contactor is not required
• Drive units with 500 V and 690 V rated line supply voltage can be connected to non-grounded line supplies (IT line supplies)
• ATEX-certified motors for hazardous zones

Features

Explosion protection

• ATEX-certified for motors located in hazardous zones
• A main contactor is not required

Safe Torque Off

• The Safe Torque Off function prevents unexpected starting in compliance with EN 60204-1, implemented according to EN 954-1, Category 3

Power unit

• This corresponds to the EMC Directives (EN 61800-3 environment 2) as a result of the line filter integrated as standard
• Low harmonics fed back into the line supply as a result of the integrated line reactor
• Output filter to permit longer motor cables
• Insulation monitoring for IT line supplies for 500 / 690 V drive units as well as ground fault monitoring for TN and TT line supplies integrated in the 400 V drive units
• Wide supply voltage range
• Low motor noise and low drive inverter and motor losses as a result of the optimized pulse pattern
• Normal fuses can be used for protection (gL characteristic)

Control section

• High level of personnel and plant protection through protective separation between the analog and digital control peripheral and the power unit according to VDE 0106 / EN 50178

Operator control and setting

• Transparent operator control and setting using a menu-prompted 4-line plain text display with membrane keypad at the drive inverter – or up to 1,000 m away in the main control room via RS485
• Extensive functions using the Windows-based PC operator control program

Communication

• Communication via a conventional terminal strip with freely-programmable digital and analog inputs / outputs, with
  • parameterizable limit value signals
  • parameterizable timers
  • parameterizable damping elements
  • parameterizable drive inverter behavior when inputs / outputs respond
• Communication and parameterization via
  • PC using IMS (Inverter Management Software) via RS232 / RS485
  • external operator panel via RS485
  • bus systems such as Profibus DP or Modbus RTU

Drive behavior for DYNAVERT T

• Synchronous and asynchronous motors can be controlled
• Two closed-loop control types for induction motors:
  • field-oriented control for applications demanding a high dynamic performance
  • space-vector control for standard applications (without feedback)
• Optimum braking without supplementary equipment using super-saturation control

The following generally apply:

• Automatic slip compensation
• Stall protection using current limiting control
• Flying restart circuit to connect to a rotating motor
• Automatic adaptation of the overload times
• Parameterizable DC braking for precise braking down to standstill
• Closed-loop torque control
